Extreme Networks X-CM-00控制模块
1.产 品 资 料 介 绍：
- 型号属性：Enterasys X-CM-00 是 Extreme Networks 旗下的模块化交换机核心控制模块，为机箱式交换机提供中央处理与管理中枢，属于关键功能性模块。
- 硬件定位：采用专用控制芯片架构，集成数据转发引擎与管理接口，通常具备独立的处理器、内存及存储单元，为交换机整机提供运算与控制支撑。
- 关键特性：支持热插拔设计，可在交换机运行状态下更换，保障业务连续性；具备冗余部署能力，配合双控制模块配置可实现故障自动切换。
- 中枢控制：作为交换机 “大脑”，负责处理整机配置指令、数据转发策略及端口状态管理，协调 I/O 扩展模块与上行模块的协同运行。
- 管理支撑：搭载网络管理系统核心组件，支持 Web UI、CLI、SNMP 等多种管理方式，为端口镜像、VLAN 配置、流量监控等功能提供底层算力支持。
- 冗余保障：支持主备控制模块热备份，主模块故障时可在毫秒级切换至备模块，避免网络控制中断，提升核心层网络可靠性。
- 大型机箱式交换机：适配 Enterasys 高端模块化交换机机箱（如 S-Series 或 X-Series 机箱），作为核心控制单元部署于企业数据中心、园区网络核心层。
- 关键业务网络：用于政府、金融、能源等对稳定性要求极高的场景，通过双模块冗余配置保障核心网络控制不中断，支撑业务系统持续运行。
- 网络扩容升级：当原有控制模块性能不足或故障时，作为替换或升级模块，提升交换机的处理能力与管理效率。
Extreme Networks X-CM-00控制模块 英文资料：
1、 Quick overview of core parameters
Model attribute: Enterasys X-CM-00 is a modular switch core control module under Extreme Networks, providing a central processing and management hub for chassis switches, and is a critical functional module.
Hardware positioning: Adopting a dedicated control chip architecture, integrating a data forwarding engine and management interface, usually with independent processors, memory, and storage units, providing computing and control support for the entire switch.
Key features: Supports hot swappable design, can be replaced while the switch is running, ensuring business continuity; Equipped with redundant deployment capability, coupled with dual control module configuration, it can achieve automatic fault switching.
2、 Core functions and values
Central control: As the "brain" of the switch, responsible for processing machine configuration instructions, data forwarding strategies, and port status management, coordinating the coordinated operation of I/O expansion modules and upstream modules.
Management Support: Equipped with core components of the network management system, it supports various management methods such as Web UI, CLI, SNMP, etc., providing underlying computing power support for port mirroring, VLAN configuration, traffic monitoring, and other functions.
Redundancy guarantee: Supports hot backup of primary and backup control modules. In the event of a primary module failure, it can be switched to the backup module in milliseconds to avoid network control interruptions and improve the reliability of the core layer network.
3、 Typical use
Large chassis switch: Suitable for Enterasys high-end modular switch chassis (such as S-Series or X-Series chassis), deployed as the core control unit in enterprise data centers and campus network core layers.
Key Business Network: Used in scenarios such as government, finance, and energy that require high stability, the core network control is guaranteed to be uninterrupted through dual module redundant configuration, supporting the continuous operation of business systems.
Network expansion and upgrade: When the performance of the original control module is insufficient or faulty, it can be used as a replacement or upgrade module to improve the processing capacity and management efficiency of the switch.

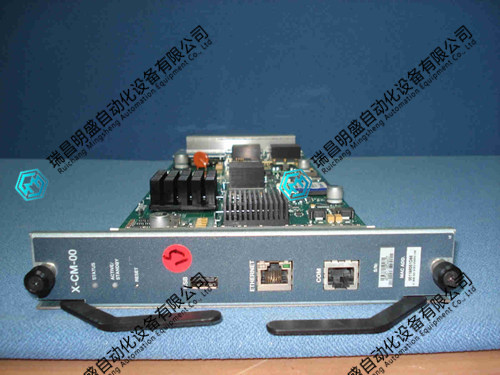

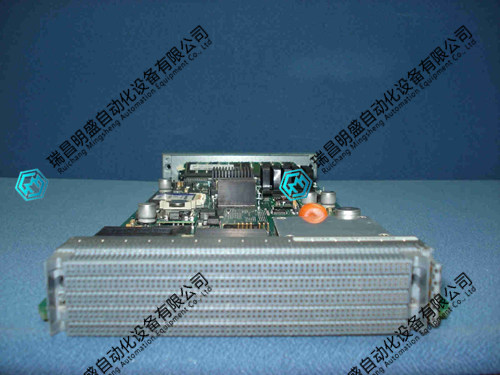

Extreme Networks X-CM-00控制模块 产品展示
产品视频
