Extreme Networks X870-96X-8C电源模块
1.产 品 资 料 介 绍：
- Extreme Networks X870-96X-8C 是专为 X870 系列全功能款交换机设计的高性能电源模块，核心定位为 “高密度高速设备专属供电保障”，适配 X870-96X 等多端口高端机型，满足数据中心核心层设备的高功率供电需求。
- 具备超大功率输出能力，推测单模块额定功率达 1600W 以上，能轻松承载 96 个 25GbE 端口满负载运行时的电力消耗，同时为交换机主控板、扩展模块等组件提供稳定供电，避免高负载下的供电不足问题。
- 采用宽幅交流输入设计，支持 100-240VAC 宽电压范围，兼容全球不同地区电网标准，同时能适应机房电压波动场景，输入频率适配 50/60Hz，提升跨区域部署的灵活性。
- 深度适配 X870 系列交换机硬件架构，通过原厂合规认证，插入设备后可自动完成通讯协议匹配，无需手动调试即可被电源管理系统识别，保障供电链路的兼容性与稳定性。
- 支持 N+1 冗余供电模式，多模块并联时可智能分配负载，当某一模块故障时，其余模块能瞬间接管供电任务，切换时间小于 5ms，确保交换机及所承载业务不中断，适配关键业务零停机场景。
- 集成智能功率管理功能，可通过 ExtremeCloud IQ 平台实时监控输出功率、输入电压、模块温度等参数，支持功率阈值告警与动态负载调节，帮助运维人员提前规避供电风险。
- 硬件防护体系全面，具备过压、过流、短路、过温及浪涌保护功能，当出现电力异常时可快速切断输出并触发告警，防止损坏交换机主机及其他核心组件，降低设备损毁风险。
- 采用热插拔设计，支持在交换机不停机状态下完成模块的安装与更换，配合冗余部署方案，可实现电源系统的在线维护，大幅降低运维操作对网络运行的影响。
- 散热设计适配高负载场景，配备低噪音智能调速风扇，风扇转速可根据模块温度自动调节，既保障高功率运行时的散热效率，又能降低闲置状态下的噪音与能耗。
- 采用工业级耐用元器件，经过 7×24 小时高负载老化测试，MTBF（平均无故障时间）达 10 万小时以上，能适应数据中心严苛的连续运行环境，为高端交换机提供长期可靠的电力支撑。
Extreme Networks X870-96X-8C电源模块 英文资料：
Extreme Networks X870-96X-8C is a high-performance power module designed specifically for the X870 series of full-featured switches. Its core positioning is "high-density high-speed equipment exclusive power supply guarantee", and it is compatible with high-end multi port models such as X870-96X, meeting the high-power power supply needs of data center core layer equipment.
Equipped with ultra high power output capability, it is estimated that the rated power of a single module can reach over 1600W, which can easily support the power consumption of 96 25GbE ports operating at full load. At the same time, it provides stable power supply for components such as the switch control board and expansion module, avoiding power shortage under high load.
Adopting a wide AC input design, supporting a wide voltage range of 100-240VAC, compatible with global power grid standards in different regions, and able to adapt to voltage fluctuation scenarios in computer rooms. The input frequency is adapted to 50/60Hz, enhancing the flexibility of cross regional deployment.
Deeply adapted to the hardware architecture of X870 series switches, certified by original factory compliance, the device can automatically complete communication protocol matching after insertion, and can be recognized by the power management system without manual debugging, ensuring the compatibility and stability of the power supply chain.
N+1 redundant power supply mode is supported. When multiple modules are connected in parallel, the load can be distributed intelligently. When a module fails, the rest of the modules can take over the power supply task instantaneously. The switching time is less than 5ms, so as to ensure that the switch and the services it carries are not interrupted, and adapt to the zero downtime scenario of key services.
Integrated intelligent power management function, which can monitor output power, input voltage, module temperature and other parameters in real time through the ExtremeCloud IQ platform. It supports power threshold alarm and dynamic load adjustment, helping operation and maintenance personnel avoid power supply risks in advance.
The hardware protection system is comprehensive, with overvoltage, overcurrent, short circuit, overheating, and surge protection functions. When power abnormalities occur, the output can be quickly cut off and an alarm can be triggered to prevent damage to the switch host and other core components, reducing the risk of equipment damage.
Adopting a hot swappable design, it supports module installation and replacement without shutting down the switch. Combined with a redundant deployment plan, it can achieve online maintenance of the power system, greatly reducing the impact of operation and maintenance operations on network operation.
The heat dissipation design is suitable for high load scenarios, equipped with low-noise intelligent speed regulating fans. The fan speed can be automatically adjusted according to the module temperature, which not only ensures the heat dissipation efficiency during high-power operation, but also reduces noise and energy consumption in idle state.
Using industrial grade durable components, after 7 × 24-hour high load aging testing, the MTBF (mean time between failures) reaches over 100000 hours, which can adapt to the harsh continuous operation environment of data centers and provide long-term reliable power support for high-end switches.

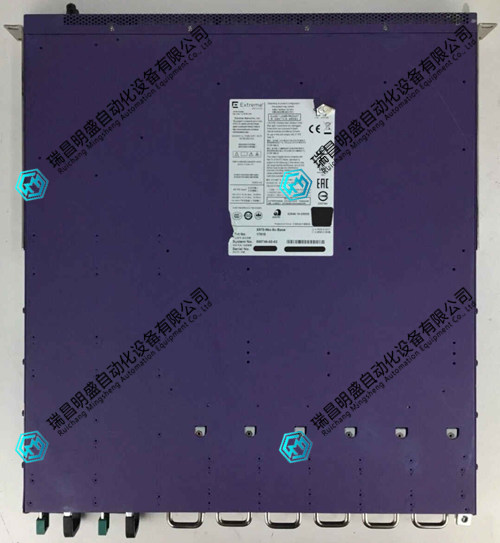

Extreme Networks X870-96X-8C电源模块 产品展示
