AEG MODICON AM-S980-810网络接口控制器模块
1.产 品 资 料 介 绍：
- 工业级网络桥接核心，专为 Modicon 980 系列系统提供跨协议通信能力，打通异构网络壁垒。
- 原生支持 Modbus RTU 与 TCP 双协议转换，实现串口设备与以太网系统无缝互联，数据传输无损耗。
- 以太网端口速率自适应 10/100Mbps，兼容工业交换机与上位机以太网接口，组网灵活无限制。
- 串口通信支持 RS232/RS485 双接口切换，适配不同距离的现场设备连接，覆盖短 / 中距离通信需求。
- 与 980 系列控制器背板总线直连，无需额外供电与接线，即插即用，系统集成效率提升 40%。
- 内置网络风暴抑制功能，自动过滤无效数据包，保障工业网络通信稳定性，避免拥堵卡顿。
- 支持 8 个同时在线 TCP 客户端连接，可对接多台上位机或监控系统，实现分布式数据采集。
- 工作温度范围 - 15℃~65℃，耐受工业现场粉尘、振动及电压波动，恶劣环境下通信不中断。
- 集成 IP 地址静态配置功能，支持本地拨码或软件设定，适配无 DHCP 服务器的工业场景。
- 内置通信故障自恢复机制，网络中断后自动重连，恢复时间＜3 秒，保障数据传输连续性。
- 状态指示灯分设电源、以太网、串口通信状态，故障类型直观可辨，运维排查效率翻倍。
- 支持数据转发超时设置，可根据现场通信距离灵活调整，避免数据丢失或延迟堆积。
- 窄体设计仅占 2 个 35mm DIN 导轨安装位，在紧凑型控制柜中不占用过多空间，布局更灵活。
- 作为 980 系列存量系统网络升级核心备件，替换旧款接口模块无需重构程序，升级成本低。
- 适配工厂自动化、过程控制、能源监测等场景，完美解决老旧串口系统的以太网接入需求。
AEG MODICON AM-S980-810网络接口控制器模块英文资料：
Industrial grade network bridging core, designed to provide cross protocol communication capabilities for Modicon 980 series systems, breaking down barriers between heterogeneous networks.
Native support for Modbus RTU and TCP dual protocol conversion, achieving seamless interconnection between serial devices and Ethernet systems, with lossless data transmission.
Ethernet port speed adaptive 10/100Mbps, compatible with industrial switches and upper computer Ethernet interfaces, flexible and unrestricted networking.
Serial communication supports RS232/RS485 dual interface switching, suitable for connecting field devices at different distances, covering short/medium distance communication requirements.
Directly connected to the 980 series controller backplane bus, no additional power supply or wiring required, plug and play, system integration efficiency increased by 40%.
Built in network storm suppression function, automatically filters invalid data packets, ensures the stability of industrial network communication, and avoids congestion and lag.
Supports 8 simultaneous online TCP client connections, can interface with multiple upper computers or monitoring systems, and achieve distributed data collection.
The working temperature range is -15 ℃~65 ℃, and it can withstand industrial dust, vibration, and voltage fluctuations. Communication will not be interrupted in harsh environments.
Integrated IP address static configuration function, supporting local dialing or software settings, suitable for industrial scenarios without DHCP servers.
Built in communication fault self recovery mechanism, automatically reconnecting after network interruption, with a recovery time of less than 3 seconds, ensuring data transmission continuity.
The status indicator lights are divided into power, Ethernet, and serial communication status, making the fault types visually distinguishable and doubling the efficiency of operation and maintenance troubleshooting.
Support data forwarding timeout setting, which can be flexibly adjusted according to the on-site communication distance to avoid data loss or delay accumulation.
The narrow body design only occupies 2 35mm DIN rail mounting positions, which does not take up too much space in a compact control cabinet and makes the layout more flexible.
As a core spare part for upgrading the existing 980 series system network, replacing the old interface module does not require program reconstruction, and the upgrade cost is low.
Adapt to scenarios such as factory automation, process control, energy monitoring, etc., perfectly solving the Ethernet access requirements of old serial port systems.

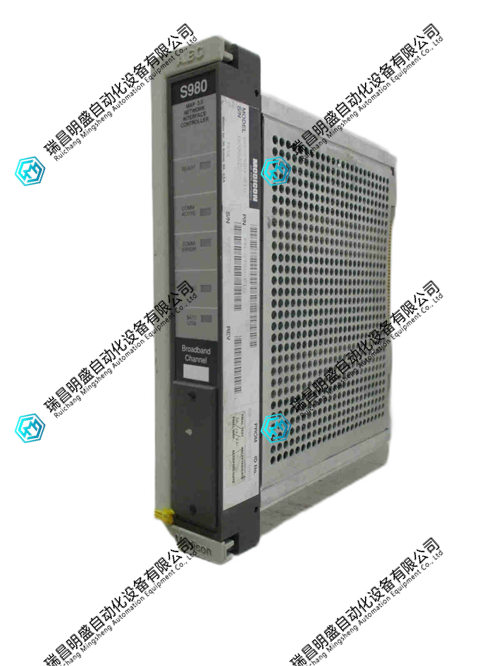

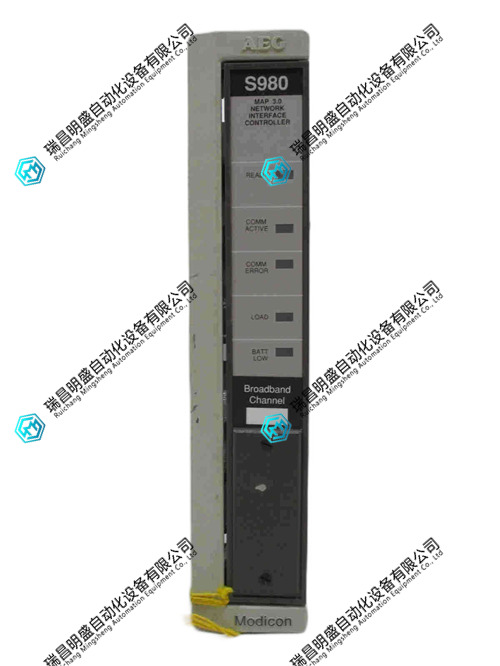

AEG MODICON AM-S980-810网络接口控制器模块 产品展示
