1.产 品 资 料 介 绍：
- DFY112LB/TH 采用永磁同步电机设计，额定功率可达 3.0kW，额定扭矩 19.1N・m，0-3000rpm 宽转速范围，适配中大功率精密驱动场景
- 搭载高精度增量式编码器，分辨率达 17 位（131072 脉冲 / 转），定位精度 ±0.01°，保障工业设备精准定位与轨迹控制
- 支持法兰安装与底座固定双重方式，112mm 标准法兰尺寸，适配各类机床、自动化设备安装布局，安装灵活度高
- DFY112LB/TH 防护等级达 IP65，金属外壳具备防尘防水特性，可直接部署于机械加工、自动化生产线等多粉尘工况
- 兼容 Modbus、EtherCAT、Profinet 等主流工业通信协议，与 PLC、运动控制器联动顺畅，数据传输延迟低至 1ms
- 工作温度覆盖 - 10℃~+60℃，耐受湿度 0~95%（无凝露），搭配 F 级绝缘设计，适配工业现场高低温波动环境
- DFY112LB/TH 具备过载保护、过流保护、过热保护等多重防护，150% 额定扭矩过载 60 秒，保障电机与负载安全运行
- 采用正弦波矢量控制技术，低速运行平稳无抖动，低速力矩波动≤±5%，满足精密设备低速进给需求
- 供电电压适配三相 AC 220V/380V，电压波动耐受 ±10%，应对工业电网波动能力强，无需额外稳压装置
- DFY112LB/TH 支持位置模式、速度模式、转矩模式三模式切换，可通过参数自由配置，适配不同工艺控制需求
- 电机机身采用高强度铝合金材质，重量轻且散热性能优异，连续运行温升≤80K，延长使用寿命
- 内置电磁制动功能，制动响应时间≤20ms，断电后快速锁轴，防止负载滑行，提升设备运行安全性
DFY112LB/TH伺服电机 英文资料：
DFY112LB/TH adopts a permanent magnet synchronous motor design, with a rated power of up to 3.0kW, a rated torque of 19.1N · m, and a wide speed range of 0-3000rpm, suitable for medium and high-power precision drive scenarios
Equipped with high-precision incremental encoder, with a resolution of 17 bits (131072 pulses/rev) and a positioning accuracy of ± 0.01 °, ensuring precise positioning and trajectory control of industrial equipment
Supports dual methods of flange installation and base fixation, with a standard flange size of 112mm, suitable for installation layouts of various machine tools and automation equipment, and high installation flexibility
The protection level of DFY112LB/TH reaches IP65, and the metal shell has dustproof and waterproof characteristics, which can be directly deployed in multi dust working conditions such as mechanical processing and automated production lines
Compatible with mainstream industrial communication protocols such as Modbus, EtherCAT, Profinet, etc., smoothly linked with PLC and motion controllers, with data transmission latency as low as 1ms
Working temperature coverage -10 ℃~+60 ℃, humidity tolerance 0~95% (no condensation), equipped with F-class insulation design, suitable for high and low temperature fluctuation environment in industrial sites
DFY112LB/TH has multiple protections such as overload protection, overcurrent protection, and overheating protection. It can withstand 150% rated torque overload for 60 seconds, ensuring safe operation of the motor and load
Adopting sine wave vector control technology, the low-speed operation is smooth without shaking, and the low-speed torque fluctuation is ≤± 5%, meeting the low-speed feed requirements of precision equipment
The power supply voltage is suitable for three-phase AC 220V/380V, with a voltage fluctuation tolerance of ± 10%. It has strong ability to cope with industrial power grid fluctuations and does not require additional voltage stabilizing devices
DFY112LB/TH supports position mode, speed mode and torque mode switching, which can be freely configured through parameters to adapt to different process control requirements
The motor body is made of high-strength aluminum alloy material, which is lightweight and has excellent heat dissipation performance. The continuous operating temperature rise is ≤ 80K, extending the service life
Built in electromagnetic braking function, braking response time ≤ 20ms, quickly locks the shaft after power failure to prevent load sliding and improve equipment operation safety

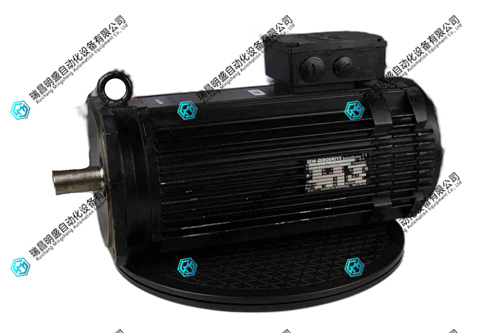

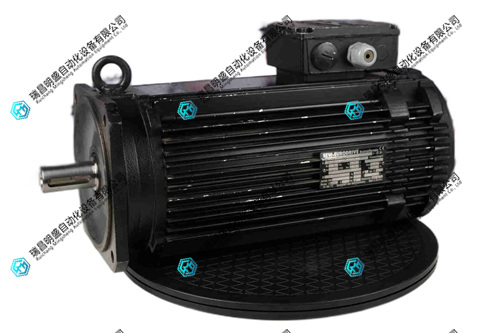

DFY112LB/TH伺服电机 产品展示
