1.产 品 资 料 介 绍：
- 1024G-90G-NG-J 采用每转 1024 脉冲高精度码盘设计，角分辨率达 0.3516°，可精准采集转速与角位移数据，适配精密控制场景
- 重载型铝制外壳构造，抗冲击强度达 50g、抗振性 10g，能承受工业现场重型负载轴驱动的机械应力，稳定性突出
- 支持空心轴安装方式，轴径适配范围广，搭配扭矩支架与联轴器，安装牢固且可抵消轴系偏差影响
- 1024G-90G-NG-J 防护等级达 IP67，具备尘密防水特性，可直接部署于多粉尘、潮湿的工业现场，无需额外防护措施
- 输出 HTL/TTL 双电平信号与 RS-422 差分信号，支持推挽输出模式，与 PLC、变频器等工控设备信号匹配度高，联动顺畅
- 工作温度覆盖 - 40℃~+85℃，耐受湿度 0~95%（无凝露），可适配高低温极端工况与海洋性大气环境
- 1024G-90G-NG-J 内置电气隔离与 EMC 电磁兼容设计，符合 CE 认证标准，抗电磁干扰能力强，在复杂工业电磁环境中稳定运行
- 供电电压范围宽达 9~30VDC，电压波动耐受 ±10%，应对工业电网波动能力强，无需额外稳压设备
- 具备轴电流防护功能，通过接地刷转移 IGBT 转换器产生的轴电流，避免码盘损坏，延长使用寿命
- 1024G-90G-NG-J 支持 A/B 相位差 90° 信号输出，可精准判断旋转方向，同时提供标记脉冲（R+），满足定位控制需求
- 模块化接线端子设计，接线牢固且防误插，后期维护时参数调整与线路检查便捷高效
- 符合 ISO 9001 与 UL 认证标准，享受 ZVEI 协会两年质保，工业级元器件选型保障长期可靠运行
- 1024G-90G-NG-J 广泛应用于钢铁轧制、港口起重机、风力发电、轨道交通等重载设备，适配多行业转速位置监测需求
1024G-90G-NG-J编码器 英文资料：

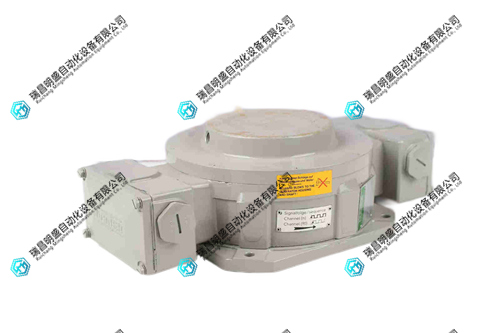

1024G-90G-NG-J adopts a high-precision encoder design with 1024 pulses per revolution, with an angular resolution of 0.3516 °, which can accurately collect speed and angular displacement data and adapt to precision control scenarios
The heavy-duty aluminum shell structure has an impact strength of 50g and a vibration resistance of 10g, and can withstand the mechanical stress of heavy load shaft drive in industrial sites, with outstanding stability
Supporting hollow shaft installation method, with a wide range of shaft diameter adaptability, and equipped with torque brackets and couplings, the installation is firm and can offset the influence of shaft system deviation
1024G-90G-NG-J has a protection level of IP67 and is dust tight and waterproof. It can be directly deployed in industrial sites with high dust and humidity without the need for additional protective measures
Output HTL/TTL dual level signal and RS-422 differential signal, support push-pull output mode, high matching with industrial control equipment signals such as PLC and frequency converter, smooth linkage
Working temperature coverage -40 ℃~+85 ℃, humidity tolerance 0~95% (no condensation), adaptable to extreme high and low temperature conditions and marine atmospheric environments
1024G-90G-NG-J has built-in electrical isolation and EMC electromagnetic compatibility design, which meets CE certification standards and has strong anti electromagnetic interference ability. It can operate stably in complex industrial electromagnetic environments
The power supply voltage range is wide up to 9-30VDC, with a voltage fluctuation tolerance of ± 10%. It has strong ability to cope with industrial power grid fluctuations and does not require additional voltage stabilizing equipment
Equipped with shaft current protection function, the shaft current generated by the IGBT converter is transferred through the grounding brush to avoid damage to the code wheel and extend its service life
1024G-90G-NG-J supports A/B phase difference of 90 ° signal output, which can accurately determine the rotation direction and provide marking pulses (R+) to meet the positioning control requirements
Modular wiring terminal design, firm and error proof wiring, convenient and efficient parameter adjustment and circuit inspection during later maintenance
Compliant with ISO 9001 and UL certification standards, enjoying a two-year warranty from ZVEI Association, industrial grade component selection ensures long-term reliable operation
1024G-90G-NG-J is widely used in heavy-duty equipment such as steel rolling, port cranes, wind power generation, and rail transit, and is suitable for speed and position monitoring needs in multiple industries
