1.产 品 资 料 介 绍：

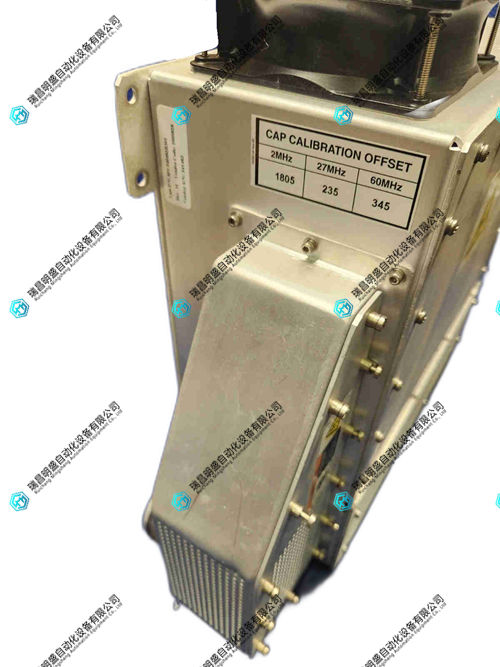

- 宽域阻抗精准匹配：853-040482-301 支持 5~200Ω 阻抗实部与 ±200jΩ 虚部调节，可实现 50Ω/75Ω 标准阻抗转换，消除信号反射确保最大功率传输。
- 毫秒级快速匹配响应：采用自适应匹配算法与在线实时测量技术，端对端匹配时间＜5s，预设点切换匹配仅需 0.5~3s，适配等离子体等动态负载场景。
- 多频段兼容设计：工作频率覆盖 2MHz~100MHz，兼容 13.56MHz、27.12MHz 等主流工业频段，满足半导体、光伏制造等多工艺需求。
- 低反射功率优化：电压驻波比（VSWR）＜1.2，反射系数控制在 - 10dB 以下，反射功率低于入射功率 1%，显著提升射频能量利用效率。
- 三重工作模式切换：支持自动 / 手动 / 预设三种独立模式，自动模式持续补偿负载阻抗变化，预设模式可快速启动匹配，适配不同操作场景需求。
- 高功率稳定承载：额定承载功率达 5kW，射频输出电压峰值 4000V，电流 25~40Arms，满足高功率射频系统的匹配需求。
- 强化抗干扰设计：集成 π 型滤波拓扑结构，带外抑制＞15dB，反向隔离度 20dB@2.4GHz，降低噪声干扰提升系统信噪比。
- 宽温域可靠运行：工作温度范围 - 40℃~+70℃，采用真空电容与高稳定性元器件，适应工业现场极端环境，使用寿命长。
- 智能监控通讯功能：集成 RS485/EtherNET 通讯接口，可实时上传匹配状态、反射功率等数据，支持上位机远程控制与参数配置。
- 多标准合规认证：符合 IEC/EN 62368-1 安全标准与 GB/T35770-2022 合规要求，通过 EMC 电磁兼容认证，适配全球工业场景部署。
853-040482-301 RF匹配MOK模块 英文资料：
Wide range impedance precise matching: 853-040482-301 supports adjustment of the real and imaginary parts of impedance from 5 to 200 Ω, and can achieve 50 Ω/75 Ω standard impedance conversion to eliminate signal reflection and ensure maximum power transmission.
Millisecond level fast matching response: using adaptive matching algorithm and online real-time measurement technology, the end-to-end matching time is less than 5s, and the preset point switching matching only takes 0.5-3s, suitable for dynamic load scenarios such as plasma.
Multi band compatible design: The operating frequency covers 2MHz~100MHz, compatible with mainstream industrial frequency bands such as 13.56MHz and 27.12MHz, meeting the needs of multiple processes such as semiconductor and photovoltaic manufacturing.
Low reflection power optimization: Voltage Standing Wave Ratio (VSWR)<1.2, reflection coefficient controlled below -10dB, reflection power 1% lower than incident power, significantly improving RF energy utilization efficiency.
Triple working mode switching: supports three independent modes: automatic/manual/preset. The automatic mode continuously compensates for changes in load impedance, while the preset mode can quickly start matching and adapt to different operating scenarios.
High power stable load capacity: The rated load capacity reaches 5kW, with a peak RF output voltage of 4000V and a current of 25-40Vrms, meeting the matching requirements of high-power RF systems.
Enhanced anti-interference design: Integrated π - type filtering topology, out of band suppression>15dB, reverse isolation 20dB@2.4GHz Reduce noise interference and improve system signal-to-noise ratio.
Wide temperature range reliable operation: Operating temperature range -40 ℃~+70 ℃, using vacuum capacitors and high stability components, suitable for extreme industrial environments, with a long service life.
Intelligent monitoring communication function: Integrated RS485/EtherNET communication interface, can upload real-time matching status, reflected power and other data, supports remote control and parameter configuration on the upper computer.
Multi standard compliance certification: Complies with IEC/EN 62368-1 safety standards and GB/T335770-2022 compliance requirements, passes EMC electromagnetic compatibility certification, and is compatible with global industrial deployment scenarios.
