1.产 品 资 料 介 绍：
- 宽频段精准输出：3152419-206 工作频率覆盖 150kHz~3GHz，频率分辨率达 10Hz，支持 - 127dBm~13dBm 宽幅功率调节，适配多场景射频信号需求。
- 智能阻抗匹配系统：内置自动阻抗匹配算法，可动态补偿 50Ω 标准负载阻抗偏差，电压驻波比（VSWR）＜1.2，最大化功率传输效率。
- 多模式调制功能：支持 AM/FM/PM 模拟调制与 ASK/FSK/PSK 等数字调制，兼容连续波与触发模式，满足射频测试、通信验证等差异化场景。
- 三重远程控制接口：集成 USB、LAN（MODBUS-TCP）及 RS485（MODBUS-RTU）接口，支持 SCPI 指令集，可无缝接入自动化测试系统。
- 高频稳定运行设计：采用高稳定性晶振与锁相环技术，频率稳定度达 ±0.1ppm/℃，3 小时功率稳定性优于 0.88% RMS，信号输出一致性强。
- 全维度安全防护：内置过功率、过温、驻波保护功能，当反射功率超标或温度异常时自动降额，符合 EN 60215 电气安全标准。
- 宽温域环境适配：工作温度范围 - 20℃~+65℃，支持 2000 米高海拔运行，适应实验室与工业现场复杂环境，防护等级达 IP54。
- 高电磁兼容性能：通过 EN 55032 B 级电磁兼容认证，辐射与传导干扰低，避免对周边敏感电子设备造成信号干扰。
- 多标准合规认证：符合 CE、UL 及 ROHS 认证要求，满足欧盟 RED 指令频谱使用规范，适配全球主要市场准入需求。
- 紧凑型集成设计：采用模块化封装工艺，体积小巧且支持导轨式安装，搭配图形化操作界面，部署与运维便捷高效。
3152419-206射频发电机 英文资料：
Wide band precise output: The working frequency of 3152419-206 covers 150kHz~3GHz, with a frequency resolution of 10Hz. It supports wide range power adjustment of -127dBm~13dBm and is suitable for multi scene RF signal requirements.
Intelligent impedance matching system: Built in automatic impedance matching algorithm, can dynamically compensate for 50 Ω standard load impedance deviation, voltage standing wave ratio (VSWR)<1.2, maximizing power transmission efficiency.
Multi mode modulation function: Supports AM/FM/PM analog modulation and digital modulation such as ASK/FSK/PSK, compatible with continuous wave and trigger modes, meeting differentiated scenarios such as RF testing and communication verification.
Triple remote control interface: integrates USB, LAN (MODBUS-TCP), and RS485 (MODBUS-RTU) interfaces, supports SCPI instruction set, and can seamlessly integrate into automated testing systems.
High frequency stable operation design: using high stability crystal oscillator and phase-locked loop technology, the frequency stability reaches ± 0.1ppm/℃, the power stability is better than 0.88% RMS for 3 hours, and the signal output consistency is strong.
Full dimensional safety protection: Built in over power, over temperature, and standing wave protection functions, automatically derating when the reflected power exceeds the standard or the temperature is abnormal, in compliance with EN 60215 electrical safety standards.
Wide temperature range environment adaptation: Working temperature range -20 ℃~+65 ℃, supports operation at an altitude of 2000 meters, adapts to complex environments in laboratories and industrial sites, with a protection level of IP54.
High electromagnetic compatibility performance: Passed EN 55032 B-level electromagnetic compatibility certification, with low radiation and conducted interference, avoiding signal interference to sensitive electronic devices in the surrounding area.
Multi standard compliance certification: meets CE, UL, and ROHS certification requirements, complies with the EU RED directive spectrum usage specifications, and adapts to major global market access needs.
Compact integrated design: adopting modular packaging technology, with a small size and support for rail mounted installation, coupled with a graphical operation interface, deployment and operation are convenient and efficient.

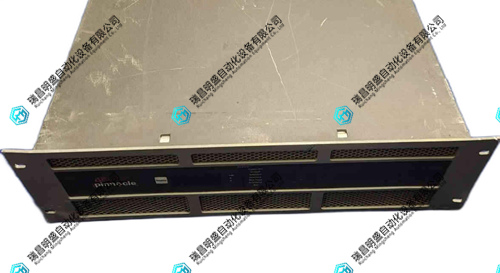

3152419-206射频发电机 产品展示
