AWCII 040 CPU模块

AWCII 040 CPU模块

1.产 品 资 料 介 绍：

核心规格与特性

1. 处理器：搭载 Motorola 68040 微处理器，主频 25MHz。
2. 架构规格：单槽 6U VME 标准工业总线模块。
3. 内存：标配 4MB 或 8MB DRAM（出厂固化，不可现场升级）。
4. 通信接口
   • 1 路 以太网 接口
   • 1 路 RS-422 串口
   • 2 路 RS-232 串口
5. 功能定位：作为 Adept MV 控制器 的主运算核心，执行运动控制、逻辑处理、I/O 调度与系统监控。
6. 物理特性：尺寸约 26.1cm × 17.2cm × 2cm，重约 0.4kg。
7. 工作环境：工业级设计，适应宽温、高振动的自动化产线环境。
8. 系统兼容：专用于 ADEPT 机器人控制系统，支持多轴联动与精密轨迹运算。
9. 可靠性：无风扇、固态电路设计，适合 7×24 小时 连续运行。
10. 应用领域：广泛用于 电子装配、物料搬运、包装、点焊 等工业机器人场景。
11. 状态：该型号已停产（DISCONTINUED），目前以备件与二手市场流通为主。

功能简述

AWCII 040 CPU模块 英文资料：

AWCII-040 (AWCII-040) is a high-performance VME bus CPU processor module launched by ADEPT (USA), designed specifically for the Adept MV series robot controller. As the main processor of the system, it provides high-speed computing and multi device communication capabilities.

Core specifications and features

Processor: Equipped with Motorola 68040 microprocessor, with a main frequency of 25MHz.

Architecture specification: Single slot 6U VME standard industrial bus module.

Memory: Comes standard with 4MB or 8MB DRAM (factory fixed, not upgradable on-site).

communication interface

1 Ethernet interface

1 RS-422 serial port

2-channel RS-232 serial port

Functional positioning: As the main computing core of the Adept MV controller, it performs motion control, logic processing, I/O scheduling, and system monitoring.

Physical characteristics: The size is approximately 26.1cm × 17.2cm × 2cm, and the weight is approximately 0.4kg.

Work environment: Industrial grade design, suitable for an automated production line environment with wide temperature range and high vibration.

System compatibility: Dedicated to ADEPT robot control system, supporting multi axis linkage and precision trajectory calculation.

Reliability: Fanless, solid-state circuit design, suitable for 7 × 24-hour continuous operation.

Application areas: Widely used in industrial robot scenarios such as electronic assembly, material handling, packaging, spot welding, etc.

Status: This model has been discontinued and is currently mainly circulated in the spare parts and second-hand market.

Functional Overview

This module is the computing heart of the ADEPT robot system, responsible for parsing motion instructions, executing control algorithms, managing external I/O, and achieving high-speed communication with the upper computer, teaching pendant, sensors, and servo drive through multiple serial ports and Ethernet, ensuring the accuracy, speed, and stability of robot actions.

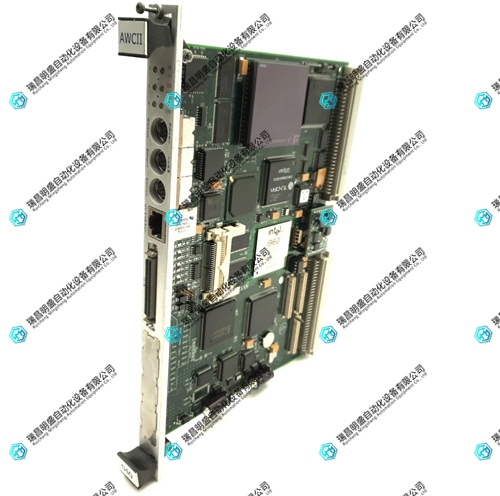

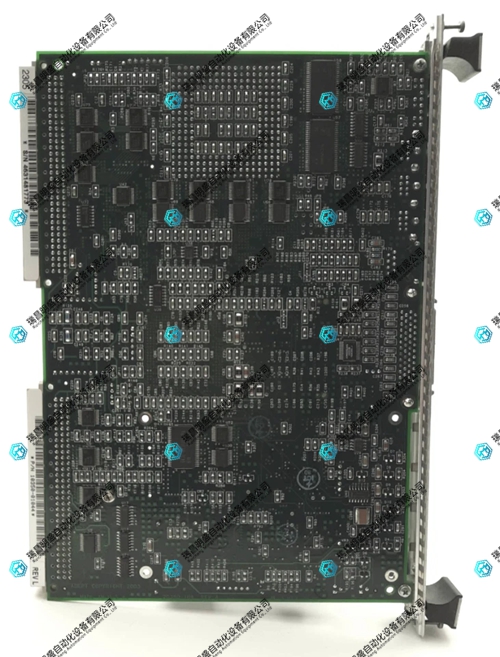

AWCII 040 CPU模块 产品展示

产品视频
