KEBA CU312/E编程式处理器

KEBA  CU312/E编程式处理器

1.产 品 资 料 介 绍：

1. 核心定位：KeControl 系列中型主控制器，用于复杂自动化系统的中央运算与协调指挥。
2. 处理器：32 位高性能嵌入式工业 CPU（ARM 架构），主频约 400MHz，带专用浮点运算单元。
3. 内存配置：128MB RAM（运行内存）+ 256MB/512MB Flash（程序存储）。
4. 实时系统：搭载 KEBA 实时操作系统，确保微秒级控制响应与任务确定性。
5. 运动控制：内置多轴控制芯片，支持64 轴伺服闭环控制，最小任务周期125µs。
6. 运动功能：支持电子齿轮、电子凸轮、飞剪、CNC 插补、位置 / 速度 / 扭矩闭环。
7. 通信接口：双路以太网（EtherCAT 主站 + TCP/IP）、双路 CANopen、USB、RS-232。
8. 现场总线：原生支持 EtherCAT、CANopen，可选 PROFINET、Modbus 等协议。
9. I/O 扩展：通过背板总线或 EtherCAT 扩展本地 / 远程 I/O（如 DI/DO/AI/AO 模块）。
10. 编程环境：支持 IEC 61131-3 标准语言（LD/FBD/ST/SFC），使用 KeStudio 开发。
11. 安全功能：可选支持 FSoE (EtherCAT 安全)，实现安全停、安全限速等功能。
12. 诊断能力：板载 LED 状态灯，支持模块自检、通道诊断、断线检测与故障记录。
13. 电气规格：24V DC 供电（15–30V），功耗约 12W，具备过压、反接保护。
14. 工业环境：工作温度 -20°C 至 +60°C，IP20 防护，高抗振、抗干扰（符合 EMC 标准）。
15. 应用领域：注塑机（KePlast）、包装机械、机器人控制器、纺织机械、自动化生产线。

KEBA  CU312/E编程式处理器  产品英文

KEBA CU312/E is a central processing unit (CPU card) of the KeControl series from KEBA, an Austrian company. It is designed specifically for mid to high end industrial automation equipment and integrates logic control, multi axis motion control, and real-time communication. It is the core control unit of injection molding machines, packaging machinery, robots, and other equipment.

Core positioning: KeControl series medium-sized main controller, used for central computing and coordinated command of complex automation systems.

Processor: 32-bit high-performance embedded industrial CPU (ARM architecture) with a clock speed of approximately 400MHz and a dedicated floating-point arithmetic unit.

Memory configuration: 128MB RAM (running memory)+256MB/512MB Flash (program storage).

Real time system: equipped with KEBA real-time operating system, ensuring microsecond level control response and task certainty.

Motion control: Built in multi axis control chip, supports 64 axis servo closed-loop control, with a minimum task cycle of 125 µ s.

Sports function: Supports electronic gears, electronic camshafts, flying shears, CNC interpolation, position/speed/torque closed-loop.

Communication interface: Dual Ethernet (EtherCAT master station+TCP/IP), Dual CANopen, USB, RS-232.

Fieldbus: Native support for EtherCAT, CANopen, optional protocols such as PROFINET, Modbus, etc.

I/O Expansion: Expand local/remote I/O (such as DI/DO/AI/AO modules) through backplane bus or EtherCAT.

Programming environment: Supports IEC 61131-3 standard language (LD/FBD/ST/SFC), developed using KeStudio.

Security Function: Optional support for FSoE (EtherCAT Security), achieving functions such as safe stop and safe speed limit.

Diagnostic capability: Onboard LED status light, supporting module self-test, channel diagnosis, disconnection detection, and fault recording.

Electrical specifications: 24V DC power supply (15-30V), power consumption of about 12W, with overvoltage and reverse connection protection.

Industrial environment: Operating temperature range of -20 ° C to+60 ° C, IP20 protection, high anti vibration and anti-interference (compliant with EMC standards).

Application areas: Injection molding machines (KePlast), packaging machinery, robot controllers, textile machinery, automated production lines.

CU312/E is known for its high real-time performance, strong motion control capability, and high stability. It is a classic model that has been discontinued. Currently, the market mainly consists of disassembled and repaired parts, which are key spare parts for upgrading and repairing old KEBA systems.

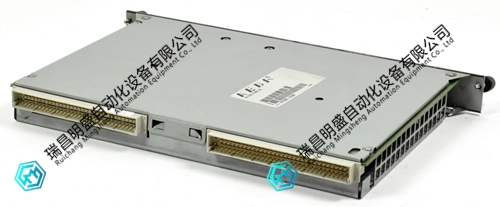

KEBA  CU312/E编程式处理器   产品展示
