LOAD CONTROLS INC PH-3A-HG 过滤器模块

LOAD CONTROLS INC PH-3A-HG 过滤器模块

1.产 品 资 料 介 绍：

产品核心参数与特点

1. 型号定位：PH-3A 系列 HG 规格，一体式功率传感 / 信号转换模块，内置电流 / 电压采样、滤波与变送电路。
2. 电气规格：适配 208–460V 三相电机，额定电流 4.2A，支持宽压工业电网。
3. 测量原理：无外置 CT/PT，直接钳位式采样，实时监测电机有功功率与负载百分比。
4. 信号输出：标准 4–20mA 模拟量（负载 / 功率正比），兼容 PLC、DCS、记录仪与上位机。
5. 滤波特性：HG 代表 高滤波（High Grade），抑制电机谐波、电磁干扰，输出稳定平滑。
6. 响应速度：响应时间约 15ms，快速捕捉负载波动，适合动态工况监测。
7. 精度指标：测量精度 ±0.5%、重复性优异，满足工业精准负载控制要求。
8. 安装方式：紧凑型模块，导轨 / 面板安装，尺寸约 23×11×3cm，重量约 0.6kg。
9. 输出阻抗：4–20mA 模式 500Ω、0–10V 模式 2kΩ，适配主流控制系统。
10. 工作环境：温度 -20°C~+55°C、湿度 0–95%（无凝露），工业级稳定可靠。
11. 防护等级：封闭式金属外壳，抗粉尘、抗电磁干扰，适合车间恶劣现场。
12. 应用场景：机床主轴负载、泵 / 风机能耗监测、电机过载保护、破碎 / 输送设备堵转检测。
13. 接线便捷：端子直连三相电源与输出，无需额外传感器，现场调试简单。
14. 功能扩展：支持负载上下限报警、功率累计、趋势记录，配合上位机实现能耗管理。
15. 耐用性：无活动部件、免维护，平均无故障时间长，适合 24 小时连续运行。

LOAD CONTROLS INC PH-3A-HG 过滤器模块 产品英文

Load Controls INC PH-3A-HG is a PH-3 series integrated power sensing module (Power Cell) produced by Load Controls in the United States. Its core is used for three-phase motor load monitoring, power conversion, and signal filtering output. It is widely used for load monitoring, overload protection, and energy consumption analysis of equipment such as machine tools, pumps, fans, and compressors.

Core parameters and characteristics of the product

Model positioning: PH-3A series HG specification, integrated power sensing/signal conversion module, built-in current/voltage sampling, filtering and transmission circuit.

Electrical specifications: Suitable for 208-460V three-phase motors, rated current 4.2A, supporting wide voltage industrial power grids.

Measurement principle: No external CT/PT, direct clamp sampling, real-time monitoring of motor active power and load percentage.

Signal output: Standard 4-20mA analog quantity (load/power proportional), compatible with PLC, DCS, recorder and upper computer.

Filtering characteristics: HG represents High Grade filtering, which suppresses motor harmonics and electromagnetic interference, and provides stable and smooth output.

Response speed: The response time is about 15ms, quickly capturing load fluctuations and suitable for dynamic condition monitoring.

Accuracy index: Measurement accuracy of ± 0.5%, excellent repeatability, meeting the requirements of industrial precision load control.

Installation method: Compact module, rail/panel installation, size approximately 23 × 11 × 3cm, weight approximately 0.6kg.

Output impedance: 500 Ω in 4-20mA mode, 2k Ω in 0-10V mode, suitable for mainstream control systems.

Working environment: temperature -20 ° C~+55 ° C, humidity 0-95% (no condensation), industrial grade stable and reliable.

Protection level: Enclosed metal shell, resistant to dust and electromagnetic interference, suitable for harsh workshop environments.

Application scenarios: Machine tool spindle load, pump/fan energy consumption monitoring, motor overload protection, crushing/conveying equipment blockage detection.

Convenient wiring: The terminals are directly connected to the three-phase power supply and output, without the need for additional sensors, making on-site debugging simple.

Function extension: Supports load upper and lower limit alarm, power accumulation, trend recording, and cooperates with the upper computer to achieve energy consumption management.

Durability: No moving parts, maintenance free, long average time between failures, suitable for 24-hour continuous operation.

ending

PH-3A-HG, with its core advantages of high filtering, high precision, integrated design, and maintenance free, is a mature solution for industrial motor load monitoring and power signal transmission, especially suitable for working conditions with strong harmonic interference and stable output requirements.

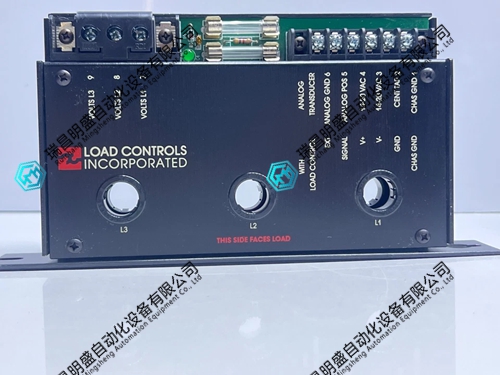

LOAD CONTROLS INC PH-3A-HG 过滤器模块   产品展示
