1.产 品 资 料 介 绍：
Siemens 6DD1682-0BC3 运动控制模块框架
- 专为 SIMADYN D 高端控制系统设计，标准运动控制框架模块。
- 用于承载各类子模块，实现控制信号集中分配与管理。
- 支持速度、位置、转矩全闭环运动控制，精度高、动态性能好。
- 提供稳定背板总线，保证模块间高速数据传输。
- 集成多路信号接口，适配编码器、执行器等外部设备。
- 模块化结构设计，插拔式安装，扩展灵活。
- 具备电气隔离设计，抗干扰能力强，适合工业恶劣环境。
- 支持多轴协同控制，可实现高精度同步运行。
- 自带状态指示功能，便于运行监控与故障诊断。
- 工业级硬件设计，抗震、耐温、长期运行稳定。
- 与 SIMADYN D 全系列 CPU、通信模块高度兼容。
- 内部布线规范，减少外部接线，降低故障点。
- 结构坚固紧凑，适合控制柜内标准安装。
- 主要应用于冶金、轧钢、造纸、大功率传动等领域。
- 目前以原装、二手、翻新备件为主，用于老系统维护替换。
Siemens 6DD1682-0BC3 运动控制模块框架 产品英文
Siemens 6DD1682-0BC3 Motion Control Module Framework
Siemens 6DD1682-0BC3 is a motion control module framework specifically designed for SIMADYN D systems. It is mainly used to carry motion control sub modules, achieve multi axis closed-loop regulation, and high-speed signal processing. It is the core carrying unit of large-scale transmission control systems.
Specially designed for SIMADYN D high-end control systems, with standard motion control framework modules.
Used to carry various submodules and achieve centralized distribution and management of control signals.
Supports full closed-loop motion control of speed, position, and torque, with high accuracy and good dynamic performance.
Provide a stable backplane bus to ensure high-speed data transmission between modules.
Integrate multiple signal interfaces and adapt to external devices such as encoders and actuators.
Modular structure design, plug-in installation, flexible expansion.
Equipped with electrical isolation design, strong anti-interference ability, suitable for harsh industrial environments.
Support multi axis collaborative control, enabling high-precision synchronous operation.
Equipped with status indication function, it is convenient for operation monitoring and fault diagnosis.
Industrial grade hardware design, earthquake resistant, temperature resistant, and stable long-term operation.
Highly compatible with the entire range of SIMADYN D CPUs and communication modules.
Internal wiring specifications reduce external wiring and minimize fault points.
The structure is sturdy and compact, suitable for standard installation inside control cabinets.
Mainly used in metallurgy, steel rolling, papermaking, high-power transmission and other fields.
At present, we mainly use original, second-hand, and refurbished spare parts for the maintenance and replacement of old systems.
In summary, 6DD1682-0BC3 has a reliable structure, strong compatibility, and flexible expansion, providing a stable motion control hardware platform for SIMADYN D systems. It is a key module for the maintenance and upgrade of large-scale industrial transmission equipment

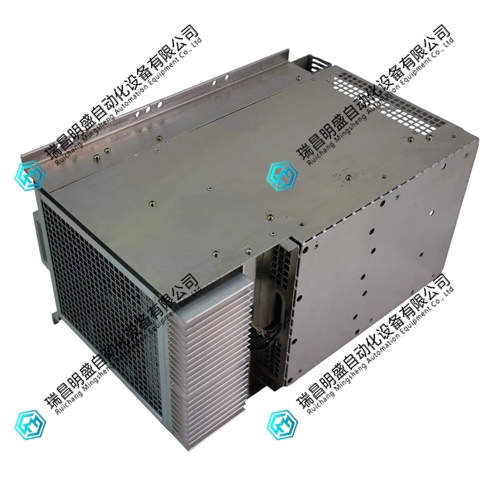

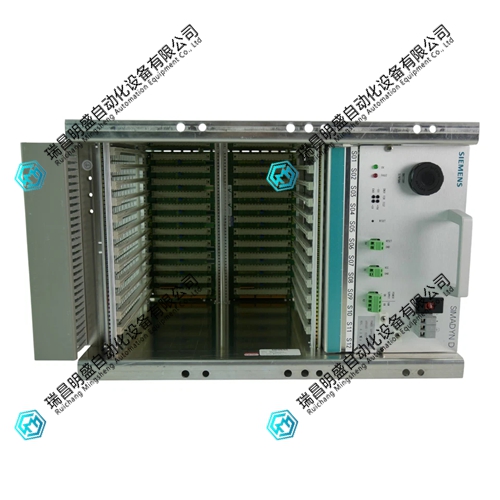

Siemens 6DD1682-0BC3 运动控制模块框架 产品展示
