Siemens 6DS1722-8BA分析器模块

Siemens 6DS1722-8BA分析器模块

1.产 品 资 料 介 绍：

1. 适配西门子 Teleperm ME 与 SIMADYN D 控制系统，为模拟量运算核心单元
2. 定位为模拟算术模块，专注工业过程信号实时运算与处理
3. 支持多通道模拟量输入，适配电压、电流等工业标准信号
4. 内置高精度运算单元，运算精度达 ±0.1% 满量程，保障计算可靠性
5. 可执行加减乘除、比例、积分、微分等复杂模拟运算
6. 采用 16 位数据处理精度，满足工业控制精细运算需求
7. 通道间电气隔离，有效抑制工业现场电磁干扰
8. 支持信号滤波与线性化处理，适配非线性传感器信号
9. 具备超量程、运算溢出、断线等多重故障诊断功能
10. 采用 24V DC 工业标准供电，功耗低、运行稳定
11. 工作温度范围 - 25℃～+60℃，适应严苛工业环境
12. 模块尺寸紧凑（约 5.1×20.3×25.4cm），重量约 0.4kg，便于机柜安装
13. 支持背板总线通信，与系统其他模块无缝数据交互
14. 防护等级 IP20，需安装于控制柜内，防尘防滴
15. 广泛应用于电力、冶金、化工等行业的过程控制与信号运算场景

Siemens 6DS1722-8BA分析器模块 产品英文

Siemens 6DS1722-8BA Analyzer Module

Compatible with Siemens Teleperm ME and SIMADYN D control systems, serving as the core unit for analog computing

Positioned as an analog arithmetic module, focusing on real-time operation and processing of industrial process signals

Support multi-channel analog input and adapt to industrial standard signals such as voltage and current

Built in high-precision computing unit with an accuracy of ± 0.1% of full scale, ensuring calculation reliability

Can perform complex simulation operations such as addition, subtraction, multiplication, division, proportionality, integration, differentiation, etc

Adopting 16 bit data processing accuracy to meet the precise operation requirements of industrial control

Electrical isolation between channels effectively suppresses electromagnetic interference in industrial sites

Support signal filtering and linearization processing, suitable for nonlinear sensor signals

Equipped with multiple fault diagnosis functions such as over range, operation overflow, and disconnection

Powered by 24V DC industrial standard, with low power consumption and stable operation

Working temperature range -25 ℃~+60 ℃, suitable for harsh industrial environments

The module has a compact size (approximately 5.1 × 20.3 × 25.4cm) and weighs about 0.4kg, making it easy to install in the cabinet

Support backplane bus communication and seamless data interaction with other modules in the system

Protection level IP20, to be installed inside the control cabinet, dust-proof and drip proof

Widely used in process control and signal operation scenarios in industries such as power, metallurgy, and chemical engineering

The Siemens 6DS1722-8BA is a key module for analog signal processing and computation in the Teleperm ME system, thanks to its high-precision operation, strong anti-interference ability, and stable adaptability.

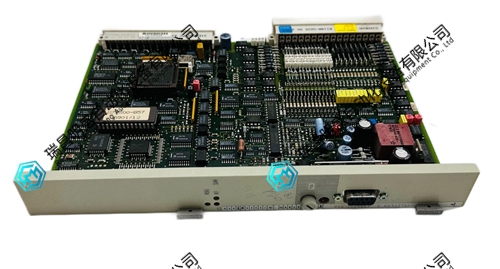

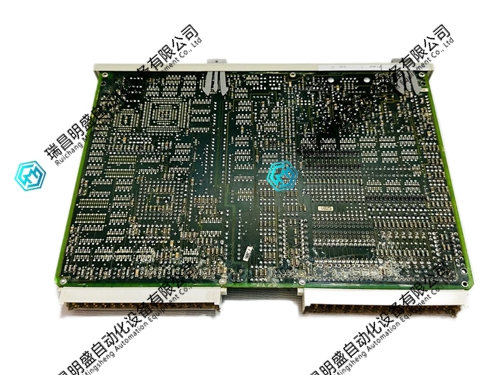

Siemens 6DS1722-8BA分析器模块 产品展示
