Siemens 6ES5470-8MC12分析输出模块

Siemens 6ES5470-8MC12分析输出模块

1.产 品 资 料 介 绍：

1. 属于 SIMATIC S5 系列模拟电流输出模块，为工业过程控制提供高精度 4–20mA 信号输出。
2. 适配 S5-90U/-95U/-100U、ET 100U、ET 200U 等 PLC 系统，兼容性强。
3. 提供2 路独立模拟电流输出通道，标准量程 4–20mA，适配阀门、变送器等执行机构。
4. 采用浮地 / 电气隔离设计，通道间与系统侧完全隔离，抑制工业电磁干扰。
5. 输出精度高、稳定性好，满足过程控制中流量、压力、液位等参数的精准调节需求。
6. 由背板总线DC 24V 供电，单通道最大电流消耗约 100mA，功耗低、运行可靠。
7. 工作温度范围 **-25℃～+70℃**，存储温度 - 40℃～+85℃，适应严苛工业环境。
8. 防护等级IP20，需安装于控制柜内，防尘防接触，保障运行安全。
9. 模块结构紧凑，重量约0.33kg，适配标准 19 英寸机柜与背板总线安装。
10. 支持 S5 系统背板总线通信，与 CPU、I/O 模块无缝数据交互，响应快速。
11. 具备输出短路、过载保护功能，提升模块与现场设备的运行安全性。
12. 德国原产，工业级元器件，长期运行稳定性高，适配老旧系统升级与维护。
13. 接线端子设计规范，布线简洁，便于现场安装与后期维护检修。
14. 符合 IEC 工业电磁兼容标准，可在强干扰工业场景稳定输出信号。
15. 广泛应用于电力、冶金、化工、制造等行业的 S5 系统过程控制与执行器驱动场景。

Siemens 6ES5470-8MC12分析输出模块 产品英文

Siemens 6ES5470-8MC12 Analysis Output Module

Belonging to the SIMATIC S5 series analog current output module, it provides high-precision 4-20mA signal output for industrial process control.

Compatible with PLC systems such as S5-90U/-95U/-100U, ET 100U, ET 200U, etc., with strong compatibility.

Provide 2 independent analog current output channels, with a standard range of 4-20mA, suitable for actuators such as valves and transmitters.

Adopting a floating ground/electrical isolation design, the channels are completely isolated from the system side to suppress industrial electromagnetic interference.

High output accuracy and good stability, meeting the precise adjustment requirements of flow rate, pressure, liquid level and other parameters in process control.

Powered by the backplane bus DC 24V, the maximum current consumption of a single channel is about 100mA, with low power consumption and reliable operation.

The working temperature range is * * -25 ℃~+70 ℃ * *, and the storage temperature is -40 ℃~+85 ℃, suitable for harsh industrial environments.

The protection level is IP20, and it needs to be installed inside the control cabinet to prevent dust and contact, ensuring safe operation.

The module structure is compact, weighing approximately 0.33kg, and is compatible with standard 19 inch cabinets and backplane bus installations.

Support S5 system backplane bus communication, seamless data interaction with CPU and I/O modules, and fast response.

Equipped with output short circuit and overload protection functions, it enhances the operational safety of modules and on-site equipment.

German origin, industrial grade components, high long-term stability, suitable for upgrading and maintenance of old systems.

The wiring terminal design is standardized, the wiring is simple, and it is convenient for on-site installation and later maintenance and repair.

Compliant with IEC industrial electromagnetic compatibility standards, it can stably output signals in strong interference industrial scenarios.

S5 system process control and actuator driving scenarios widely used in industries such as power, metallurgy, chemical, and manufacturing.

Siemens 6ES5470-8MC12 is a key module for analog control and execution drive in SIMATIC S5 system, thanks to its high-precision isolated output, strong anti-interference and stable adaptability.

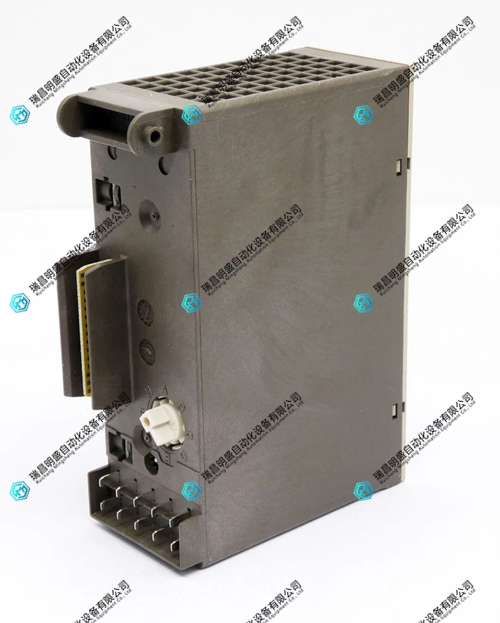

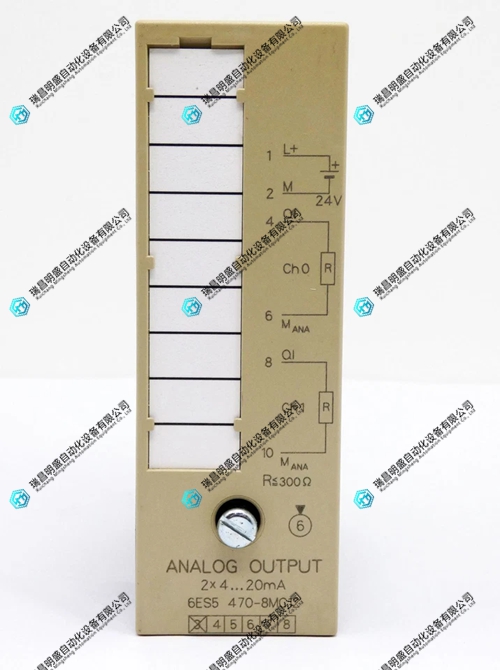

Siemens 6ES5470-8MC12分析输出模块 产品展示
