JANCD-MIF01继电器输出模块

JANCD-MIF01继电器输出模块

1.产 品 资 料 介 绍：

1. 专为安川 Motoman MRC 机器人控制系统设计，系统兼容性强。
2. 集成继电器输出与通信接口，兼具信号控制与数据交互能力。
3. 提供多路独立继电器输出通道，实现弱电控制强电的电气隔离。
4. 支持 12V/24V AC/DC 双规格供电，适配不同现场电源环境。
5. 标配 48 路 I/O 信号，可扩展至 144 路，满足多设备协同控制需求。
6. 内置 3 路报警输出，支持 LED、继电器接点、电平信号多形式报警。
7. 工作温度 - 10℃~+60℃，适应工业现场宽温环境。
8. 防护等级 IP67，具备防尘、防浸泡能力，耐受恶劣工况。
9. 支持多轴运动控制信号交互，最多适配 21 轴机器人系统。
10. 采用 PCB 板卡式设计，可直接嵌入机器人控制柜，安装便捷。
11. 内置信号滤波与浪涌抑制，提升抗电磁干扰能力。
12. 支持 2 台机器人同步控制，满足多机协同作业需求。
13. 具备状态监测与故障诊断功能，便于快速排查异常。
14. 继电器触点寿命长，满足工业长期稳定运行要求。
15. 符合 CE、UL 等工业安全认证，保障系统运行合规可靠。

JANCD-MIF01继电器输出模块 产品英文

JANCD-MIF01 is a multi interface communication/relay output module dedicated to the MRC control system of Yaskawa Robotics, providing signal extension and safety isolation control for robot systems, and adapting to industrial robot automation scenarios.

Specially designed for the Yaskawa Motoman MRC robot control system, with strong system compatibility.

Integrated relay output and communication interface, with both signal control and data exchange capabilities.

Provide multiple independent relay output channels to achieve electrical isolation of weak current control and strong current.

Supports dual specification power supply of 12V/24V AC/DC, suitable for different on-site power environments.

Standard configuration includes 48 I/O signals, which can be expanded to 144 signals to meet the needs of multi device collaborative control.

Built in 3-channel alarm output, supporting multiple forms of alarms including LED, relay contacts, and level signals.

Working temperature -10 ℃~+60 ℃, suitable for wide temperature environment in industrial sites.

Protection level IP67, with dust and immersion resistance, and can withstand harsh working conditions.

Support multi axis motion control signal interaction, suitable for up to 21 axis robot systems.

Adopting PCB card design, it can be directly embedded into the robot control cabinet, making installation convenient.

Built in signal filtering and surge suppression enhance the ability to resist electromagnetic interference.

Support synchronous control of 2 robots to meet the requirements of multi machine collaborative operation.

Equipped with status monitoring and fault diagnosis functions, it facilitates quick troubleshooting of abnormalities.

The relay contacts have a long lifespan and meet the long-term stable operation requirements of industry.

Compliant with industrial safety certifications such as CE and UL, ensuring the compliant and reliable operation of the system.

JANCD-MIF01, with its high integration, strong adaptability, and high reliability, has become the core module for signal extension and safety control in the Yaskawa MRC robot system.

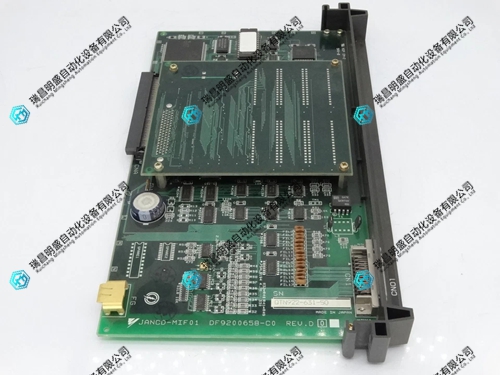

JANCD-MIF01继电器输出模块 产品展示

产品视频
