1.产 品 资 料 介 绍：

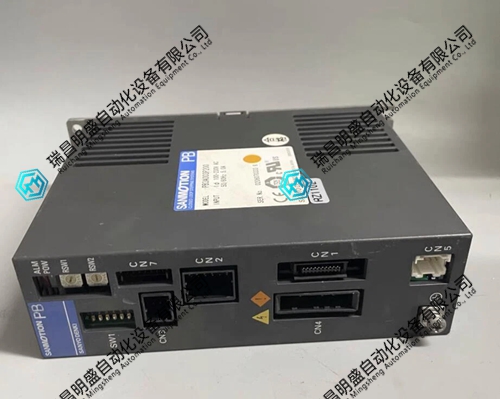

SANYO PB3A003P200 步进控制器
- 品牌型号：SANYO DENKI（山洋）PB3A003P200（SANMOTION PB 型）
- 控制方式：闭环步进控制，内置编码器反馈，杜绝失步
- 输入电源：AC 100–120V / 200–240V 宽压，50/60Hz
- 输出功率：200W，最大输出电流 3A，适配 42/57 闭环步进电机
- 指令脉冲：最高 250kHz，支持方向 / 脉冲、CW/CCW 指令
- 通讯接口：标配 RS‑485，支持 Modbus，便于组网控制
- 内置 I/O：8 路 DI + 8 路 DO，可直接连接传感器与执行器
- 控制模式：位置 / 速度 / 转矩三种模式，适配多工况
- 保护功能：过流、过压、欠压、过热、过载、编码器异常保护
- 运行特性：高分辨率细分、低振动低噪音，停止保持转矩稳定
- 动态响应：小行程高频动作下，响应优于同尺寸伺服
- 结构尺寸：200×125×99mm，金属外壳，抗振防尘
- 安装维护：标准导轨安装，参数可一键备份 / 恢复，运维简便
SANYO PB3A003P200 Stepper Controller
Introduction: SANYO PB3A003P200 is a SANMOTION series closed-loop stepper driver with AC input, 200W level, high precision, high response, and low vibration, suitable for small and medium-sized automated precision positioning scenarios.
Brand and model: SANYO DENKI PB3A003P200 (SANMOTION PB type)
Control method: closed-loop stepper control, built-in encoder feedback, to prevent step loss
Input power supply: AC 100-120V/200-240V wide voltage, 50/60Hz
Output power: 200W, maximum output current 3A, compatible with 42/57 closed-loop stepper motors
Command pulse: up to 250kHz, supports direction/pulse, CW/CCW commands
Communication interface: Standard RS-485, supporting Modbus for easy network control
Built in I/O: 8-way DI+8-way DO, can directly connect sensors and actuators
Control mode: position/speed/torque three modes, suitable for multiple working conditions
Protection functions: overcurrent, overvoltage, undervoltage, overheating, overload, encoder abnormal protection
Operating characteristics: high-resolution subdivision, low vibration and noise, stop and maintain torque stability
Dynamic response: Under small stroke high-frequency action, the response is better than that of servo of the same size
Structural dimensions: 200 × 125 × 99mm, metal shell, anti vibration and dustproof
Installation and maintenance: Standard rail installation, parameters can be backed up/restored with one click, easy operation and maintenance
Conclusion: PB3A003P200 is known for its closed-loop high precision, wide voltage versatility, complete protection, and easy integration. It is the preferred driving unit for small automation and precision positioning equipment.
