DINKLE  DM25-AP02 13596252连接模块

1.产 品 资 料 介 绍：

DINKLE DM25-AP02 13596252 连接模块

1. 型号 DM25-AP02，物料编码 13596252，标识清晰易追溯。
2. 采用 25 针接口设计，适配 DM25 系列信号连接需求。
3. 支持 AP02 连接规范，信号传输稳定、衰减小。
4. 阻燃 PA66 绝缘材质，达 UL94 V0 级，安全可靠。
5. 额定电压 300V、电流 15A，满足常规工业回路。
6. 铜合金镀锡触点，导电佳、抗氧化、寿命长。
7. 紧凑模块化结构，适配标准导轨安装，省空间。
8. 兼容 DINKLE DT-25 系列端子，互换性强。
9. 螺钉式接线，连接牢固，适配多规格导线。
10. 高绝缘电阻≥500MΩ，抗电磁干扰能力强。
11. 宽温运行，适配工业现场 - 40℃~+70℃环境。
12. 符合 RoHS 环保标准，绿色无污染。
13. 适配 PLC、传感器、驱动器信号转接场景。
14. 带定位卡扣，安装稳固，防振动松脱。
15. 13596252 为专属物料号，便于采购与库存管理。

DINKLE  DM25-AP02 13596252连接模块 产品英文

DINKLE DM25-AP02 13596252 Connection Module

DM25-AP02 (material number 13596252) is a DINKLE high-performance interface connection module used for industrial control system signal conversion and equipment interconnection, suitable for dense wiring scenarios in automation cabinets.

Model DM25-AP02, material code 13596252, with clear identification and easy traceability.

Adopting a 25 pin interface design, it is compatible with the DM25 series signal connection requirements.

Supports AP02 connection specification, with stable signal transmission and minimal attenuation.

Flame retardant PA66 insulation material, reaching UL94 V0 level, safe and reliable.

The rated voltage is 300V and the current is 15A, which meets the requirements of conventional industrial circuits.

Copper alloy tin plated contacts have excellent conductivity, oxidation resistance, and long service life.

Compact modular structure, compatible with standard guide rail installation, saving space.

Compatible with DINKLE DT-25 series terminals, with strong interchangeability.

Screw type wiring, securely connected, compatible with multiple specifications of wires.

High insulation resistance ≥ 500M Ω, strong resistance to electromagnetic interference.

Wide temperature operation, suitable for industrial sites -40 ℃~+70 ℃ environment.

Compliant with RoHS environmental standards, green and pollution-free.

Adapt to PLC, sensor, and driver signal transfer scenarios.

Equipped with positioning buckle, stable installation, anti vibration loosening.

13596252 is an exclusive material number for easy procurement and inventory management.

The DM25-AP02 13596252 connection module has a compact structure, safety and reliability, and wide adaptability, making it the preferred component for industrial control signal connection.

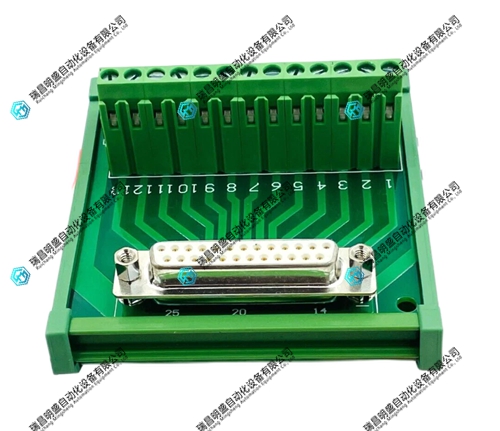

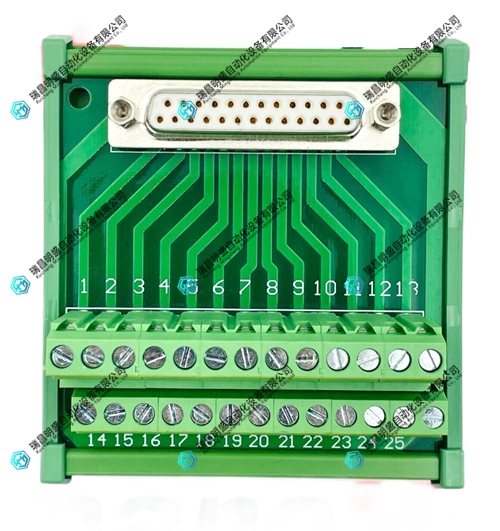

DINKLE  DM25-AP02 13596252连接模块 产品展示
