1.产 品 资 料 介 绍：
N‑TRON 517FX‑A‑SC 以太网交换机
- 型号全称：517FX‑A‑SC（多模，SC 接头，2km）
- 品牌归属：N‑TRON（现属 Red Lion），美国工业网络品牌
- 端口配置：16×10/100Base‑TX RJ45；1×100Base‑FX 多模光口（SC）
- 核心功能：管理型（‑A），支持 VLAN、QoS、IGMP、端口镜像、链路聚合
- 传输距离：多模光纤 2km；单模另有 40km/80km 型号
- 交换性能：吞吐量 2.6Gb/s，存储转发，全线速
- 电气特性：10–30VDC 冗余电源，反接 / 过压保护
- 工作温度：‑40℃ ～ +85℃，宽温工业级
- 防护等级：IP20，金属外壳，抗振动 / 冲击
- 安装方式：标准 DIN 导轨，可选面板 / 机架安装
- 状态指示：双色 LED，显示链路、速率、双工、活动、电源
- 认证合规：IEEE 802.3/1613、NEMA TS1/TS2、ABS、CE、cUL、RoHS
- 抗干扰设计：全端口 ESD / 浪涌保护，EMI 屏蔽
- 远程管理：支持 N‑View、串口配置，可远程监控与诊断
- 典型场景：工厂自动化、电力、轨道交通、船舶、安防监控

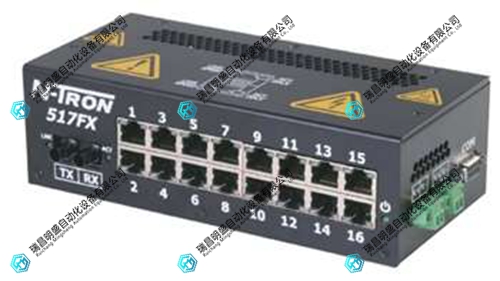

N-TRON 517FX-A-SC Ethernet Switch
517FX-A-SC is a Red Lion (formerly N-TRON) 500 series industrial management switch with 16 electrical ports and 1 multimode optical port, suitable for industrial network aggregation and long-distance transmission under harsh working conditions.
Model name: 517FX-A-SC (multimode, SC connector, 2km)
Brand affiliation: N-TRON (now Red Lion), an American industrial networking brand
Port configuration: 16 × 10/100Base TX RJ45; 1 × 100Base FX multimode optical port (SC)
Core function: Management oriented (- A), supporting VLAN, QoS, IGMP, port mirroring, link aggregation
Transmission distance: 2km for multimode fiber; 40km/80km models are available for single-mode fiber
Switching performance: throughput of 2.6Gb/s, store and forward, full line speed
Electrical characteristics: 10-30VDC redundant power supply, reverse/overvoltage protection
Working temperature: -40 ℃~+85 ℃, wide temperature industrial grade
Protection level: IP20, metal shell, anti vibration/impact
Installation method: Standard DIN rail, optional panel/rack installation
Status indicator: dual color LED, displaying link, speed, duplex, activity, power
Certification compliance: IEEE 802.3/1613, NEMA TS1/TS2, ABS, CE, cUL, RoHS
Anti interference design: full port ESD/surge protection, EMI shielding
Remote management: supports N-View, serial port configuration, remote monitoring and diagnosis
Typical scenarios: factory automation, electricity, rail transit, ships, security monitoring
