Silicon Graphics 030-1054-001 I/O 控制板
1.产 品 资 料 介 绍：
- 型号为 030-1054-001，SGI Octane 原装 I/O 控制板。
- 适配 Octane 工作站 XIO 总线架构，专用 I/O 扩展模块。
- 集成 10/100Mbps 以太网接口，支持网络唤醒与 PXE 启动。
- 搭载 Ultra2 SCSI 控制器，高速连接存储设备。
- 配备 USB 1.1 接口、DB9 串口及 PS/2 键鼠接口。
- 集成音频输入输出，支持多媒体语音与音效处理。
- 采用 XIO 高速总线，带宽高、延迟低、吞吐量大。
- 板载 FIFO 缓存，提升 DMA 传输效率，降低 CPU 占用。
- 工业级 8 层 PCB 材质，抗振动、抗干扰、散热性好。
- 表面贴装工艺，焊点均匀可靠，长期运行稳定。
- 兼容 IRIX 6.5 系统，驱动适配完善，即插即用。
- 支持热插拔，维护无需关机，便于在线更换。
- 标准 XIO 卡尺寸，安装便捷、定位精准、固定牢固。
- 自带过流、过压、短路保护，保障系统硬件安全。
- 原装 SGI 品质，适用于 Octane 工作站维修替换与升级。
Silicon Graphics 030-1054-001 I/O 控制板 产品英文
The Silicon Graphics 030-1054-001 I/O control board is an original I/O interface board for SGI Octane series workstations, responsible for high-speed input and output management. It has complete interfaces, stable transmission, and strong compatibility.
The model is 030-1054-001, SGI Octane original I/O control board.
Compatible with Octane workstation XIO bus architecture, dedicated I/O expansion module.
Integrated 10/100Mbps Ethernet interface, supporting network wake-up and PXE boot.
Equipped with Ultra2 SCSI controller, it can connect storage devices at high speed.
Equipped with USB 1.1 interface, DB9 serial port, and PS/2 keyboard and mouse interface.
Integrated audio input and output, supporting multimedia voice and sound processing.
Using XIO high-speed bus, it has high bandwidth, low latency, and high throughput.
Onboard FIFO cache improves DMA transfer efficiency and reduces CPU usage.
Industrial grade 8-layer PCB material, resistant to vibration, interference, and good heat dissipation.
Surface mount technology ensures uniform and reliable solder joints, and long-term stable operation.
Compatible with IRIX 6.5 system, with complete driver adaptation and plug and play functionality.
Support hot plugging, maintenance without shutting down, easy to ｒｅｐｌａｃｅ online.
Standard XIO card size, easy installation, precise positioning, and firm fixation.
Equipped with overcurrent, overvoltage, and short circuit protection to ensure the hardware safety of the system.
Original SGI quality, suitable for Octane workstation maintenance, replacement, and upgrade.
In summary, the 030-1054-001 I/O control board, with its original adaptation, high-speed bus, rich interfaces, and comprehensive protection, is the core I/O expansion and replacement component of the SGI Octane series devices, suitable for professional graphics processing, scientific computing, and multimedia application scenarios.

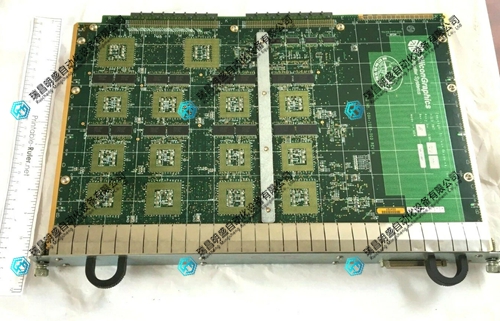

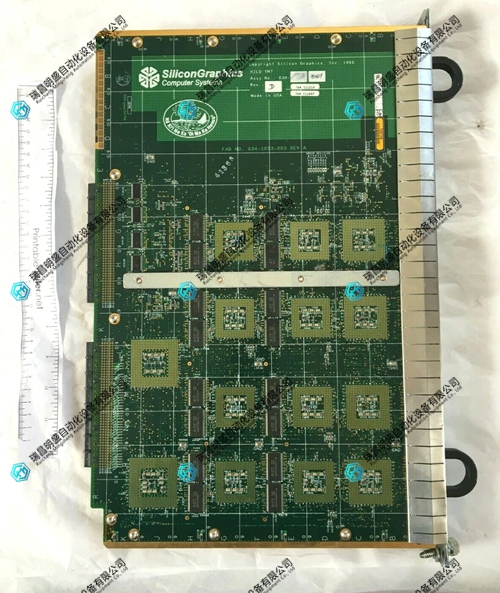

Silicon Graphics 030-1054-001 I/O 控制板 产品展示
视频展示
