Silicon Graphics Si5350/51-20QFN-EVB 发生器评估板
1.产 品 资 料 介 绍：
- 型号为 Si5350/51-20QFN-EVB，专用时钟发生器评估板
- 搭载 Si5350/51 系列时钟芯片，采用 20QFN 封装
- 支持宽范围时钟频率输出，适配多种测试需求
- 板载独立供电电路，可通过 USB 直接取电
- 预留外部时钟接入接口，兼容内外参考信号
- 配备 I²C 控制接口，方便参数读写与配置
- 多路时钟输出通道，满足多设备同步测试
- 支持多种工作模式，切换灵活适配不同场景
- 设有状态指示灯，直观查看设备运行状态
- 集成跳线模块，可快速切换电压与功能模式
- 信号输出稳定，相位抖动低，测试精度高
- 搭配专用上位机软件，图形化操作简单易懂
- 板体布局规整，接口分区清晰，接线方便
- 适用于芯片性能验证、产品原型开发调试
- 做工扎实，抗干扰性强，适合实验室长期使用
Silicon Graphics Si5350/51-20QFN-EVB 发生器评估板 产品英文
Silicon Graphics Si5350/51-20QFN-EVB generator evaluation board, used for clock chip testing and scheme debugging, with comprehensive functions and convenient use.
Model Si5350/51-20QFN-EVB, dedicated clock generator evaluation board
Equipped with Si5350/51 series clock chip and packaged in 20QFN
Supports wide range clock frequency output and adapts to various testing needs
Onboard independent power supply circuit, can be powered directly through USB
Reserved external clock access interface, compatible with internal and external reference signals
Equipped with I ² C control interface, convenient for parameter reading, writing and configuration
Multiple clock output channels to meet synchronous testing of multiple devices
Support multiple working modes, switch flexibly and adapt to different scenarios
Equipped with status indicator lights to visually view the operating status of the equipment
Integrated jumper module, capable of quickly switching voltage and functional modes
Stable signal output, low phase jitter, high testing accuracy
Paired with dedicated upper computer software, graphical operation is simple and easy to understand
The board layout is neat, the interface partition is clear, and the wiring is convenient
Suitable for chip performance verification, product prototype development and debugging
Solid workmanship, strong anti-interference ability, suitable for long-term use in laboratories
In summary, the Si5350/51-20QFN-EVB generator evaluation board has complete functions and is a practical supporting component for clock chip development, testing, and maintenance.

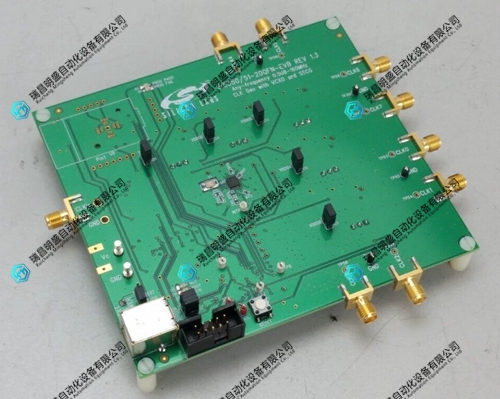

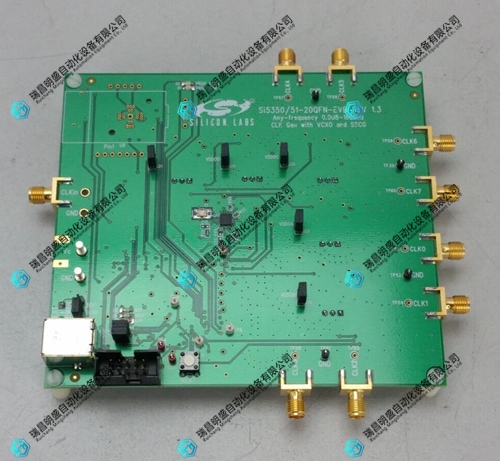

Silicon Graphics Si5350/51-20QFN-EVB 发生器评估板 产品展示
视频展示
