1.产 品 资 料 介 绍：
- 型号为 Si5380，工业专用时钟功能模块
- 搭载数字锁相环技术，信号抖动极低
- 支持多路独立时钟输出，通道配置灵活
- 兼容宽范围输入频率，信号接入适配性广
- 输出频率规格丰富，满足不同设备时序需求
- 支持 JESD204B 协议，适配高速传输架构
- 配备 I2C、SPI 控制接口，参数调试便捷
- 多档位电压供电可选，供电方案灵活
- 集成存储单元，可保存自定义配置参数
- 一体化芯片设计，简化外围电路布局
- 抗电源干扰能力强，运行状态稳定
- 具备多种工作模式，可按需切换使用
- 工业级封装，耐温性能适配严苛工况
- 多用于高速数据采集、射频设备、FPGA 时序系统
- 做工精密，是高端采集设备常用配套部件
Silicon Si5380 采集模块 产品英文
The Silicon Si5380 acquisition module is a high-precision clock like functional component with excellent timing performance, suitable for high-speed data acquisition scenarios.
The model is Si5380, an industrial dedicated clock function module
Equipped with digital phase-locked loop technology, the signal jitter is extremely low
Support multiple independent clock outputs, flexible channel configuration
Compatible with a wide range of input frequencies, with wide adaptability for signal access
Rich output frequency specifications to meet the timing requirements of different devices
Supports JESD204B protocol and adapts to high-speed transmission architecture
Equipped with I2C and SPI control interfaces, convenient parameter debugging
Multiple voltage levels are available for power supply, with flexible power supply solutions
Integrated storage unit, capable of saving custom configuration parameters
Integrated chip design simplifies peripheral circuit layout
Strong resistance to power interference and stable operating status
Having multiple working modes that can be switched and used as needed
Industrial grade packaging, temperature resistance performance suitable for harsh working conditions
Mostly used for high-speed data acquisition, RF equipment, FPGA timing systems
Crafted with precision, it is a commonly used component in high-end collection equipment
In summary, the Si5380 module has high timing accuracy and complete functions, making it an important component of high-speed data acquisition systems.

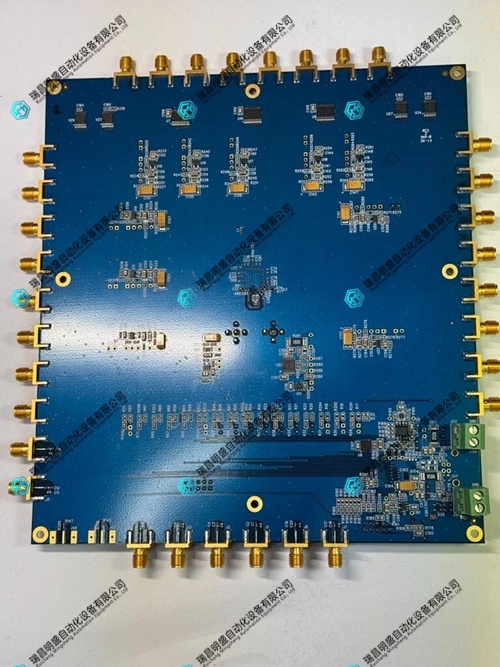

Silicon Si5380 采集模块 产品展示
