1.产 品 资 料 介 绍：

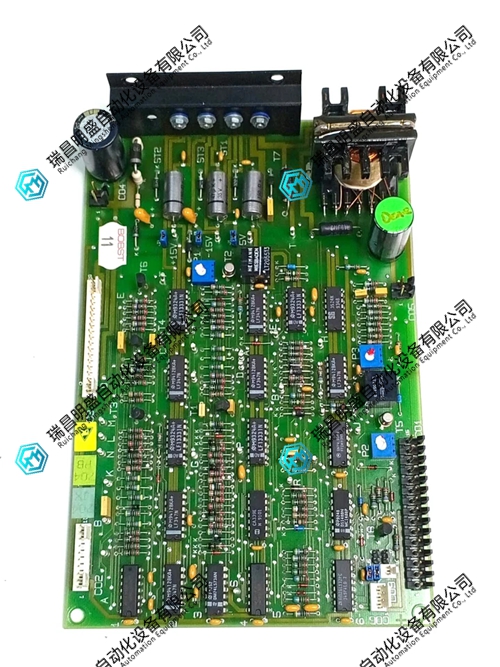

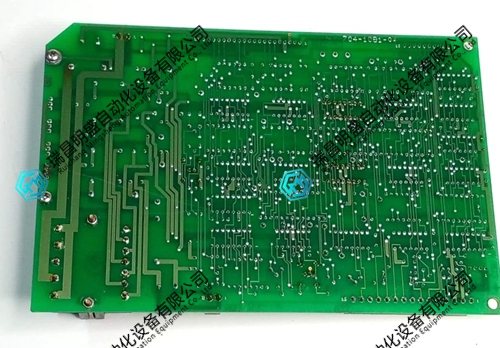

BOBST 704-1091-04 is a display/operation panel interface board for the 704 series rack, responsible for signal conversion, driving, and communication between the main control and human-machine interface (HMI).
Original factory code: 704-1091-04 (alias 704109104, with PPI interface)
Model adaptation: 704PF/704ES die-cutting machine, glue box machine, matched with 704-1119-02 and other display panels
Function positioning: display driver+button scanning+communication adapter integrated interface board
Display driver: drives LED/LCD operation panel, outputs row/column scanning signals
Button processing: Collect panel button/knob input, encode and send to the main control
Communication protocol: onboard PPI/dedicated bus, compatible with 704-1097-07 communication board
Signal conversion: TTL/CMOS level conversion, compatible with main control and panel electrical standards
Status indication: onboard power supply, communication, fault LED, quickly diagnose panel communication abnormalities
Power management: Input 24V DC to generate 5V/± 15V required by the panel
Anti interference design: optocoupler isolation+RC filtering to suppress interference from workshop motors/frequency converters
Reinforced gold fingers: thickened gold plating, shock resistant and plug resistant, suitable for high-speed mechanical vibration
Industrial protection: Three proof coating (moisture-proof/dustproof/anti ink), suitable for harsh workshop environments
Wide temperature operation: -10 ℃~+60 ℃, tolerant of temperature fluctuations in the workshop
Installation method: Standard 704 rack slot, plug-in type with no wiring replacement
Replacement feature: Directly ｒｅｐｌａｃｅ with the same number, automatically match panel parameters, no need for re debugging
