1.产 品 资 料 介 绍：
Matrox Genesis 63039620241 采集卡产品特点
- 采用专用处理芯片，图像处理速度快
- 板载大容量缓存，数据暂存能力优秀
- 高速数据传输，采集画面流畅无延迟
- 支持多路信号同步采集，作业效率高
- 标准 PCI 接口，适配主流工业主机
- 兼容多种相机类型，适配范围广泛
- 画面采集清晰度高，成像效果稳定
- 支持多卡串联扩展，功能灵活升级
- 工业级电路设计，抗干扰能力出众
- 体积小巧，机箱内安装简单方便
- 可 24 小时连续运行，持续工作稳定
- 信号传输损耗低，数据采集精准
- 适配工业现场环境，温域适应性强
- 原厂标准做工，使用寿命长久
- 配套软件完善，调试与运维便捷
Matrox Genesis 63039620241采集卡 产品英文
The Matrox Genesis 63039620241 acquisition card is a high-performance image acquisition and processing board launched by the Canadian company Matrox. Its core features are summarized as follows:
Part number 63039620241, corresponding to Genesis series 720-04 Grab GEN/F/64/8/LVDS model.
Long PCI board specifications, integrating image acquisition, real-time processing, and display functions.
Equipped with TI TMS320C80 multi-core DSP processor, with a computing power of up to 100 BOPs.
Equipped with Matrox NOA neighborhood operation accelerator to accelerate image processing algorithms.
The analog acquisition rate is up to 140 MHz, and the 32-bit digital acquisition rate is up to 30 MHz.
Supports RS-422 (25 MHz) and LVDS (40 MHz) digital interfaces.
Can simultaneously capture up to 4 synchronized video streams.
Onboard 6 MB WRAM display cache and 2 MB WRAM overlay cache.
VGA display resolution up to 1600 x 1200 @ 85 Hz.
Supports true color display and lossless pseudocolor graphic overlay.
Adopting VMChannel ™ Secondary bus, supporting cascading transmission of multiple boards.
Suitable for industrial machine vision, medical imaging, and scientific imaging fields.
Multiple video sources can be connected: RGB/black and white, analog/digital, and area/line array cameras.
Supports Windows NT 4.0, 2000, XP, and QNX operating systems.
Matched with Matrox Imaging Library (MIL) software development kit.
Conclusion: In summary, the Matrox Genesis 63039620241 acquisition card has the characteristics of high acquisition rate, strong processing performance, and wide interface compatibility. It is the core video acquisition and processing component in industrial imaging and medical imaging systems.

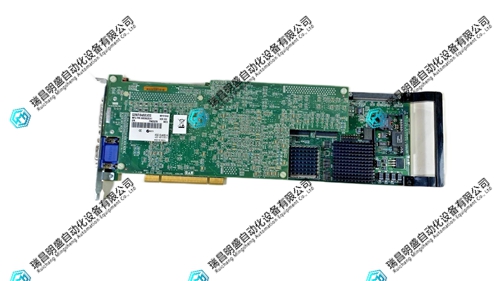

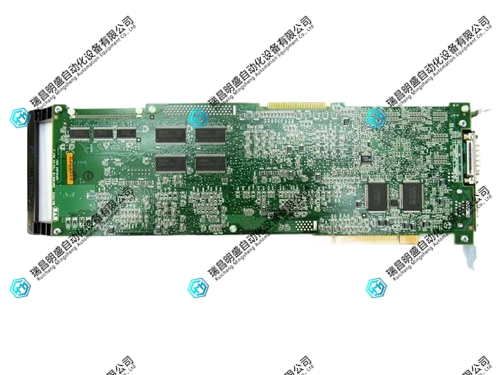

Matrox Genesis 63039620241采集卡 产品展示
