1.产 品 资 料 介 绍：
LEICA 301-389.040 印刷电路板产品特点
开头
- 标准 VME 总线插槽规格，可直接嵌入徕卡系列工控机柜
- 双层高精度走线工艺，信号传输损耗低、干扰小
- 原装进口贴片芯片，元器件焊接牢固，长期运行不易脱焊
- 板载多组可调电位器，设备参数校准操作便捷
- 多重滤波电路设计，抵御车间电磁、高压信号干扰
- 轻量化板材，整板重量仅 0.45kg，机柜安装无负重压力
- 分区电路布局，电源、信号、控制线路相互隔离
- 集成多路信号输入输出通道，适配显微镜传感组件
- 内置过流、静电防护电路，减少元件击穿故障
- 原厂丝印标识清晰，点位、引脚标注便于检修排查
- 宽温工作设计，可稳定运行于 10-50℃工业环境
- 金手指加厚镀金处理，插拔耐磨、接触持续稳定
- 模块化电路分区，局部故障仅需更换对应元件
- 适配徕卡精密测量、晶圆检测整机控制系统
- 统一原厂工艺标准，同型号板卡可直接互换替换
结尾

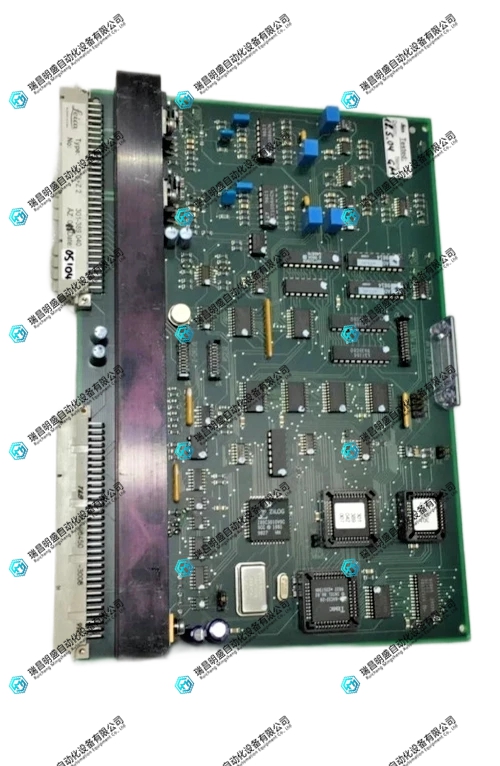

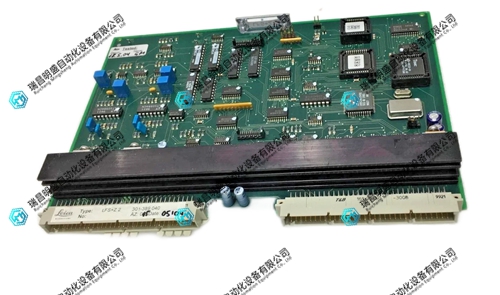

LEICA 301-389.040 印刷电路板 产品英文
LEICA 301-389.040 Printed Circuit Board Product Features
beginning
LEICA 301-389.040 is a Leica OEM VME bus industrial control printed circuit board, suitable for semiconductor precision testing equipment, with high circuit integration and stable industrial adaptation. The following are the core features.
Standard VME bus slot specification, can be directly embedded into Leica series industrial control cabinets
Double layer high-precision wiring process, low signal transmission loss and minimal interference
Original imported surface mount chips, components are firmly soldered and not easily detached during long-term operation
Multiple sets of adjustable potentiometers on board, easy to calibrate equipment parameters
Multiple filtering circuit design to resist electromagnetic and high-voltage signal interference in the workshop
Lightweight board, with a total weight of only 0.45kg, and no load-bearing pressure for cabinet installation
Partition circuit layout, with power, signal, and control lines isolated from each other
Integrate multiple signal input and output channels, compatible with microscope sensing components
Built in overcurrent and electrostatic protection circuits to reduce component breakdown faults
The original factory silk screen label is clear, and the point and pin markings are easy to inspect and troubleshoot
Wide temperature working design, capable of stable operation in industrial environments ranging from 10-50 ℃
Gold finger thickened with gold plating treatment, wear-resistant insertion and removal, and continuous and stable contact
Modular circuit partitioning, local faults only require replacement of corresponding components
Compatible with Leica precision measurement and wafer inspection control system
Unified original factory process standards, same model boards can be directly exchanged and replaced
ending
In summary, the LEICA 301-389.040 circuit board relies on reliable wiring, complete protection, and standard VME interfaces, making it a dedicated stable control board for Leica precision industrial equipment.
