1.产 品 资 料 介 绍：
Matrox Y7116-04 图像采集卡产品特点
开头
- PCIe 高速总线，图像传输速度快不卡顿
- 四路独立图像通道，可同时接入多台相机
- 板载大容量缓存，稳定缓存图像数据流
- 支持外部触发，精准同步抓拍运动工件
- 内置 FPGA 预处理，降低主机 CPU 负载
- 兼容 Camera Link、GigE Vision 主流相机协议
- 支持超高分辨率图像采集，画面细节完整
- 配套 MIL 视觉函数库，二次开发简单
- 适配 Halcon、LabVIEW 等主流视觉软件
- 宽温工作区间，车间高低温稳定运行
- 标准机箱挡板，台式工控机直接安装
- 多重信号滤波，抵御现场电磁干扰
- 完整驱动程序，多版本 Windows 系统兼容
- 实时图像降噪、裁剪 ROI 区域采集功能
- 原厂标准化板卡，同型号备件直接替换
结尾
Matrox Y7116-04图像采集卡 产品英文
Matrox Y7116-04 Image Acquisition Card Product Features
beginning
Matrox Y7116-04 industrial visual acquisition card, four channel synchronous acquisition, compatible with device visual inspection, with the following core features:
PCIe high-speed bus, fast image transmission speed without buffering
Four independent image channels, capable of simultaneously connecting multiple cameras
Onboard high-capacity cache, stable caching of image data streams
Support external triggering, accurately and synchronously capture moving workpieces
Built in FPGA preprocessing to reduce CPU load on the host
Compatible with mainstream camera protocols such as Camera Link and GigE Vision
Support ultra-high resolution image acquisition, with complete picture details
Supporting MIL visual function library, simple secondary development
Compatible with mainstream visual software such as Halcon and LabVIEW
Wide temperature working range, stable operation of high and low temperatures in the workshop
Standard chassis cover, directly installed on desktop industrial control computer
Multiple signal filtering to resist on-site electromagnetic interference
Complete driver program, compatible with multiple versions of Windows system
Real time image denoising, cropping ROI area acquisition function
Original factory standardized board, direct replacement of spare parts of the same model
ending
Matrox Y7116-04 multi-channel synchronous acquisition, strong compatibility, is a universal acquisition accessory for industrial machine vision inspection.

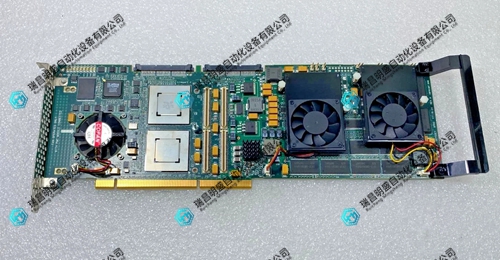

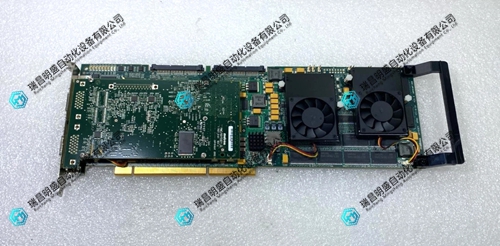

Matrox Y7116-04图像采集卡 产品展示
