1.产 品 资 料 介 绍：
ACS CM-2-A-E-M2-H4-SC 运动控制模块产品特点
- 内置双轴驱动，单轴持续 5A、峰值 10A 输出
- 支持 85-265VAC 宽电压供电，适配工业电网
- 20kHz 伺服闭环，定位精度高、运行抖动小
- 兼容无刷、直线、音圈多种伺服电机
- 搭载正余弦编码器接口，反馈信号稳定
- 以太网、RS232 多通讯接口，对接上位便捷
- 支持 ACSPL + 编程，内置简易 PLC 逻辑
- 高速 HSSI 总线，可扩展多轴同步控制
- 自带 S 曲线插补，设备启停运行平稳
- 具备过流、过压、过热多重电路保护
- 电机一键自整定，现场调试省时省力
- 金属散热壳体，24 小时连续工作不高温
- 标准导轨安装，机柜装配节省空间
- 支持位置触发采集，适配视觉配套设备
- 抗电磁干扰，适配无尘半导体车间工况结尾：ACS CM-2-A-E-M2-H4-SC 集成度高、控制稳定，是双轴精密运动控制核心单元。
ACS CM-2-A-E-M2-H4-SC运动控制 产品英文
ACS CM-2-A-E-M2-H4-SC Motion Control Module Product Features
Introduction: ACS CM-2-A-E-M2-H4-SC is a 2-axis drive control integrated motion controller, suitable for high-precision precision automation equipment.
Built in dual axis drive, single axis continuous 5A, peak 10A output
Supports 85-265VAC wide voltage power supply, compatible with industrial power grids
20kHz servo closed-loop, high positioning accuracy, and low operational jitter
Compatible with brushless, linear, and voice coil servo motors
Equipped with sine cosine encoder interface, stable feedback signal
Ethernet and RS232 multiple communication interfaces, easy to connect to the upper level
Supports ACSPL+programming, with built-in simple PLC logic
High speed HSSI bus, expandable multi axis synchronous control
Equipped with S-curve interpolation, the equipment runs smoothly on and off
Equipped with multiple circuit protections for overcurrent, overvoltage, and overheating
One click self-tuning of the motor saves time and effort during on-site debugging
Metal heat dissipation shell, 24-hour continuous operation without high temperature
Standard rail installation, cabinet assembly saves space
Support location triggered collection and adapt to visual supporting equipment
Anti electromagnetic interference, suitable for dust-free semiconductor workshop working conditions
Conclusion: ACS CM-2-A-E-M2-H4-SC has high integration and stable control, and is the core unit of dual axis precision motion control.

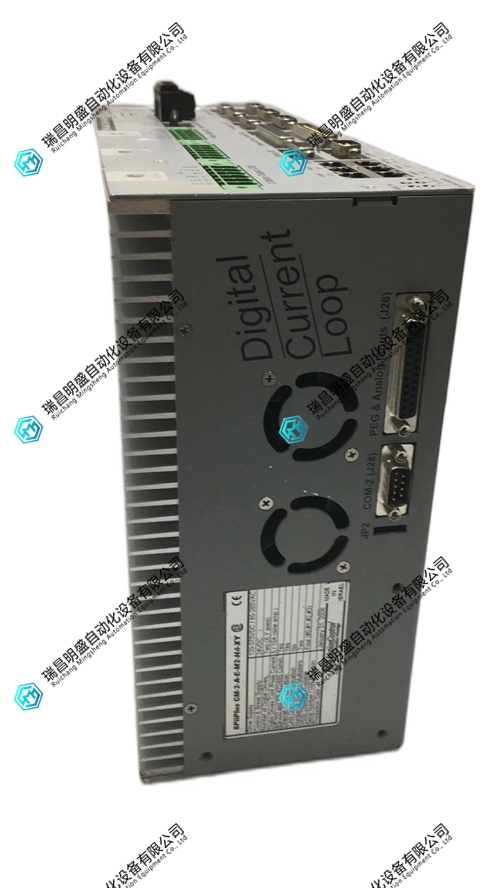

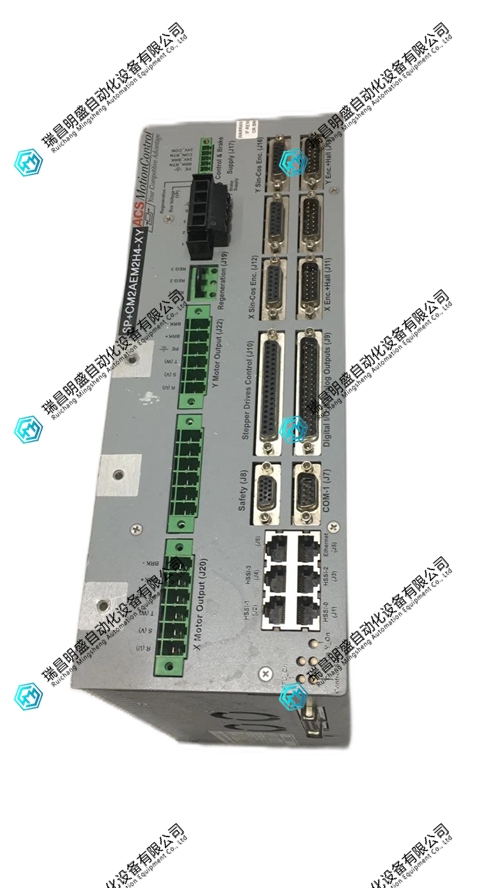

ACS CM-2-A-E-M2-H4-SC运动控制 产品展示
