1.产 品 资 料 介 绍：
TELEDYNE HS-S0-12K40-00 相机控制器产品特点
- 适配 12000 像素线阵 CCD，成像画面分辨率高
- 最高支持 90kHz 行频，高速产线采集不丢帧
- 搭载 HSLink 高速接口，图像传输带宽充足
- 支持 256 阶 TDI 档位可调，暗光环境成像清晰
- 双向扫描控制，可切换正反传感器读取模式
- 内置 100 倍抗光晕功能，避免画面过曝失真
- 兼容 TDI、面阵两种采集模式，调试灵活
- 多路硬件触发 IO，同步对接设备运动轴
- 内置平场校正算法，统一画面明暗色差
- 软件可编程曝光、行频、增益等参数
- 实时图像数据预处理，降低上位运算压力
- 金属密闭壳体，抗车间电磁信号干扰
- 自带故障自检，快速识别相机通讯异常
- 标准工业安装规格，拆装替换操作简便
- 宽温稳定运行，适配面板、卷材检测工况结尾：TELEDYNE HS-S0-12K40-00 成像控制稳定、适配高速精密视觉检测，是工业线扫设备核心控制配件。
TELEDYNE HS-S0-12K40-00相机控制器 产品英文
TELEDYNE HS-S0-12K40-00 Camera Controller Product Features
Introduction: TELEDYNE HS-S0-12K40-00 is a dedicated control unit for the Thales DALSA line scan camera, which controls the imaging and acquisition process of the 12K high-resolution TDI camera.
Suitable for 12000 pixel linear array CCD, with high imaging resolution
Supports up to 90kHz line frequency, high-speed production line data collection without losing frames
Equipped with HSLink high-speed interface, the image transmission bandwidth is sufficient
Supports 256 levels of TDI gear adjustment, providing clear imaging in low light environments
Bidirectional scanning control, switchable positive and negative sensor reading modes
Built in 100x anti glare function to avoid overexposure and distortion of the image
Compatible with TDI and array acquisition modes, flexible debugging
Multiple hardware triggered IO, synchronized docking device motion axis
Built in flat field correction algorithm to unify the brightness and color difference of the image
Software programmable exposure, line frequency, gain and other parameters
Real time image data preprocessing reduces upper level computational pressure
Metal enclosed shell, resistant to electromagnetic signal interference in the workshop
Built in fault self check, quickly identify camera communication abnormalities
Standard industrial installation specifications, easy disassembly and replacement operation
Wide temperature stable operation, suitable for panel and roll detection conditions
Conclusion: TELEDYNE HS-S0-12K40-00 has stable imaging control and is suitable for high-speed precision visual inspection. It is the core control component of industrial line scanning equipment.

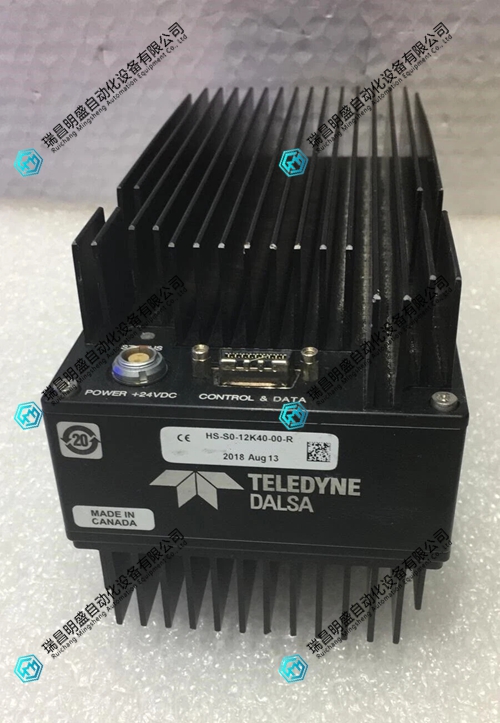

TELEDYNE HS-S0-12K40-00相机控制器 产品展示
