1.产 品 资 料 介 绍：
TEL 5880-000057-V1 印刷电路板模块产品特点
- 多层高精度线路设计，阻抗统一管控，高速信号传输无失真
- 分区强弱电布线，隔离射频干扰，适配刻蚀设备复杂电磁环境
- 高密度多规格插槽，兼容 IO、通讯、电源各类外接子板对接
- 镀金连接器焊盘，耐磨抗氧化，长期插拔保持稳定导通
- 板载基础防护电路，具备过流、浪涌抑制，保护后端元器件
- 双网口集成设计，可同步完成设备总线数据交互传输
- 原厂洁净制程生产，板面无粉尘，适配无尘晶圆车间使用
- 全点位出厂通断检测，提前筛除短路、断路不良隐患
- 加厚加固焊盘，耐受机台长期启停震动，不易脱焊故障
- 标准化定位开孔，可直接匹配设备机架固定安装
- 预留拓展焊点，可按需加装小型信号辅助元器件
- 耐腐蚀阻焊涂层，抵御车间微量工艺化学挥发气体
- 多路独立供电回路，单通道故障不影响整板其余线路
- 配套原厂整机固件，通讯对接无兼容报错，调试简单
- 标准分体式装配，单独拆装检修无需整机停机TEL 5880-000057-V1 是半导体工艺设备核心信号分配载板，保障整机各模块稳定通讯供电。
TEL 5880-000057-V1 印刷电路板模块 产品英文

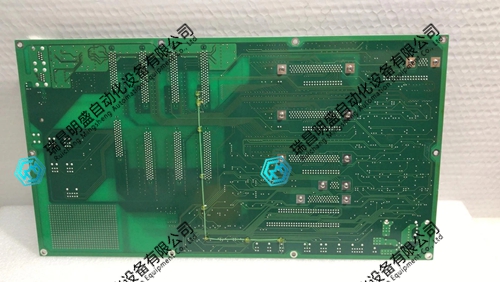

TEL 5880-000057-V1 Printed Circuit Board Module Product Features
TEL 5880-000057-V1 is a distributed signal transfer PCB board specifically designed for Tokyo Electronic Semiconductor Equipment, responsible for the distribution of multiple signals and power supply for the entire machine.
Multi layer high-precision circuit design, unified impedance control, high-speed signal transmission without distortion
Partition strong and weak electrical wiring, isolate RF interference, adapt to complex electromagnetic environments of etching equipment
High density and multi specification slots, compatible with various external boards for IO, communication, and power docking
Gold plated connector pads, wear-resistant and anti-oxidation, maintain stable conductivity after long-term insertion and removal
Onboard basic protection circuit with overcurrent and surge suppression to protect backend components
Dual port integrated design, capable of synchronously completing device bus data exchange and transmission
Original factory clean process production, dust-free board surface, suitable for use in dust-free wafer workshops
Full point factory on/off testing to screen out potential hazards such as short circuits and open circuits in advance
Thickened and reinforced solder pads, able to withstand long-term start stop vibrations of the machine, and less prone to solder failure
Standardized positioning holes can be directly matched with equipment racks for fixed installation
Reserve expansion solder joints and install small signal auxiliary components as needed
Corrosion resistant solder mask coating, resistant to trace process chemical volatile gases in the workshop
Multiple independent power supply circuits, single channel faults do not affect the rest of the board's circuits
Equipped with original factory firmware for the entire machine, there are no compatibility errors in communication docking, and debugging is simple
Standard split assembly, separate disassembly and maintenance without the need for complete machine shutdown
TEL 5880-000057-V1 is the core signal distribution carrier board for semiconductor process equipment, ensuring stable communication and power supply for all modules of the machine.
