1.产 品 资 料 介 绍：

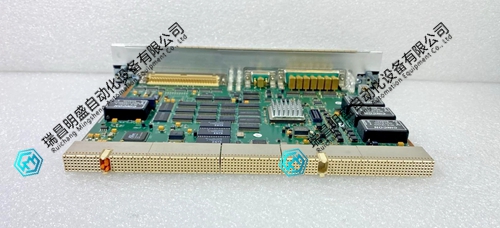

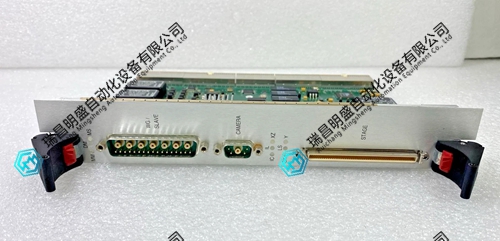

AMAT 0100-A1201 印刷电路板
- 适配 AMAT 半导体沉积、刻蚀工艺设备，专属机台控制信号传输
- 高 TG 耐高温基材，腔体周边高低温环境不易变形分层
- 多层精密布线结构，高速模拟、数字信号传输损耗低
- 板面沉金工艺，焊盘抗氧化，长期插拔接触稳定无断路
- 大面积覆铜屏蔽设计，抵御等离子射频电磁干扰
- 低出气洁净级板材，适配无尘晶圆生产车间工况
- 集成多路数字 IO 与模拟采集线路，兼顾控制与传感信号
- 板载多重限流、稳压电路，避免电压冲击损坏元器件
- 优化散热过孔布局，功率元件持续工作温升可控
- 标准化金手指插槽，机柜卡槽直插安装替换便捷
- 严格阻抗匹配走线，保障精密传感器数据不失真
- 抗震加固 PCB 内层结构，设备腔体移动震动不易脱焊
- 丝印清晰元件标识与点位编号，现场检修快速定位故障
- 原厂满载老化通电检测，同型号 AMAT 设备直接兼容
- 紧凑型板面布局，适配设备内部狭小模块安装空间AMAT 0100-A1201 印刷电路板信号传输稳定、洁净耐温，是半导体晶圆工艺设备核心控制板卡备件
AMAT 0100-A1201 印刷电路板 产品英文
AMAT 0100-A1201 Printed Circuit Board
Compatible with AMAT semiconductor deposition and etching process equipment, dedicated machine control signal transmission
High TG high-temperature resistant substrate, not easily deformed or delaminated in high and low temperature environments around the cavity
Multi layer precision wiring structure, low transmission loss for high-speed analog and digital signals
Surface immersion gold process, pad anti-oxidation, long-term plug-in and contact stability without open circuit
Large area copper-clad shielding design to resist plasma RF electromagnetic interference
Low exhaust clean grade board, suitable for working conditions in dust-free wafer production workshops
Integrate multiple digital IO and analog acquisition circuits, balancing control and sensing signals
Onboard multiple current limiting and voltage stabilizing circuits to avoid damage to components caused by voltage surges
Optimize the layout of heat dissipation through holes, and control the temperature rise of power components during continuous operation
Standardized gold finger slot, easy to install and ｒｅｐｌａｃｅ cabinet card slot through direct insertion
Strict impedance matching routing ensures that precision sensor data is not distorted
Seismic reinforcement of PCB inner structure, making it difficult for the equipment cavity to detach due to movement and vibration
Clear component identification and point numbering through silk screen printing, allowing for quick fault location during on-site maintenance
Original factory full load aging and power on testing, directly compatible with AMAT equipment of the same model
Compact board layout, suitable for small module installation space inside equipment
AMAT 0100-A1201 printed circuit board signal transmission is stable, clean and temperature resistant, and is a spare part for the core control board of semiconductor wafer process equipment
