1.产 品 资 料 介 绍：
TEL 2L81-050174-V1 印刷电路板产品特点
- TEL 2L81-050174-V1 采用多层线路板工艺，布线密集适配半导体设备复杂信号传输
- 沉金表面工艺，焊盘抗氧化，长期洁净车间使用不易接触不良
- FR4 高 TG 基材，耐受设备冷热循环，板材不易分层开裂
- 全板三防涂层，防潮防尘，适配蚀刻、薄膜沉积洁净腔体工况
- 多路隔离线路设计，隔绝电机、射频带来的电磁信号干扰
- 标准卡槽一体式结构，直插 TEL 设备背板，拆装更换便捷
- 高精度定位孔与焊盘，原厂匹配度高，替换无需改动线路
- 集成多组数字模拟信号通道，统筹传感器与执行元件通讯
- 内置过流、静电防护线路，减少静电击穿元器件故障
- 窄幅紧凑版型，节省机柜内部安装空间，适配高密度电控柜
- 原厂标准化线路布局，信号传输损耗低，工艺控制精度稳定
- 耐受车间常规震动，长期产线运行线路无断路虚焊问题
- 宽温工作区间，0-45℃环境持续稳定运行不丢信号
- 预留标准总线接口，可对接 TEL 整机主控系统无需转接板
- 自带故障点位测试焊盘，检修排查线路问题效率更高TEL 2L81-050174-V1 印刷电路板专为东京电子半导体设备配套，可靠性高、替换维护简单
TEL 2L81-050174-V1 印刷电路板 产品英文
TEL 2L81-050174-V1 Printed Circuit Board Product Features
TEL 2L81-050174-V1 adopts multi-layer circuit board technology, with dense wiring to adapt to complex signal transmission of semiconductor equipment
Sinking gold surface technology, pad oxidation resistance, and long-term use in clean workshops are not prone to poor contact
FR4 high TG substrate, resistant to equipment cold and hot cycles, and the board is not easily delaminated or cracked
Full board three proof coating, moisture-proof and dustproof, suitable for clean chamber conditions such as etching and thin film deposition
Multi channel isolation circuit design to isolate electromagnetic signal interference caused by motors and radio frequencies
Standard card slot integrated structure, directly inserted into TEL equipment backplane, easy to disassemble and ｒｅｐｌａｃｅ
High precision positioning holes and solder pads, high compatibility with the original factory, no need to modify the circuit for replacement
Integrate multiple sets of digital analog signal channels to coordinate communication between sensors and actuators
Built in overcurrent and electrostatic protection circuits to reduce electrostatic breakdown and component failures
Narrow and compact version, saving installation space inside the cabinet, suitable for high-density electrical control cabinets
Original factory standardized circuit layout, low signal transmission loss, stable process control accuracy
Resistant to conventional vibrations in the workshop, with no open circuit or virtual welding issues in the long-term operation of the production line
Wide temperature working range, continuous and stable operation in 0-45 ℃ environment without losing signal
Reserved standard bus interface, can be connected to TEL main control system without adapter board
Equipped with fault point testing pads, the efficiency of troubleshooting and troubleshooting circuit problems is higher
TEL 2L81-050174-V1 printed circuit board is specially designed for Tokyo electronic semiconductor equipment, with high reliability and easy replacement and maintenance

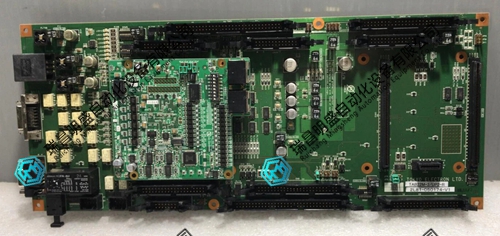

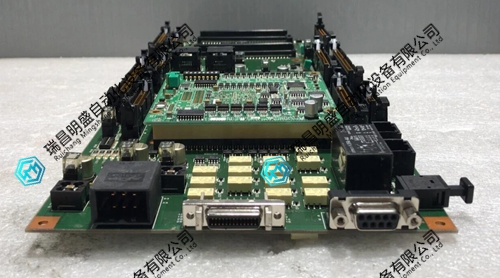

TEL 2L81-050174-V1 印刷电路板 产品展示
