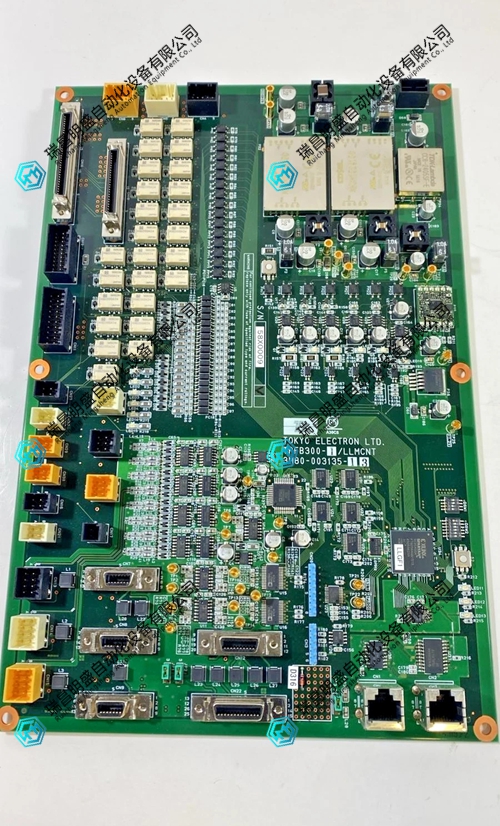

TEL 3M80-003135-13 印刷电路板

TEL 3M80-003135-13 印刷电路板

1.产 品 资 料 介 绍：

TEL 3M80-003135-13 印刷电路板适配半导体刻蚀设备信号传输与逻辑控制

1 多层精密线路布线高速信号传输损耗低

2 精准阻抗管控杜绝信号串扰保证工艺稳定

3 加厚镀金焊盘抗氧化长期使用不易虚焊

4 分层地层隔离大幅削弱腔体射频干扰

5 高耐温专用基材适配无尘洁净车间环境

6 标准板卡规格机框插拔替换操作便捷

7 多组预留测试点位故障检测维修高效

8 大面积铺铜辅助元器件散热降低高温故障

9 强弱电线路分区布局防止回路相互影响

10 高密度微孔布线集成度高节省设备内部空间

11 加固板材抗震动适配产线不间断量产运转

12 原厂标准引脚接口完美匹配 TEL 整机设备

13 完善绝缘防护有效规避线路短路损坏元件

14 板面耐化学清洗适配设备日常维护作业

15 适配刻蚀沉积薄膜处理各类晶圆制程设备

TEL 3M80-003135-13 印刷电路板走线精密抗干扰性能优异，可稳定支撑半导体设备长期连续生产

TEL 3M80-003135-13 印刷电路板   产品英文

TEL 3M80-003135-13 Printed Circuit Board Adaptation Semiconductor Etching Equipment Signal Transmission and Logic Control

Multi layer precision wiring with low loss in high-speed signal transmission

2. Precise impedance control to eliminate signal crosstalk and ensure process stability

3. Thickened gold-plated solder pads are resistant to oxidation and are less prone to virtual soldering after long-term use

4-layer geological isolation significantly reduces cavity RF interference

5 high temperature resistant specialized substrates suitable for dust-free clean workshop environments

6 standard board specifications, convenient operation for inserting and replacing shelves

More than 7 sets of reserved test points for efficient fault detection and maintenance

8 large-area copper laying auxiliary components for heat dissipation to reduce high temperature faults

9. Partition layout of strong and weak current lines to prevent mutual influence between circuits

10 high-density microporous wiring with high integration, saving internal space of equipment

11 Reinforced Plate Seismic Dynamic Adaptation Production Line Continuous Mass Production Operation

12 original factory standard pin interface perfectly matches TEL equipment

13. Improve insulation protection to effectively avoid damage to components caused by short circuits in power lines

14. Chemical resistant cleaning and adaptation equipment for daily maintenance of the board surface

15. Compatible with various wafer processing equipment for etching deposition film processing

TEL 3M80-003135-13 printed circuit board has precise wiring and excellent anti-interference performance, which can stably support long-term continuous production of semiconductor equipment
