1.产 品 资 料 介 绍：
YASKAWA JARCH-ZI001B 印刷电路板 产品英文介绍
YASKAWA JARCH-ZI001B Printed Circuit Board
1. Match Yaskawa robot control system, installation size original factory standard
2. Optimize the copper foil layout of the circuit to reduce signal transmission loss
3. Onboard isolation circuit effectively resists on-site electromagnetic interference
4. Reserved heat dissipation through holes for continuous operation and stable temperature rise control
5. Integrated multiple electrical protections to prevent damage from overvoltage and overcurrent
6. High density component layout, saving internal space of equipment
7. Standardized interface pads, convenient and reliable wiring harness docking
8. Fast signal response speed, meeting real-time motion control requirements
9. Industrial grade substrate board, resistant to vibration and not easily deformed
10. The solder mask coating process is excellent and has the ability to prevent moisture and dust
11. Independent partitioned circuit, local faults do not affect overall operation
12. After undergoing overall aging testing, it has demonstrated excellent long-term stability during operation
13. Specification for hole wall electroplating to enhance the durability of circuit conductivity
14. Clear maintenance points for easy fault detection and component replacement
15. Strictly follow the YASKAWA original PCB production and testing specifications
The YASKAWA JARCH-ZI001B printed circuit board, as a signal substrate for robot systems, has stable electrical performance and is suitable for assembly and debugging of corresponding models in Yaskawa.

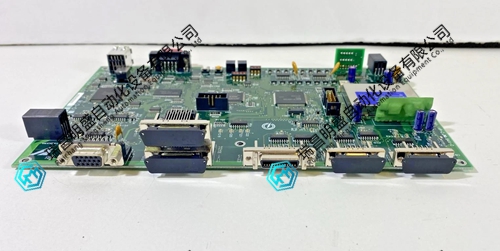

YASKAWA JARCH-ZI001B 印刷电路板 产品展示
视频展示
