1.产 品 资 料 介 绍：
ADVANCED PC3XD-EQ3 控制卡 产品英文介绍

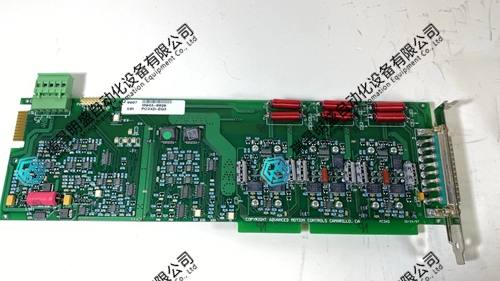

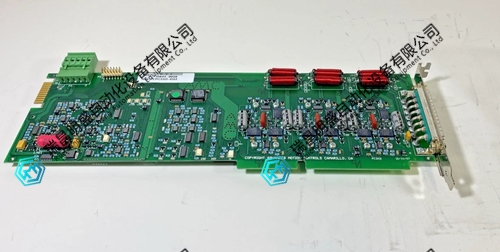

ADVANCED PC3XD-EQ3 Control Card
1. PC3XD-EQ3 is compatible with precision semiconductor equipment to achieve motion command output and signal feedback acquisition
2. Standard board form, supports chassis hot plugging, easy disassembly and replacement
3. Built in hardware signal equalization circuit ensures the quality of high-speed signal transmission
4. Multi layer PCB partition wiring reduces signal crosstalk and electromagnetic interference
5. Equipped with multiple pulse and bus interfaces, it interfaces with servo and sensing components
6. Equipped with a status indicator light, quickly determine the communication and fault status of PC3XD-EQ3
7. Integrated surge protection circuit to avoid damage to components caused by voltage surges
8. Reserve testing points for on-site signal detection and troubleshooting
9. High precision clock circuit ensures multi axis action timing synchronization
10. Optimize grounding design, reduce circuit noise, and improve control accuracy
11. Industrial grade components that support long-term uninterrupted operation of equipment
12. The board is temperature resistant and stable, adapting to temperature fluctuations in the equipment compartment
13. The screen printing on the board is clear, making it easy to distinguish between various signal channels
14. Standardized connector, compatible with internal wiring harness docking of the whole machine
15. Modular design allows for individual replacement of faulty boards, reducing downtime
ADVANCED PC3XD-EQ3 control card, a specialized board for motion control and signal processing of precision automation equipment.
