1.产 品 资 料 介 绍：
TEL 2980-090841-13电机输入/输出PCB 产品英文介绍
Colleagues who repair TEL coating and developing machines often encounter TEL 2980-090841-13 motor input/output PCB. This I/O board is responsible for transmitting motor drive signals, collecting sensor feedback, and is a critical circuit board in the motion control of track machines.
Product Features
1. Stable signal transmission ensures accurate execution of machine motor start stop and positioning instructions
2. The board comes with static electricity protection, which can resist workshop static electricity and reduce signal false triggering
3. Original board layout, perfectly compatible with TEL rail machine control system
4. Onboard status indicator light, convenient for maintenance personnel to quickly identify the fault location
5. Standard card slot, easy on-site insertion and replacement, reducing downtime
Product Specifications
1. Compatible equipment: TEL ACT series coating and developing track machine
2. Function: Motor drive signal output+sensor signal acquisition
3. Working voltage 24VDC
4. Support multi-channel digital I/O signal transmission and reception
5. Suitable for dust-free workshop working environment of 0 ℃~45 ℃
Application Areas
1. Signal interaction between motors at each station of TEL ACT track machine
2. Transfer of driving signals for wafer transfer robotic arm
3. Feedback on position signal acquisition of machine sensors
4. Motion unit control of lithography process workstation
5. Maintenance and replacement of spare parts for TEL coating and developing equipment boards
In general, TEL 2980-090841-13 motor input/output PCB is a signal relay station for track machine motion control. When the motor circuit is abnormal, this board is a high-frequency maintenance replacement spare part.

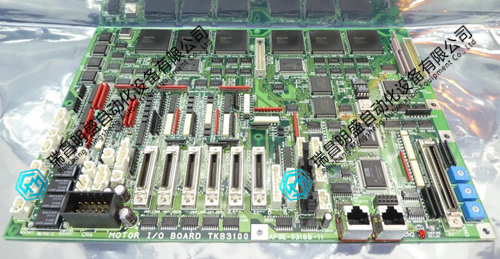

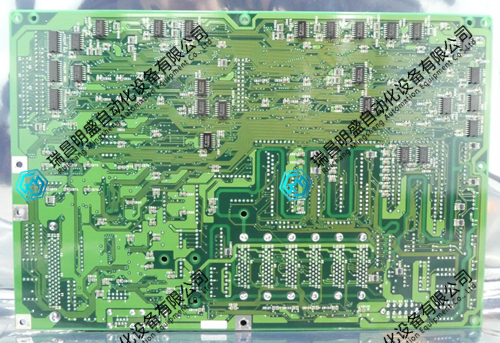

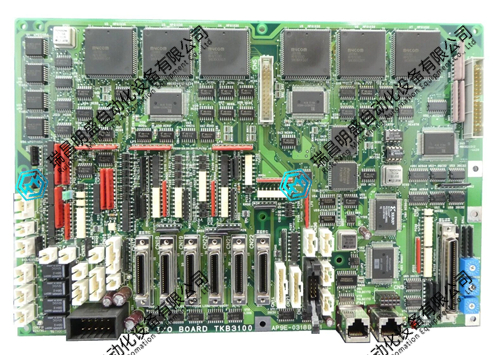

TEL 2980-090841-13电机输入/输出PCB 产品展示
