FINE SODICK CMPH-03A电路板

FINE SODICK CMPH-03A电路板

1.产 品 资 料 介 绍：

FINE SODICK CMPH-03A电路板  产品英文介绍

FINE SODICK CMPH-03A circuit board

Product Features

Shadick discharge machining machine dedicated board for precise and stable discharge signal acquisition

High frequency discharge interference during filtering and processing of onboard signal conditioning circuit

Equipped with a status indicator light, it can quickly identify abnormal circuit faults

Replace the original plug-in interface directly without rewiring to shorten downtime

Industrial grade components can withstand the water vapor and electrical discharge environment in the processing workshop

Product Specifications

Model FINE SODICK CMPH-03A

Adapt to the internal DC 24V control power supply of the machine tool

Responsible for collecting and processing discharge gap voltage and current signals

Dedicated cable interface docking with Shadick host system

Built in signal amplification and feedback regulation circuit on the board

Application Areas

Replacement parts for Shadick slow wire discharge machining signal processing board

Gap monitoring and control unit for electric discharge molding machine

Precision EDM machine tool discharge circuit signal conditioning module

Main control signal board for mold processing line cutting equipment

Shadick discharge equipment voltage and current acquisition board

The FINE SODICK CMPH-03A circuit board is a dedicated signal board for Shadick EDM slow wire equipment, responsible for processing discharge signal acquisition and gap feedback control

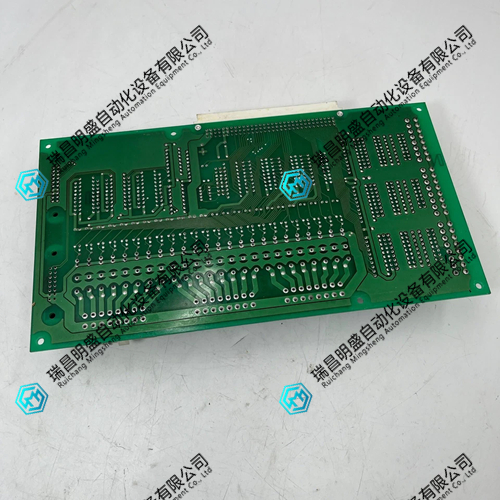

FINE SODICK CMPH-03A电路板  产品展示

视频展示
