Novellus Systems 22-8875-004双直流电机板
1.产 品 资 料 介 绍：
中文资料：
Novellus Systems 22-8875-004 双直流电机板（Dual DC Motor Board） 是专为 Novellus 半导体设备设计的驱动模块，主要用于控制两个直流电机的运行。该板卡提供对直流电机的精准调速、转向控制及保护功能，广泛应用于设备中的运动平台、阀门驱动或定位系统，保证机械部件的稳定和高效运行。
一、产品基本信息
产品型号：22-8875-004
产品名称：双直流电机板（Dual DC Motor Board）
制造商：Novellus Systems（现为 Lam Research 子公司）
功能定位：双路直流电机驱动与控制模块
二、核心功能
| 功能点 | 说明 |
|---|---|
| 双电机驱动 | 支持同时驱动两台直流电机，独立控制转速和转向。 |
| 速度调节 | 通过模拟或数字信号实现精细速度控制，适应不同工况需求。 |
| 过载保护 | 内置过流、过压及过热保护机制，保障电机和驱动板安全。 |
| 反馈接口 | 支持编码器或霍尔传感器信号输入，实现闭环控制。 |
| 状态监测 | 提供电机运行状态监测接口，便于系统诊断和维护。 |
三、典型应用领域
运动平台驱动
控制晶圆台或探测平台的精准移动，保证定位精度和稳定性。阀门执行器
驱动真空系统中的直流电机阀门，实现快速响应和精确开关。机械手臂或自动化搬运系统
控制直流电机完成机械动作，配合系统完成自动化流程。其他需要双路直流电机控制的设备部件
英文资料：
Novellus Systems 22-8875-004 Dual DC Motor Board is a driver module designed specifically for Novellus semiconductor equipment, mainly used to control the operation of two DC motors. This board provides precise speed regulation, steering control, and protection functions for DC motors, and is widely used in motion platforms, valve drive or positioning systems in equipment to ensure stable and efficient operation of mechanical components.
1、 Basic Product Information
Product model: 22-8875-004
Product Name: Dual DC Motor Board
Manufacturer: Novellus Systems (now a subsidiary of Lam Research)
Functional positioning: Dual channel DC motor drive and control module
2、 Core functions
Function Point Description
Dual motor drive supports driving two DC motors simultaneously, independently controlling speed and steering.
Speed regulation achieves precise speed control through analog or digital signals, adapting to different operating conditions.
Overload protection is equipped with overcurrent, overvoltage, and overheating protection mechanisms to ensure the safety of the motor and drive board.
The feedback interface supports encoder or Hall sensor signal input to achieve closed-loop control.
State monitoring provides an interface for monitoring the operation status of motors, facilitating system diagnosis and maintenance.
3、 Typical application areas
Sports platform driver
Control the precise movement of the crystal cone or detection platform to ensure positioning accuracy and stability.
valve actuator
Drive the DC motor valve in the vacuum system to achieve fast response and precise switching.
Mechanical arm or automated handling system
Control the DC motor to complete mechanical actions and cooperate with the system to complete automation processes.
Other equipment components that require dual DC motor control

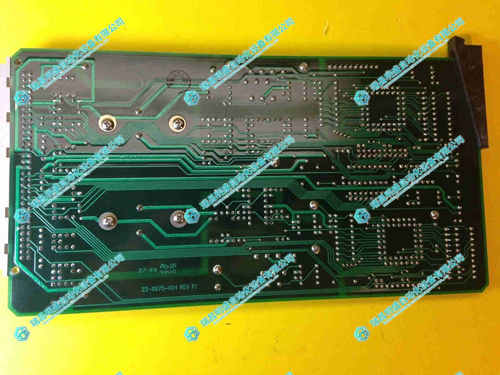

2.产 品 展 示
