Novellus Systems 03-10639-00接口板
1.产 品 资 料 介 绍：
中文资料：

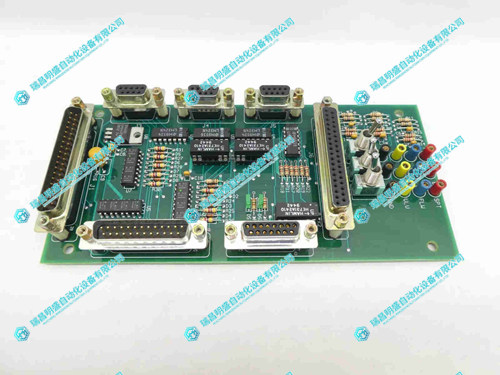

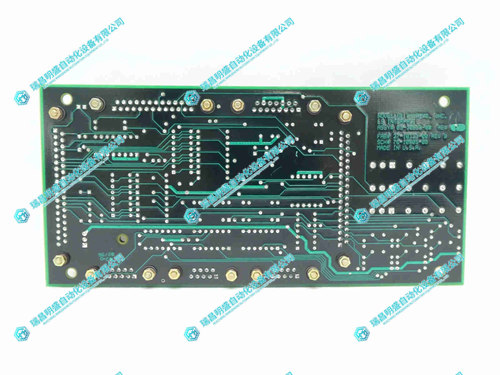

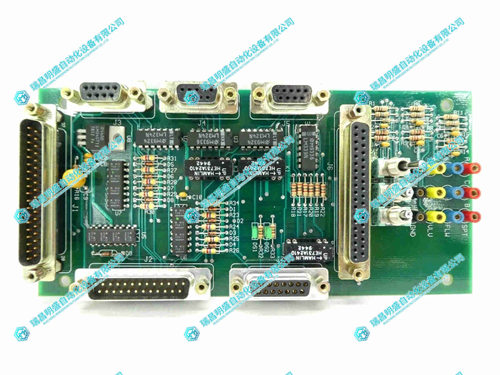

Novellus Systems 03-10639-00 接口板（Interface Board） 是一款专用于 Novellus 半导体设备系统中的信号接口与连接管理模块。此板卡主要作为中央控制器与外围模块之间的信号桥接节点，在整个设备控制链路中起着重要的接口协调作用。
一、基本信息
| 项目 | 内容 |
|---|---|
| 产品名称 | 接口板（Interface Board） |
| 型号 | 03-10639-00 |
| 制造商 | Novellus Systems Inc.（现为 Lam Research） |
| 部件类别 | 定制电子控制接口板 |
| 典型位置 | 控制箱、主控制器背板、I/O 配线区 |
| 主要用途 | 信号桥接、中继分配、协议转换、电气隔离 |
二、核心功能
| 功能类别 | 功能说明 |
|---|---|
| 信号接口桥接 | 连接 CPU 控制板与下游控制单元（如执行器、传感器、阀门控制器等）之间的信号传输。 |
| I/O 管理 | 提供多个数字或模拟输入输出接口，支持高精度控制信号传递。 |
| 协议转换 | 可承担串口/并口、TTL/RS485 等不同接口之间的信号匹配任务。 |
| 系统集成 | 实现多个板卡或控制单元在一套设备系统中的协同配合。 |
三、应用范围（推测）
该板卡广泛应用于 Novellus 的多代核心设备，包括但不限于：
Concept One / Two / Three 系列 CVD 系统
ALTUS 系列 ALD/沉积设备
Speed / INOVA 系列 高通量沉积平台
在这些系统中，该接口板通常：
连接主控制处理器（如 03-XXXXX 控制模块）
分配控制信号到执行元件（电磁阀、步进电机、升降机构等）
连接传感器或反馈电路（温度、压力、位置检测等）
英文资料：
The Novellus Systems 03-10639-00 Interface Board is a signal interface and connection management module specifically designed for use in Novellus semiconductor equipment systems. This board mainly serves as a signal bridge node between the central controller and peripheral modules, playing an important interface coordination role in the entire device control link.
1、 Basic Information
Project Content
Product Name: Interface Board
Model 03-10639-00
Manufacturer Novellus Systems Inc. (now Lam Research)
Customized electronic control interface board for component category
Typical position control box, main controller backplane, I/O wiring area
Main applications include signal bridging, relay distribution, protocol conversion, and electrical isolation
2、 Core functions
Function Category Function Description
The signal interface bridges the signal transmission between the CPU control board and downstream control units such as actuators, sensors, valve controllers, etc.
I/O management provides multiple digital or analog input/output interfaces, supporting high-precision control signal transmission.
Protocol conversion can undertake signal matching tasks between different interfaces such as serial/parallel ports, TTL/RS485, etc.
System integration realizes the collaborative cooperation of multiple boards or control units in a set of equipment systems.
3、 Application scope (speculated)
This board is widely used in Novellus' multi generation core devices, including but not limited to:
Concept One/Two/Three series CVD systems
ALTUS series ALD/sedimentation equipment
Speed/INOVA series high-throughput deposition platform
In these systems, the interface board typically:
Connect the main control processor (such as 03-XXXXX control module)
Allocate control signals to executing components (solenoid valves, stepper motors, lifting mechanisms, etc.)
Connect sensors or feedback circuits (temperature, pressure, position detection, etc.)
