TEL Tokyo Electron 3108-060021-11分析板
1.产 品 资 料 介 绍：
中文资料：
产品名称：3108-060021-11 分析板
制造商：Tokyo Electron Ltd.（TEL）
产品类型：分析板（Analysis Board / Diagnostic Board）
一、产品概述
TEL 3108-060021-11 分析板是一种应用于半导体制造设备中的专用电子模块，主要用于监测、诊断和分析设备运行数据。它通常作为系统监控与辅助控制的重要部件存在，帮助提升设备的稳定性与可维护性。
二、主要功能
信号分析与采集
实时采集来自传感器、执行元件或主控单元的运行数据。
处理模拟/数字信号，进行信号幅值、电平、波形等参数的判断。
状态监控与故障检测
检测关键控制信号是否正常，判断部件是否处于预设状态。
提供异常报警输出，用于快速定位问题。
数据反馈接口
将分析结果反馈至主控单元或上位系统供软件逻辑使用。
可能具有调试或维护通信端口（如 UART/RS232）。
三、适用领域
该分析板一般应用于以下 Tokyo Electron 系统模块中：
蚀刻设备（Etcher）
薄膜沉积设备（CVD/PVD）
涂胶显影设备（Coater/Developer）
清洗或检测系统中的内部子系统模块
英文资料：
Product Name: 3108-060021-11 Analysis Board
Manufacturer: Tokyo Electron Ltd. (TEL)
Product type: Analysis Board/Diagnostic Board
1、 Product Overview
TEL 3108-060021-11 analysis board is a specialized electronic module used in semiconductor manufacturing equipment, mainly for monitoring, diagnosing, and analyzing equipment operation data. It usually exists as an important component for system monitoring and auxiliary control, helping to improve the stability and maintainability of equipment.
2、 Main functions
Signal analysis and acquisition
Real time collection of operational data from sensors, actuators, or main control units.
Process analog/digital signals to determine parameters such as signal amplitude, level, waveform, etc.
Status monitoring and fault detection
Check whether the key control signals are normal and determine whether the components are in the preset state.
Provide abnormal alarm output for quick problem localization.
Data feedback interface
Feedback the analysis results to the main control unit or upper system for software logic use.
May have debugging or maintenance communication ports (such as UART/RS232).
3、 Applicable fields
This analysis board is generally used in the following Tokyo Electron system modules:
Etcher equipment
Thin film deposition equipment (CVD/PVD)
Coater/Developer
Cleaning or testing internal subsystem modules in the system

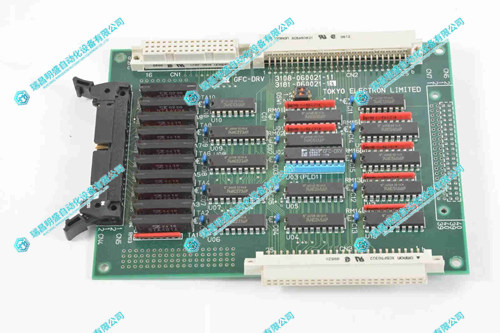

2.产 品 展 示
