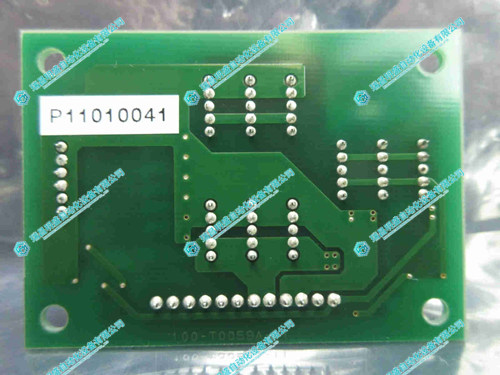

TEL Tokyo Electron TPC-T0064A-11接口板PCB
1.产 品 资 料 介 绍：
中文资料：
TEL Tokyo Electron TPC-T0064A-11 接口板PCB 是一款用于东京电子（TEL）半导体制造设备内部的关键通信连接模块，主要用于信号传输、数据中继和功能板卡之间的接口匹配，是控制系统实现多模块联动和稳定通信的基础桥梁之一。
一、产品概述
| 项目 | 内容 |
|---|---|
| 产品名称 | 接口板 / 印刷电路板（Interface PCB Board） |
| 产品型号 | TPC-T0064A-11 |
| 制造厂商 | Tokyo Electron Ltd.（东京电子） |
| 功能类型 | 多通道接口连接与信号路由 |
二、核心功能
信号接口桥接
提供多组输入输出接口，用于连接主控板、I/O模块、传感器、驱动器等；
支持数字信号、模拟信号及部分通信信号（如TTL、RS-422、光耦信号）中继。
电气隔离与稳定传输
模块上可能集成隔离元件，如光耦、电容屏蔽等，提升抗干扰能力；
确保在高速通信或复杂环境下的数据传输稳定性。
功能模块互联平台
将上位控制系统（如CPU主板）与执行层（如加热单元、气阀、电机）有效连接；
支持模块化布线设计，便于设备结构灵活配置和后期维护。
三、应用场景
晶圆处理设备控制系统
在涂胶显影、蚀刻、离子注入、清洗等设备中，用于主控与执行模块间的电信号接口。
复杂自动化系统的信号分布中心
作为信号中继节点，用于连接多个子板卡并集中布线，简化系统接线结构。
工艺控制辅助电路
支持部分温度、压力、光学传感器等外围电路与主板数据同步。
英文资料：
The TEL Tokyo Electron TPC-T0064A-11 interface board PCB is a key communication connection module used within Tokyo Electronics (TEL) semiconductor manufacturing equipment. It is mainly used for signal transmission, data relay, and interface matching between functional boards. It is one of the basic bridges for control systems to achieve multi module linkage and stable communication.
1、 Product Overview
Project Content
Product Name: Interface PCB Board
Product model TPC-T0064A-11
Manufacturer Tokyo Electron Ltd
Function type: Multi channel interface connection and signal routing
2、 Core functions
Signal interface bridging
Provide multiple sets of input/output interfaces for connecting the main control board, I/O modules, sensors, drivers, etc;
Supports the relay of digital signals, analog signals, and some communication signals (such as TTL, RS-422, optocoupler signals).
Electrical isolation and stable transmission
Isolation components such as optocouplers and capacitor shields may be integrated on the module to enhance anti-interference capabilities;
Ensure data transmission stability in high-speed communication or complex environments.
Functional module interconnection platform
Effectively connect the upper control system (such as CPU motherboard) with the execution layer (such as heating unit, air valve, motor);
Support modular wiring design, facilitating flexible configuration and later maintenance of equipment structure.
3、 Application scenarios
Wafer processing equipment control system
Used as an electrical signal interface between the main control and execution modules in equipment such as adhesive development, etching, ion implantation, and cleaning.
Signal distribution center of complex automation systems
As a signal relay node, it is used to connect multiple sub boards and centralize wiring, simplifying the system wiring structure.
Process control auxiliary circuit
Support synchronization of peripheral circuits such as temperature, pressure, and optical sensors with motherboard data.
