TEL Tokyo Electron 381-642446-1连接板
1.产 品 资 料 介 绍：
TEL Tokyo Electron 381-642446-1 连接板（Connection Board） 是一款应用于半导体制造设备内部的电子连接模块，主要用于实现不同控制单元、电路板或功能模块之间的信号、电源或通信线路的物理连接与分布。该组件属于设备内部结构化布线系统的一部分，在设备集成度高、模块化设计复杂的场合中尤为关键。
一、产品基本信息
产品型号： 381-642446-1
产品名称： 连接板（Connection Board / Interface PCB）
制造商： Tokyo Electron Ltd.（TEL）
产品类别： 内部通信/信号接口板卡
二、核心功能
信号传输桥接
将来自控制器、I/O模块、传感器等不同子系统的信号进行集中、转换或分发。
电源分配
为下游模块（如小型控制板、驱动板）提供低压电源通路（如+5V、+12V、+24V等）。
信号整合与整理
对复杂设备内部的线缆进行标准化排布，通过连接板集中处理，减少干扰、提升维护性。
多接口集成
一块板上可能集成多种连接方式：排针、接线端子、扁平排线插槽、FFC/FPC连接器等。
三、典型应用领域
半导体设备控制主架构
作为主控板、I/O卡件与各子模块之间的中转枢纽，常用于 Etcher、CVD、涂胶显影机等 TEL 设备中。
信号中继与分配节点
将传感器、执行器、温控器等外围设备的输入信号引入，并转送至对应控制模块。
模块间标准连接平台
在 TEL 模块化结构中，用于连接 CPU、通信模块、数字输入板、继电器输出板等。
调试与维护辅助接口
某些连接板集成状态指示灯、跳线区域、测试端口，便于故障排查与信号测试。
英文资料：
TEL Tokyo Electron 381-642446-1 Connection Board is an electronic connection module used inside semiconductor manufacturing equipment, mainly used to achieve physical connection and distribution of signals, power or communication lines between different control units, circuit boards or functional modules. This component is part of the internal structured cabling system of the device, and is particularly critical in situations where the device has high integration and complex modular design.
1、 Basic Product Information
Product model: 381-642446-1
Product Name: Connection Board/Interface PCB
Manufacturer: Tokyo Electron Ltd. (TEL)
Product Category: Internal Communication/Signal Interface Board
2、 Core functions
Signal transmission bridge
Concentrate, convert, or distribute signals from different subsystems such as controllers, I/O modules, and sensors.
power distribution
Provide low-voltage power supply paths (such as+5V,+12V,+24V, etc.) for downstream modules (such as small control boards, driver boards).
Signal integration and organization
Standardize the layout of cables inside complex equipment, and centrally process them through connection boards to reduce interference and improve maintainability.
Multi interface integration
Multiple connection methods may be integrated on a single board, including pin headers, terminal blocks, flat cable slots, FFC/FPC connectors, etc.
3、 Typical application areas
Main architecture of semiconductor equipment control
As a relay hub between the main control board, I/O cards, and various sub modules, it is commonly used in TEL equipment such as Etcher, CVD, coating and developing machines.
Signal relay and distribution node
Introduce input signals from peripheral devices such as sensors, actuators, and thermostats, and forward them to the corresponding control module.
Standard connection platform between modules
In the TEL modular structure, it is used to connect CPUs, communication modules, digital input boards, relay output boards, etc.
Debugging and maintenance auxiliary interface
Some connection boards integrate status indicator lights, jumper areas, and test ports for easy troubleshooting and signal testing.

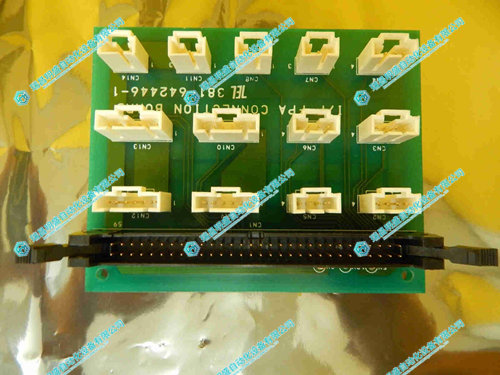

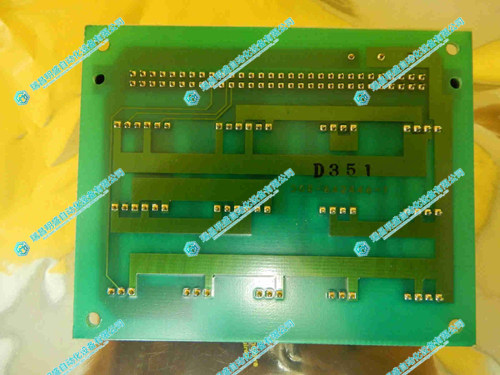

2.产 品 展 示
