TEL Tokyo Electron 1D08-000142-51接口PCB板
1.产 品 资 料 介 绍：
产品名称：
Tokyo Electron 1D08-000142-51 接口 PCB 板 是一款用于 TEL 半导体设备中的专用信号接口电路板，主要承担设备内部不同模块之间的信号连接、中转和适配任务。该类板卡通常为系统控制或过程模块中的关键通信枢纽之一。
一、产品功能概述
类型：接口型 PCB 板（Interface PCB）
功能：
实现主控系统与子模块之间的信号交互；
进行信号隔离、格式转换、状态检测等处理；
作为 I/O 接口与外部执行器、传感器、电磁阀、驱动器连接。
二、主要应用领域
半导体设备模块连接
在主控制板与腔体、气路、加热/冷却系统之间建立信号桥梁；
支持高速、低干扰的数据或控制信号传输。
I/O 控制系统
作为输入输出接口板连接设备上的各种信号源（如限位开关、光电传感器、阀门驱动电路）；
实现干接点信号采集、输出继电器驱动、电平转换等功能。
通信信号适配与分发
可与 RS-232、RS-485、TTL、CAN 等信号系统兼容；
支持系统总线与外设之间的隔离或中继。
英文资料：
The Tokyo Electron 1D08-000142-51 interface PCB board is a specialized signal interface circuit board used in TEL semiconductor equipment, mainly responsible for signal connection, transfer, and adaptation tasks between different modules inside the equipment. This type of card is often one of the key communication hubs in system control or process modules.
1、 Product Function Overview
Type: Interface PCB board
Function:
Realize signal interaction between the main control system and sub modules;
Perform signal isolation, format conversion, status detection and other processing;
As an I/O interface, it connects with external actuators, sensors, solenoid valves, and drivers.
2、 Main application areas
Semiconductor equipment module connection
Establish a signal bridge between the main control board and the cavity, air circuit, and heating/cooling system;
Support high-speed, low interference data or control signal transmission.
I/O control system
As an input/output interface board, connect various signal sources on the device (such as limit switches, photoelectric sensors, valve drive circuits);
Implement functions such as dry contact signal acquisition, output relay drive, and level conversion.
Communication signal adaptation and distribution
Compatible with signal systems such as RS-232, RS-485, TTL, CAN, etc;
Support isolation or relay between the system bus and peripherals.

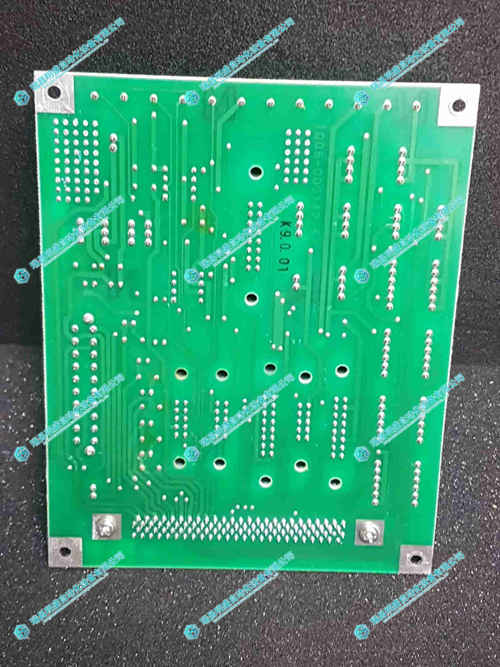

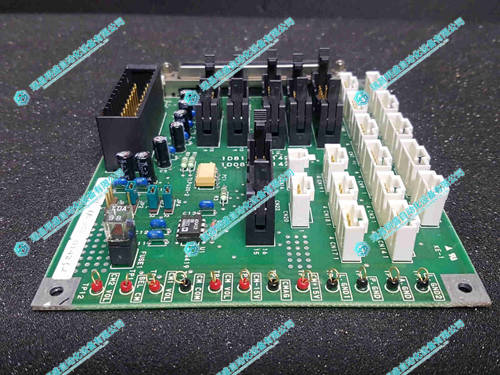

2.产 品 展 示
