1.产 品 资 料 介 绍：

产品名称：

Tokyo Electron 2L80-004992-V2 供应板（Supply Board） 是一款专用于 TEL 半导体设备中的电源/信号分配模块，通常作为系统内部多路电源或信号的集中供应平台。该组件广泛应用于蚀刻、沉积、光刻等设备的电气子系统中，是保障设备稳定运行的重要基础单元。

一、产品功能定位

• 模块类型：供应板 / 电源分配板（Power or Signal Supply Board）

• 主要功能：

  • 将主电源或主信号源通过该板进行分支、隔离、稳压后输出至各子系统；

  • 实现电源分区管理、过流保护、信号通道切换等功能；

  • 可与控制板、接口板等配合，实现逻辑控制和集中布线。

二、典型应用领域

1. 设备电源管理系统

• 为多个子模块（加热器、阀门驱动器、传感器、PLC板等）提供统一电源；

• 包括 +5V、+12V、+24V、-12V 等多路低压直流供电。

2. 控制与逻辑系统的信号分发

• 分发来自主控制器的数字/模拟信号到各功能模块；

• 提供光耦隔离、信号缓冲、状态指示等附加功能。

3. 工艺子系统集成接口

• 用于管理气路、温控、液路、RF 功率模块等关键子系统的供电与接口分布；

• 在模块化结构中作为背板或桥接平台存在。

英文资料：

The Tokyo Electron 2L80-004992-V2 Supply Board is a power/signal distribution module specifically designed for TEL semiconductor equipment, typically serving as a centralized supply platform for multiple power sources or signals within the system. This component is widely used in the electrical subsystems of etching, deposition, lithography and other equipment, and is an important basic unit to ensure the stable operation of the equipment.

1、 Product functional positioning

Module type: Power or Signal Supply Board

Main functions:

Branch, isolate, and stabilize the main power or signal source through this board before outputting it to each subsystem;

Implement functions such as power partition management, overcurrent protection, and signal channel switching;

It can be used in conjunction with control boards, interface boards, etc. to achieve logical control and centralized wiring.

2、 Typical application areas

1. Equipment power management system

Provide unified power supply for multiple sub modules (heaters, valve drivers, sensors, PLC boards, etc.);

Including multiple low-voltage DC power supplies such as+5V,+12V,+24V, -12V, etc.

2. Signal distribution for control and logic systems

Distribute digital/analog signals from the main controller to various functional modules;

Provide additional functions such as optocoupler isolation, signal buffering, and status indication.

3. Integration interface of process subsystem

Used to manage the power supply and interface distribution of key subsystems such as gas circuit, temperature control, liquid circuit, RF power module, etc;

It exists as a backplane or bridging platform in modular structures.

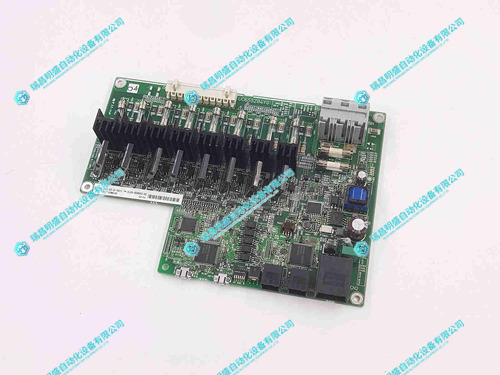

2.产      品      展      示
