1.产 品 资 料 介 绍：
TEL 3381-000136-15 接口模块产品特点
- TEL 原厂配套板卡，适配涂胶显影半导体设备主控机柜背板
- 集成多路 DI/DO 与模拟量通道，采集腔体传感器、阀门信号
- 光耦电气隔离电路，隔绝洁净车间射频电磁干扰
- 多层屏蔽 PCB 布线，降低通道信号串扰，传输无失真
- 集成过压、短路、静电三重硬件防护，避免板卡烧毁
- 板载多组状态指示灯，快速定位异常通道与线路故障
- 支持主控与腔体双向实时通讯，同步工艺时序信号
- 内置数据校验机制，保障流量、真空等工艺参数不丢失
- 工业级耐高温元器件，7×24 小时无尘车间连续稳定运行
- 插拔式标准板卡结构，拆装更换无需拆解整机腔体
- 三防绝缘涂层处理，适配恒温低尘半导体生产环境
- 专用锁紧连接器，抗震抗抖动，信号连接稳定不松动
- 原生兼容设备总线协议，可对接工厂 MES 管控系统
- 紧凑型板体尺寸，适配设备控制箱狭小安装仓位
- 出厂全通道信号校准，同型号替换参数一致性高TEL 3381-000136-15 接口模块是晶圆涂胶显影设备专用 I/O 信号转接板，抗干扰能力强，便于产线快速检修维护。
TEL 3381-000136-15 接口模块 产品英文
TEL 3381-000136-15 Interface Module Product Features
TEL original factory matching board, suitable for coating and developing semiconductor equipment main control cabinet backboard
Integrate multiple DI/DO and analog channels to collect signals from cavity sensors and valves
Optocoupler electrical isolation circuit, isolating clean workshop RF electromagnetic interference
Multi layer shielded PCB wiring reduces channel signal crosstalk and ensures distortion free transmission
Integrated triple hardware protection against overvoltage, short circuit, and static electricity to prevent board burnout
Onboard multiple sets of status indicator lights, quickly locate abnormal channels and circuit faults
Support bidirectional real-time communication between the main control and the cavity, synchronizing process timing signals
Built in data verification mechanism ensures that process parameters such as flow rate and vacuum are not lost
Industrial grade high-temperature resistant components, with a continuous and stable operation in a dust-free workshop 24/7
Plug in standard board structure, disassembly and replacement do not require dismantling the entire machine cavity
Three proof insulation coating treatment, suitable for constant temperature and low dust semiconductor production environment
Specialized locking connector, earthquake resistant and anti shake, stable signal connection without looseness
Native compatible device bus protocol, compatible with factory MES control system
Compact board size, suitable for narrow installation space of equipment control box
Factory full channel signal calibration, high consistency of replacement parameters for the same model
The TEL 3381-000136-15 interface module is a dedicated I/O signal adapter board for wafer coating and development equipment, with strong anti-interference ability and easy maintenance of the production line.

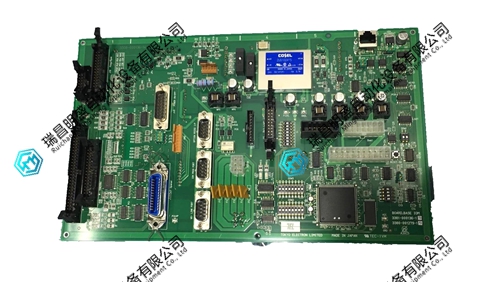

TEL 3381-000136-15 接口模块 产品展示
视频展示
