SANYO DENKI Q2AA08100DXP5B伺服电机

SANYO DENKI  Q2AA08100DXP5B伺服电机

1.产 品 资 料 介 绍：

1. 该型号属于山洋 Q2AA 系列伺服电机，额定功率对应 800W 级别，扭矩输出稳定，能满足贴标机、小型传送带等设备的动力需求。
2. 内置 2500 线增量式编码器，位置反馈精度高，配合伺服驱动器可实现 0.01mm 级的定位控制，适配精密组装场景。
3. 采用低惯量设计，启动与制动响应速度快，在需要频繁启停的设备中，能减少动作延迟，提升工作效率。
4. 机身防护等级达 IP65，外壳密封性好，能抵御粉尘和少量液体飞溅，适应车间等多尘环境的长期运行。
5. 适配电压为 AC200V，与工业通用供电系统兼容，接线时无需额外变压设备，安装便捷性强。
6. 运行时噪音低于 60 分贝，振动幅度小，能降低设备整体运行噪音，改善操作环境。
7. 常与山洋 RS 系列、PY 系列伺服驱动器配套使用，形成完整驱动系统，广泛用于电子组装、食品包装等自动化生产线。
8. 电机轴端采用标准键槽设计，可直接适配联轴器、同步轮等传动部件，无需定制特殊连接件。
9. 重量约 3.5kg，体积紧凑，能安装在空间受限的设备内部，适配小型化设备的布局需求。
10. 市场配件供应充足，轴承、编码器等易损件更换方便，日常维护只需定期检查连接线和清洁表面，成本较低。

 SANYO DENKI  Q2AA08100DXP5B伺服电机 英文资料：

SANYO DENKI Q2AA08100DXP5B is an AC servo motor in the Sanyo Q series that is suitable for small and medium power scenarios. It is known for its high cost-effectiveness and stable output, and is widely used in lightweight automation equipment. The following are its core features and practical information:

This model belongs to the Shanyang Q2AA series servo motor, with a rated power corresponding to 800W level and stable torque output, which can meet the power requirements of labeling machines, small conveyor belts and other equipment.

Built in 2500 line incremental encoder with high position feedback accuracy, coupled with servo drive to achieve 0.01mm level positioning control, suitable for precision assembly scenarios.

Adopting a low inertia design, the response speed of starting and braking is fast, which can reduce action delay and improve work efficiency in equipment that requires frequent start stop.

The body protection level reaches IP65, the shell has good sealing, can resist dust and a small amount of liquid splashing, and is suitable for long-term operation in dusty environments such as workshops.

The adapted voltage is AC200V, compatible with industrial general power supply systems, and does not require additional transformer equipment for wiring, making installation convenient.

During operation, the noise level is below 60 decibels, and the vibration amplitude is small, which can reduce the overall operating noise of the equipment and improve the operating environment.

Often used in conjunction with Shanyang RS series and PY series servo drives to form a complete drive system, it is widely used in automated production lines such as electronic assembly and food packaging.

The motor shaft end adopts a standard keyway design, which can directly adapt to transmission components such as couplings and synchronous wheels without the need for customized special connectors.

Weighing approximately 3.5kg and compact in size, it can be installed inside devices with limited space, meeting the layout requirements of miniaturized equipment.

The market has sufficient supply of accessories, making it easy to ｒｅｐｌａｃｅ vulnerable parts such as bearings and encoders. Daily maintenance only requires regular inspection of connecting wires and cleaning of surfaces, resulting in lower costs.

Conclusion: The above content covers the performance parameters, adaptation scenarios, and maintenance points of SANYO DENKI Q2AA08100DXP5B servo motor, which can provide practical reference for the selection and use of power components in lightweight automation equipment.

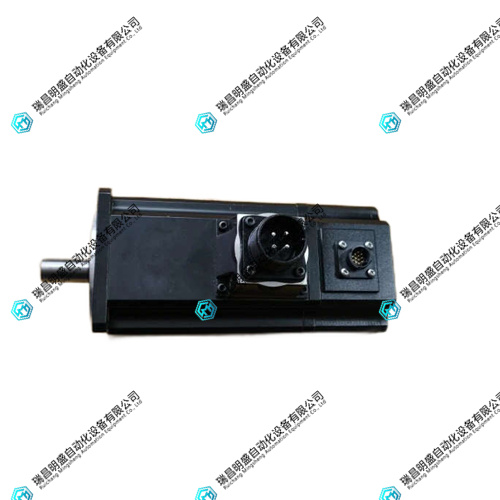

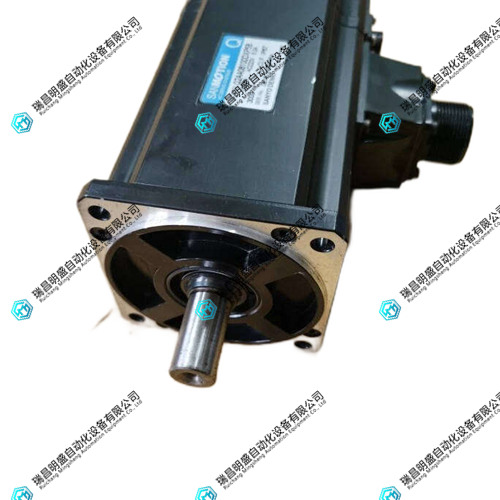

 SANYO DENKI  Q2AA08100DXP5B伺服电机 产品展示

 产品视频
