SANYO DENKI 65AA030VXR03伺服放大器卡

SANYO DENKI 65AA030VXR03伺服放大器卡

1.产 品 资 料 介 绍：

一、核心规格与电气特性

1. 功率适配：额定输出电流 3A，适配功率范围约数百瓦至 1.5kW（具体需结合电机参数匹配），满足小型自动化设备的动力控制需求。
2. 供电与控制：支持 AC200-230V 单相 / 三相输入，兼容脉冲指令（位置模式）、模拟量指令（速度 / 扭矩模式），可通过拨码开关或软件配置控制模式。
3. 保护功能：内置过流、过压、过载、电机过热、编码器异常等多重保护，故障发生时快速切断输出，避免设备损坏。

二、结构与安装优势

1. 紧凑型设计：采用卡式结构，体积小巧（参考尺寸：约 150×100×30mm），可直接安装于设备控制柜的 DIN 导轨或面板，节省安装空间。
2. 模块化布局：电源、控制、驱动电路分区设计，散热效率高，同时便于后期维护时的故障定位与部件更换。
3. 接线便捷：采用插拔式端子，动力线、控制线、编码器线接口清晰，标识明确，降低接线错误概率。

三、性能特点与适配场景

1. 精准控制：搭载高精度电流环与速度环控制算法，位置定位精度可达 ±0.01mm（配合高分辨率编码器），适合贴片机、小型数控机床、精密传送带等需要精密定位的设备。
2. 快速响应：电流响应带宽达 kHz 级别，电机启停、加速减速过程平稳，减少负载抖动，适配频繁启停的工况（如电子元件组装设备）。
3. 兼容性强：可适配 SANYO DENKI 及其他品牌的中小功率伺服电机（需匹配电机参数），也可与 PLC、运动控制器等上位设备无缝对接。
4. 低噪节能：采用正弦波 PWM 驱动技术，运行噪音低（≤60dB），同时降低电机铁损与铜损，提升系统能效。

 SANYO DENKI 65AA030VXR03伺服放大器卡 英文资料：

SANYO DENKI 65AA030VXR03 is a compact servo amplifier card designed specifically for controlling small and medium power servo motors. The following will explain its core parameters, performance characteristics, adaptation scenarios, and practical points:

1、 Core specifications and electrical characteristics

Power adaptation: The rated output current is 3A, and the adaptive power range is about several hundred watts to 1.5 kW (specific needs to be matched with motor parameters), meeting the power control requirements of small automation equipment.

Power Supply and Control: Supports AC200-230V single-phase/three-phase input, compatible with pulse commands (position mode) and analog commands (speed/torque mode), and can be controlled through dip switches or software configuration.

Protection function: Built in multiple protections such as overcurrent, overvoltage, overload, motor overheating, encoder abnormality, etc., quickly cut off the output when a fault occurs to avoid equipment damage.

2、 Structural and installation advantages

Compact design: adopting a card structure, with a small volume (reference size: about 150 × 100 × 30mm), it can be directly installed on the DIN rail or panel of the equipment control cabinet, saving installation space.

Modular layout: power, control, and drive circuit partition design, high heat dissipation efficiency, and easy fault location and component replacement during later maintenance.

Convenient wiring: Adopting plug-in terminals, the interfaces of power lines, control lines, and encoder lines are clear and labeled, reducing the probability of wiring errors.

3、 Performance characteristics and adaptation scenarios

Precise control: Equipped with high-precision current loop and speed loop control algorithms, the position positioning accuracy can reach ± 0.01mm (with high-resolution encoder), suitable for equipment that requires precise positioning such as surface mount machines, small CNC machine tools, and precision conveyor belts.

Fast response: The current response bandwidth reaches kHz level, ensuring smooth motor start stop, acceleration and deceleration processes, reducing load shaking, and adapting to frequent start stop conditions (such as electronic component assembly equipment).

Strong compatibility: It can adapt to SANYO DENKI and other brands of small and medium power servo motors (motor parameters need to be matched), and can also seamlessly integrate with upper level devices such as PLCs and motion controllers.

Low noise and energy-saving: Adopting sine wave PWM driving technology, the operating noise is low (≤ 60dB), while reducing motor iron and copper losses, improving system energy efficiency.

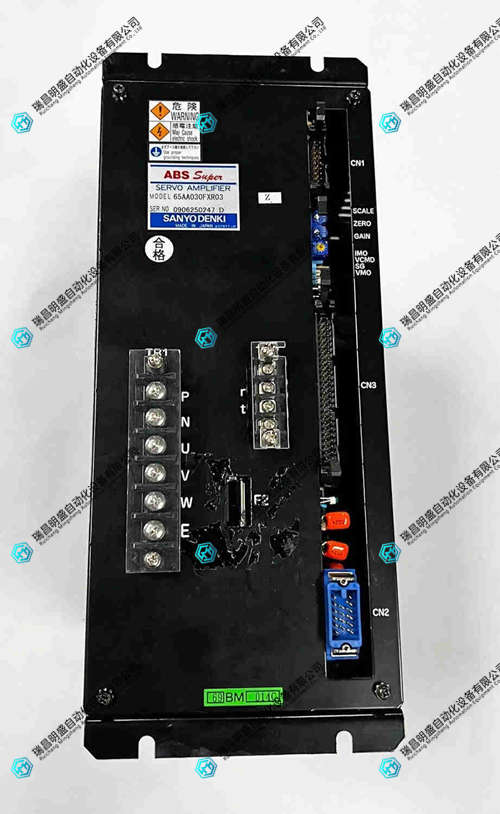

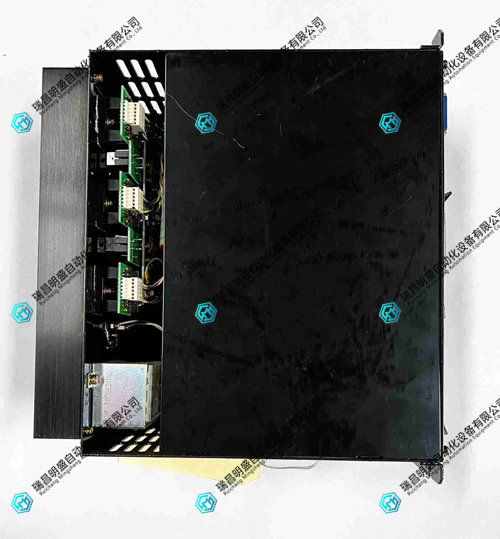

 SANYO DENKI 65AA030VXR03伺服放大器卡 产品展示
