SANYO DENKI P20B13500HXSH6交流电伺服电机

SANYO DENKI P20B13500HXSH6交流电伺服电机

1.产 品 资 料 介 绍：

1. 核心规格参数
   • 动力与电气参数：参考同系列相近型号 P20B13600HXSH6E 的参数可推测，该电机额定输出功率大概率为 6KW，适配 200V 交流电源，额定转速 3000 转 / 分钟，能满足中重载工况下的持续动力输出需求。作为 P2 系列机型，它延续了该系列适配 PY2 型号伺服驱动器的特性，可借助驱动器实现精准的转速与转矩控制。
   • 机械结构参数：从系列通用设计来看，其法兰尺寸为 130mm，属于大功率伺服电机常见的大尺寸法兰规格，能保障安装后的结构稳定性。机身整体偏重，适配需要稳固安装的工业设备，输出轴尺寸、长度等机械细节与同系列 6KW 级别机型保持一致性，便于配件通用与替换。
2. 系列特性与适配优势
   • 性能特性：P2 系列伺服电机普遍具备高响应特性，搭配山洋高分辨率编码器后，可实现高精度位置反馈，契合数控机床、工业机器人等设备对定位精度的严苛要求。同时该系列电机的结构设计能适配频繁启停工况，动力输出平顺，减少负载运行时的抖动问题。
   • 适配灵活性：适配的 PY2 系列伺服驱动器体积紧凑，相比前代缩小 40%-55%，且支持背板和面板两种安装方式，能减少电机与驱动器组合后的安装空间占用，还便于后期维护时的接线与调试操作。
3. 市场流通与应用场景
   • 流通情况：该型号及后缀版本在阿里巴巴、国际工业配件平台均有流通，多以二手或全新议价形式销售，二手款质保期多为 3 个月，全新款价格较高，如同系列 P20B13600HXSH6E 全新品报价达 5769.23 美元，而二手同款报价低至 576 美元，价格差异受成色和功能完整性影响较大。
   • 典型应用：凭借 6KW 级别的大功率输出，常用于数控机床的主轴驱动、大型包装机械的传动机构、半导体生产设备的重载输送单元等场景，也可适配工业机器人的重载关节驱动，为设备的高精度、高稳定性运行提供动力支撑

 SANYO DENKI P20B13500HXSH6交流电伺服电机  英文资料：

SANYO DENKI P20B13500HXSH6 belongs to the Shanyang P2 series high-power AC servo motor. Common versions with the suffix "E" (such as P20B13500HXSH6E) focus on strong power output and stable transmission, adapting to the precision drive requirements of medium and large automation equipment. Combined with the same series parameters and market circulation information, its core details are summarized as follows:

Core specification parameters

Power and electrical parameters: Referring to the parameters of the similar model P20B1360HXSH6E in the same series, it can be inferred that the rated output power of the motor is approximately 6KW, compatible with a 200V AC power supply, with a rated speed of 3000 revolutions per minute, which can meet the continuous power output requirements under medium and heavy load conditions. As a P2 series model, it continues the characteristics of the PY2 servo drive adapted to this series, and can achieve precise speed and torque control with the help of the drive.

Mechanical structural parameters: From the perspective of the series universal design, its flange size is 130mm, which is a common large-sized flange specification for high-power servo motors and can ensure structural stability after installation. The overall body is heavy and suitable for industrial equipment that requires stable installation. The mechanical details such as output shaft size and length are consistent with the same series of 6KW level models, making it easy to use and ｒｅｐｌａｃｅ accessories.

Series features and adaptation advantages

Performance characteristics: P2 series servo motors generally have high response characteristics. When paired with Shanyang high-resolution encoders, they can achieve high-precision position feedback, meeting the strict requirements for positioning accuracy of CNC machine tools, industrial robots and other equipment. At the same time, the structural design of this series of motors can adapt to frequent start stop working conditions, with smooth power output and reduced vibration problems during load operation.

Flexibility of adaptation: The PY2 series servo drive is compact in size, reduced by 40% -55% compared to the previous generation, and supports two installation methods: backplate and panel. It can reduce the installation space occupied by the combination of motor and driver, and also facilitate wiring and debugging operations during later maintenance.

Market Circulation and Application Scenarios

Circulation situation: This model and its suffix version are circulated on Alibaba and international industrial parts platforms, mostly sold in second-hand or brand new negotiated forms. The warranty period for second-hand models is usually 3 months, and the price of the new model is relatively high. For example, the price of the P20B1360HXSH6E series is as low as 5769.23 US dollars, while the price of the same second-hand model is as low as 576 US dollars. The price difference is greatly affected by the condition and functional integrity.

Typical applications: With a high-power output of 6KW, it is commonly used in spindle drive of CNC machine tools, transmission mechanisms of large packaging machinery, heavy-duty conveying units of semiconductor production equipment, and can also be adapted to heavy-duty joint drive of industrial robots, providing power support for high-precision and high stability operation of equipment

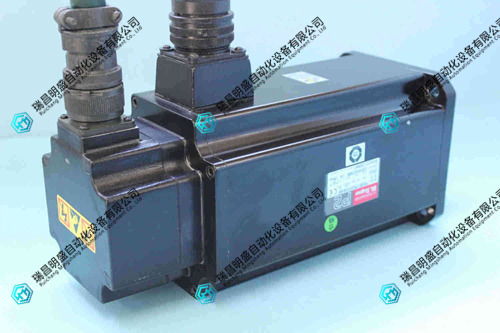

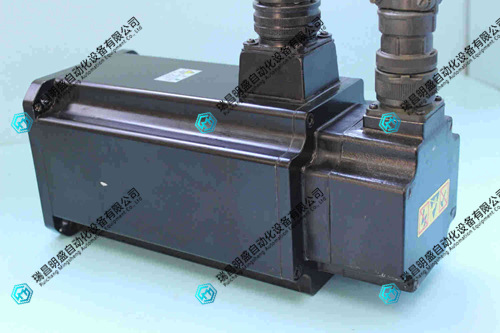

 SANYO DENKI P20B13500HXSH6交流电伺服电机  产品展示
