SANYO DENKI R2AA06040FCP00伺服电机

SANYO DENKI  R2AA06040FCP00伺服电机

1.产 品 资 料 介 绍：

1. 额定功率 400W，适配 200V 交流电，额定电流 2.8A，能稳定输出 1.27N・m 额定扭矩，峰值扭矩可达 4.8N・m，满足中负载精密传动需求。
2. 自带 24V 直流制动功能，设备停机或断电时可快速锁止电机轴，避免负载因惯性位移，特别适合垂直运动机构和高精度定位工位。
3. 搭载 17 位编码器，定位分辨率达 131072 分割 / 转，能精准反馈转子位置，配合驱动器实现微米级定位控制。
4. 额定转速 3000 转 / 分钟，最高转速可达 6000 转 / 分钟，转子转动惯量 415.3g・cm²，启停响应快，适合高频动作的自动化场景。
5. 机械结构紧凑，法兰尺寸 60mm，机身长度 123.5mm，输出轴直径 14mm、轴长 25mm，重量约 1.4-1.8kg，适配空间受限的设备布局。
6. 工作温度范围 0-40℃，能适应常规工业车间环境，防护性能可应对粉尘、轻微振动等常见工况。
7. 适配山洋 RS1A03AA 等型号驱动器，兼容性强，也可与部分通用型伺服驱动器匹配，选型替换灵活。
8. 常见带后缀 “M” 的版本（如 R2AA06040FCP00M），属于同系列标准款，符合 RoHS 标准，品质有稳定保障。
9. 广泛应用于 SMT 贴片机、半导体检测设备、小型数控机床、包装机械等，是精密传动场景的高性价比选择。
10. 日常维护简单，常见故障多为制动组件磨损、编码器接线松动，配件供应充足，通过测量制动电压、检查线路即可快速排查。

 SANYO DENKI R2AA06040FCP00伺服电机 英文资料：

SANYO DENKI R2AA06040FCP00 is a Sanyo SANMOTION R series medium inertia AC servo motor with brakes. With 400W power and high-precision control as its core advantages, it is widely used in precision automation equipment. The following are practical points to summarize:

Rated power of 400W, compatible with 200V AC power, rated current of 2.8A, capable of stable output of 1.27N · m rated torque, peak torque can reach 4.8N · m, meeting the requirements of medium load precision transmission.

Equipped with 24V DC braking function, it can quickly lock the motor shaft when the equipment is stopped or powered off, avoiding load displacement due to inertia. It is particularly suitable for vertical motion mechanisms and high-precision positioning stations.

Equipped with a 17 bit encoder, the positioning resolution reaches 131072 segments/rotation, which can accurately feedback the rotor position and achieve micrometer level positioning control in conjunction with the driver.

The rated speed is 3000 revolutions per minute, and the maximum speed can reach 6000 revolutions per minute. The rotor has a moment of inertia of 415.3g · cm ², with fast start stop response, suitable for automation scenarios with high-frequency actions.

Compact mechanical structure, flange size 60mm, body length 123.5mm, output shaft diameter 14mm, shaft length 25mm, weight approximately 1.4-1.8kg, suitable for equipment layouts with limited space.

The working temperature range is 0-40 ℃, which can adapt to the conventional industrial workshop environment, and the protective performance can cope with common working conditions such as dust and slight vibration.

Suitable for Shanyang RS1A03AA and other models of drivers, with strong compatibility, and can also be matched with some universal servo drives, with flexible selection and replacement.

Common versions with the suffix "M" (such as R2AA06040FCP00M) belong to the same series of standard models, comply with RoHS standards, and have stable quality assurance.

Widely used in SMT surface mount machines, semiconductor testing equipment, small CNC machine tools, packaging machinery, etc., it is a cost-effective choice for precision transmission scenarios.

Daily maintenance is simple, and common faults are often brake component wear and loose encoder wiring. The supply of accessories is sufficient, and quick troubleshooting can be achieved by measuring the brake voltage and checking the circuit.

Conclusion: The above information focuses on the core performance, adaptation scenarios, and maintenance points of the motor, which can provide practical references for equipment selection, installation, and debugging.

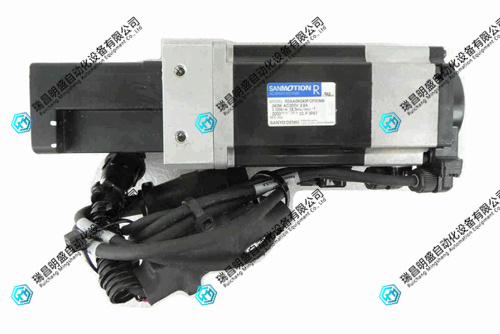

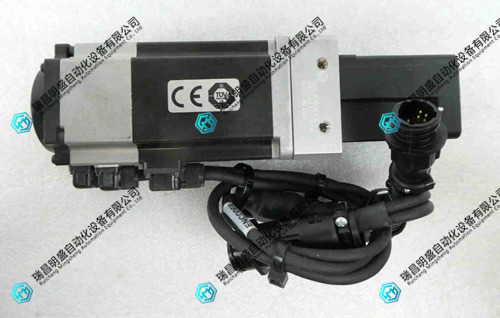

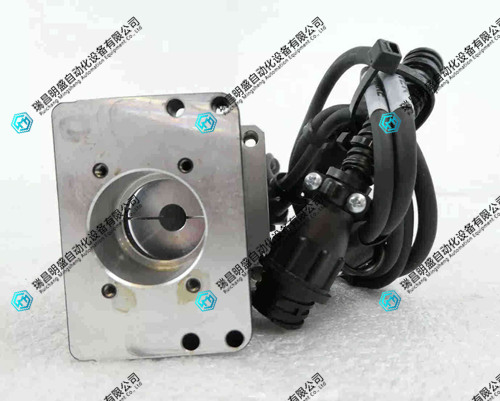

 SANYO DENKI R2AA06040FCP00伺服电机  产品展示
