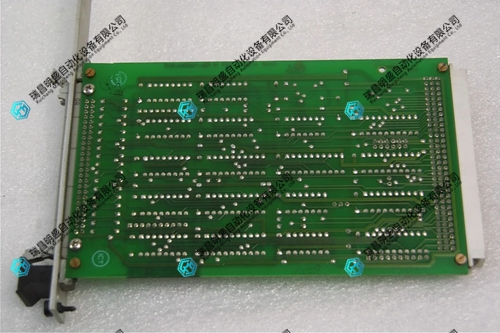

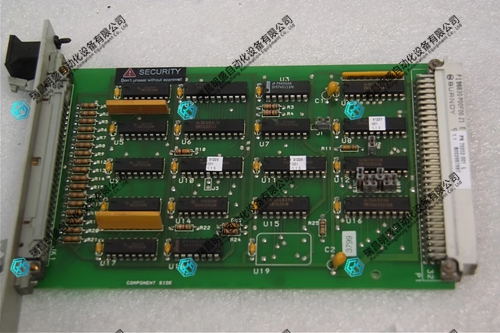

XYCOM XVME-202控制器模块

XYCOM XVME-202控制器模块

1.产 品 资 料 介 绍：

1. 单槽 3U 高度，完全兼容 VMEbus IEEE 1014 标准，适配标准 VME 机箱。
2. 核心功能：实现 VME 主机对 PAMUX 远程 I/O 子系统的集中控制与数据交互。
3. 单模块最多可寻址 16 个 PAMUX 单元，总 I/O 点容量达 512 点。
4. 采用 50 芯扁平电缆连接 PAMUX 设备，传输距离最长支持 500 英尺（约 152 米）。
5. 板载终端电阻，无需外部匹配，简化长距离布线与信号完整性设计。
6. 占用 VME 短 I/O 地址空间 1K 块，通过 6 位跳线可在 64 个 1K 边界中选择基地址。
7. 内置寄存器组，支持 PAMUX 通道配置、状态读取、数据读写与中断管理。
8. PAMUX 总线为 8 位宽度，每个 PAMUX 单元提供 32 点 I/O，支持数字 / 模拟混合扩展。
9. PAMUX 智能 I/O 板支持菊花链级联，大幅提升系统 I/O 扩展灵活性。
10. 支持 VME 中断机制，可将 PAMUX 设备的事件 / 故障上报至 VME 主机。
11. 供电为标准 VME +5VDC，典型功耗低，适配工业现场供电环境。
12. 工业级宽温设计，工作温度 0℃～65℃，存储温度 -40℃～85℃。
13. 硬件级信号缓冲与驱动，保障长距离传输的稳定性与抗干扰能力。
14. 模块化、无本地 CPU 设计，依赖 VME 主机完成逻辑运算，降低本地故障点。
15. 专为老旧工业控制系统升级、分布式 I/O 扩展、远程设备监控场景优化。

XYCOM XVME-202控制器模块  英文资料：

XVME-202 is a dedicated controller for PAMUX distributed I/O systems under the VMEbus architecture, responsible for high-speed communication and address management between VME hosts and remote PAMUX intelligent I/O boards, designed specifically for industrial distributed control scenarios.

Single slot 3U height, fully compatible with VMEbus IEEE 1014 standard, compatible with standard VME chassis.

Core function: Implement centralized control and data exchange of remote I/O subsystem of PAMUX by VME host.

A single module can address up to 16 PAMUX units, with a total I/O point capacity of 512 points.

Using a 50 core flat cable to connect PAMUX devices, the transmission distance supports up to 500 feet (approximately 152 meters).

Onboard terminal resistor, no external matching required, simplifies long-distance wiring and signal integrity design.

Occupying 1K blocks of VME short I/O address space, the base address can be selected from 64 1K boundaries through a 6-bit jumper.

Built in register group, supporting PAMUX channel configuration, status reading, data reading and writing, and interrupt management.

The PAMUX bus is 8-bit wide, with each PAMUX unit providing 32 I/O points and supporting mixed digital/analog expansion.

PAMUX intelligent I/O board supports daisy chain cascading, greatly improving the flexibility of system I/O expansion.

Support VME interrupt mechanism, which can report events/failures of PAMUX devices to the VME host.

The power supply is standard VME+5VDC, with typical low power consumption, suitable for industrial site power supply environment.

Industrial grade wide temperature design, working temperature range of 0 ℃ to 65 ℃, storage temperature range of -40 ℃ to 85 ℃.

Hardware level signal buffering and driving ensure the stability and anti-interference ability of long-distance transmission.

Modular, no local CPU design, relying on VME host to complete logical operations, reducing local failure points.

Specially designed for upgrading old industrial control systems, expanding distributed I/O, and optimizing remote device monitoring scenarios.

Application: Factory automation, process control, remote data collection, distributed safety interlocking, I/O expansion of old VME systems.
