Xycom XVME-203计数器模块

Xycom XVME-203计数器模块

1.产 品 资 料 介 绍：

1. 采用 3U 单高 Eurocard 尺寸，兼容 VMEbus IEEE 1014 Rev. C.1 标准。
2. 搭载 2 片 AM9513A 定时器 / 计数器，提供 10 路 16 位独立计数通道。
3. 最高计数频率 5 MHz，支持单脉冲、双脉冲与 AB 正交计数模式。
4. 内置 4 路正交解码电路，可同时接入 4 台增量式编码器。
5. 正交模式支持四倍频，最高等效计数速率达 20 MHz。
6. 提供 8 路可编程输出通道，支持频率输出、单脉冲、分频与脉冲生成。
7. 集成 AM9519A 中断控制器，提供 8 路中断通道，支持 7 级 VME 中断。
8. 中断可配置为全局共用向量或单通道独立向量，适配多任务系统。
9. 输入为源极型（SRC），低电平电流 -200 μA，高电平 +20 μA。
10. 输出驱动能力：高电平 +24 mA，低电平 -15 mA，可直接驱动外部电路。
11. 供电为 +5 V DC，典型功耗 1.6 A，最大 1.8 A。
12. 工作温度 0–70°C，湿度 5%–95% RH（非凝结），工业级可靠性。
13. 支持 A16/D08 (0) VME 从机模式，基地址可通过跳线配置。
14. 具备计数方向、溢出 / 下溢、比较匹配等状态监测与触发功能。
15. 适用于编码器位置反馈、高速脉冲计数、运动控制、频率测量与定时触发场景。

Xycom XVME-203计数器模块  英文资料：

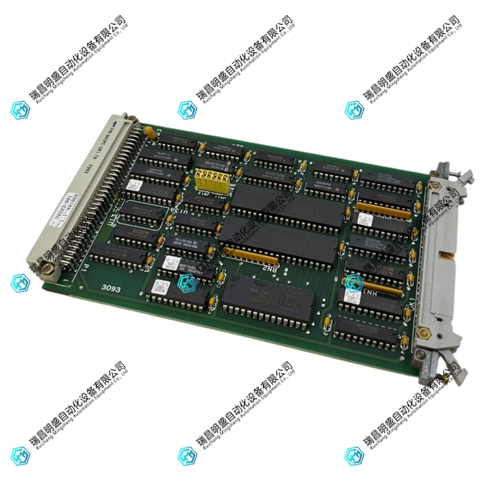

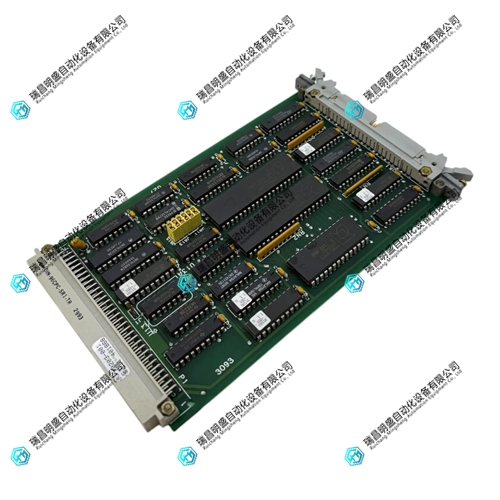

XVME-203 is a 3U single slot high-speed counter module based on the VMEbus architecture, integrating dual AM9513A chips. It is designed specifically for encoder, pulse counting, position measurement, and motion control scenarios, and supports orthogonal decoding and programmable interrupts.

Adopting a 3U single height Eurocard size, compatible with the VMEbus IEEE 1014 Rev. C1 standard.

Equipped with 2 AM9513A timers/counters, providing 10 independent 16 bit counting channels.

The maximum counting frequency is 5 MHz, supporting single pulse, double pulse, and AB orthogonal counting modes.

Built in 4-channel orthogonal decoding circuit, capable of simultaneously connecting 4 incremental encoders.

Orthogonal mode supports fourth harmonic generation, with a maximum equivalent counting rate of 20 MHz.

Provide 8 programmable output channels, supporting frequency output, single pulse, frequency division, and pulse generation.

Integrated AM9519A interrupt controller, providing 8 interrupt channels and supporting 7-level VME interrupts.

Interrupts can be configured as global shared vectors or single channel independent vectors, suitable for multitasking systems.

The input is source type (SRC), with a low-level current of -200 μ A and a high-level current of+20 μ A.

Output driving capability: High level+24 mA, low level -15 mA, can directly drive external circuits.

The power supply is+5 V DC, with a typical power consumption of 1.6 A and a maximum of 1.8 A.

Working temperature 0-70 ° C, humidity 5% -95% RH (non condensing), industrial grade reliability.

Supports A16/D08 (0) VME slave mode, and the base address can be configured through jumper wires.

It has status monitoring and triggering functions such as counting direction, overflow/underflow, and comparison matching.

Suitable for encoder position feedback, high-speed pulse counting, motion control, frequency measurement, and timing triggering scenarios.
