XYCOM XVME-212可编程扫描仪模块

XYCOM  XVME-212可编程扫描仪模块

1.产 品 资 料 介 绍：

1. 32 路独立数字输入通道：单模块实现多路离散信号并行采集。
2. 可编程状态扫描：自动检测通道电平变化，无需主机持续轮询。
3. 状态变化中断触发：信号跳变时主动向 VME 主机发送中断。
4. 通道级光耦隔离：300 VDC 通道间及通道与总线地隔离，抗干扰强。
5. 输入防抖动电路：8 档跳线可选防抖时间，适配机械触点。
6. 反向偏压保护：50 VDC 反向电压保护，提升输入可靠性。
7. 宽电压输入（/1 版）：支持 10–50 VDC 工业电平信号。
8. TTL 电平输入（/2 版）：最大 6.5 V，无板载 12 V 电源。
9. 板载隔离 12 V 电源（/1 版）：为外部无源触点供电。
10. 1K 地址空间：VME 总线分配独立 I/O 块，便于编程控制。
11. NEXP 标准尺寸：160 mm × 233.4 mm，适配标准 VME 机箱。
12. 工业级环境耐受：5–95% RH 非凝露，适应恶劣工控场景。
13. 多模块级联扩展：支持多块同插 VME 背板，扩展采集通道。
14. 状态寄存器可读：实时读取各通道电平与故障状态。
15. 适配机械触点接口：专为按钮、开关、继电器触点设计。

XYCOM  XVME-212可编程扫描仪模块   英文资料：

XVME-212 is a VME bus 32 channel programmable digital input scanner module launched by XYCOM, used for status acquisition and change detection of digital signals such as switches, buttons, relay contacts, etc. in industrial fields. It supports interrupt notification and reduces the polling burden on the host.

32 independent digital input channels: a single module realizes parallel acquisition of multiple discrete signals.

Programmable state scanning: automatically detects channel level changes without the need for continuous polling by the host.

State change interrupt trigger: When the signal jumps, actively send an interrupt to the VME host.

Channel level optocoupler isolation: 300 VDC isolation between channels and between channels and bus ground, strong anti-interference.

Input anti shake circuit: 8-speed jumper with optional anti shake time, compatible with mechanical contacts.

Reverse bias protection: 50 VDC reverse voltage protection enhances input reliability.

Wide voltage input (version 1): Supports 10-50 VDC industrial level signals.

TTL level input (version 2): maximum 6.5 V, no onboard 12 V power supply.

Onboard isolated 12V power supply (version 1): Provides power to external passive contacts.

1K address space: VME bus allocates independent I/O blocks for easy programming and control.

NEXP standard size: 160 mm x 233.4 mm, compatible with standard VME chassis.

Industrial grade environmental tolerance: 5-95% RH non condensing, suitable for harsh industrial control scenarios.

Multi module cascading expansion: supports multiple VME backboards to be plugged in together, expanding the acquisition channels.

Status register readable: Real time reading of channel levels and fault status.

Adapt to mechanical contact interfaces: specifically designed for button, switch, and relay contacts.

XVME-212, with its interrupt driven, high isolation, and anti shake design, has become a classic module for digital input acquisition in VME systems. It is widely used in industrial automation, power monitoring, rail transit, and other scenarios. The/1 and/2 versions can meet different levels and power supply needs.

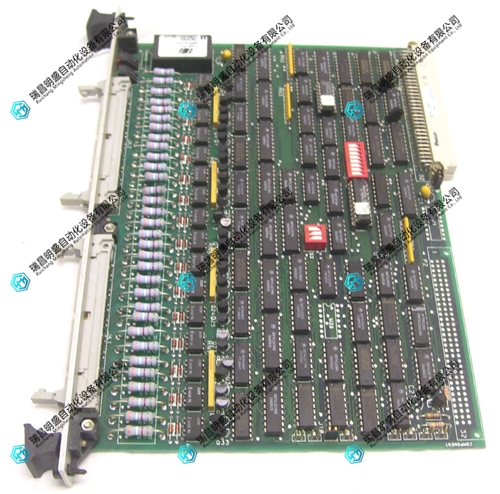

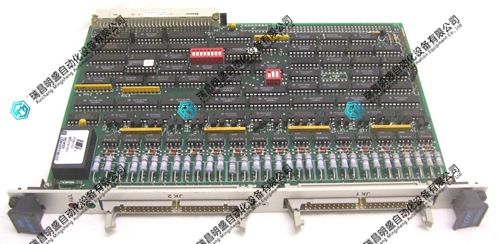

XYCOM  XVME-212可编程扫描仪模块   产品展示
