1.产 品 资 料 介 绍：
- 采用 6U 双槽 VME 总线架构，兼容标准 VME 机箱与背板。
- 集成 80 路 TTL 电平 I/O 通道，分为 8 组 10 位可编程端口。
- 64 路通道组成 8 个字节宽双向端口，可独立编程为输入或输出。
- 每通道支持边沿触发中断，信号变化时主动通知主机。
- 单通道最大电流 20 mA，适配 TTL 电平设备驱动。
- 占用 1K 字节 VME 短 I/O 地址空间，便于系统寻址。
- 板载状态 / 控制寄存器，支持实时配置与状态监控。
- 内置 Pass/Fail 指示灯，快速诊断模块运行状态。
- 支持多模块级联，灵活扩展 I/O 通道数量。
- 兼容 XYCOM 标准 I/O 架构，可与 XVME-202、XVME-244 等模块协同工作。
- 工业级宽温设计，工作温度 -40°C 至 +85°C。
- 符合 IEC 60068 抗振动 / 冲击标准，适应恶劣工控环境。
- 满足 IEC 61000 电磁兼容要求，抗干扰能力强。
- 由 VME 总线 +5V 供电，典型功耗约 5W。
- 广泛应用于自动化产线、过程控制、设备监测与数据采集场景。

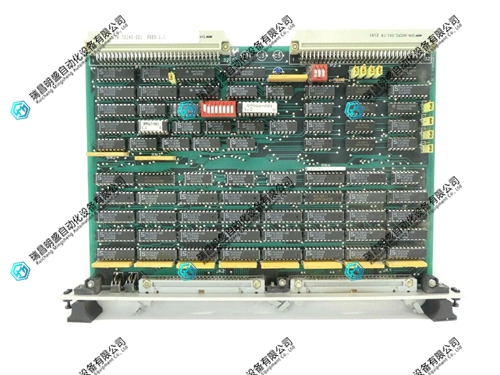

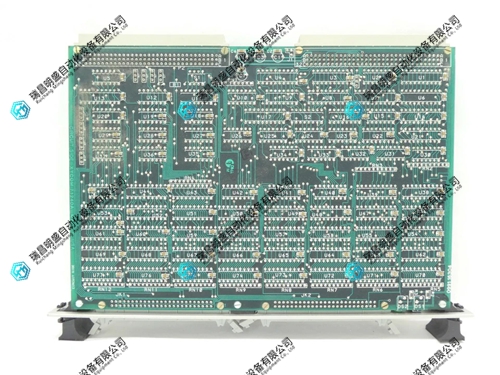

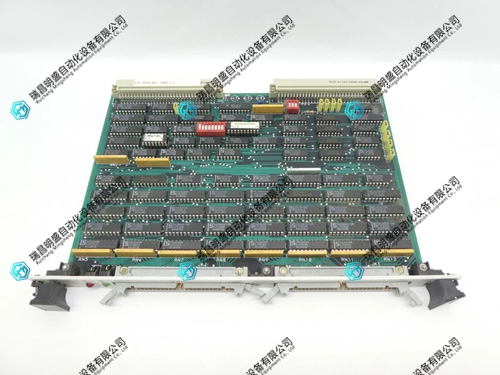

Xycom XVME-240数字输入/输出模块 英文资料：
XVME-240 is a 6U dual slot VME bus TTL digital I/O module launched by Xycom, providing 80 programmable bidirectional channels, designed specifically for high-speed digital signal acquisition and control in industrial automation, DCS, and SCADA systems.
Adopting a 6U dual slot VME bus architecture, compatible with standard VME chassis and backplanes.
Integrate 80 TTL level I/O channels, divided into 8 groups of 10 bit programmable ports.
64 channels form 8 byte wide bidirectional ports, which can be independently programmed as input or output.
Each channel supports edge triggered interrupts and actively notifies the host when the signal changes.
Single channel maximum current of 20 mA, compatible with TTL level device drivers.
Occupy 1K bytes of VME short I/O address space for easy system addressing.
Onboard status/control registers, supporting real-time configuration and status monitoring.
Built in Pass/Tail indicator light for quick diagnosis of module operation status.
Support multi module cascading and flexibly expand the number of I/O channels.
Compatible with XYCOM standard I/O architecture, it can work in conjunction with modules such as XVME-202 and XVME-244.
Industrial grade wide temperature design, operating temperature range of -40 ° C to+85 ° C.
Compliant with IEC 60068 anti vibration/shock standards, suitable for harsh industrial control environments.
Meets the electromagnetic compatibility requirements of IEC 61000 and has strong anti-interference ability.
Powered by VME bus+5V, the typical power consumption is about 5W.
Widely used in automated production lines, process control, equipment monitoring, and data acquisition scenarios.
XVME-240, with its high-density, programmable, and interrupt driven characteristics, has become a classic solution for digital I/O control in VME systems, suitable for industrial applications that require a large amount of TTL signal interaction.
